Parts Location: Illustration

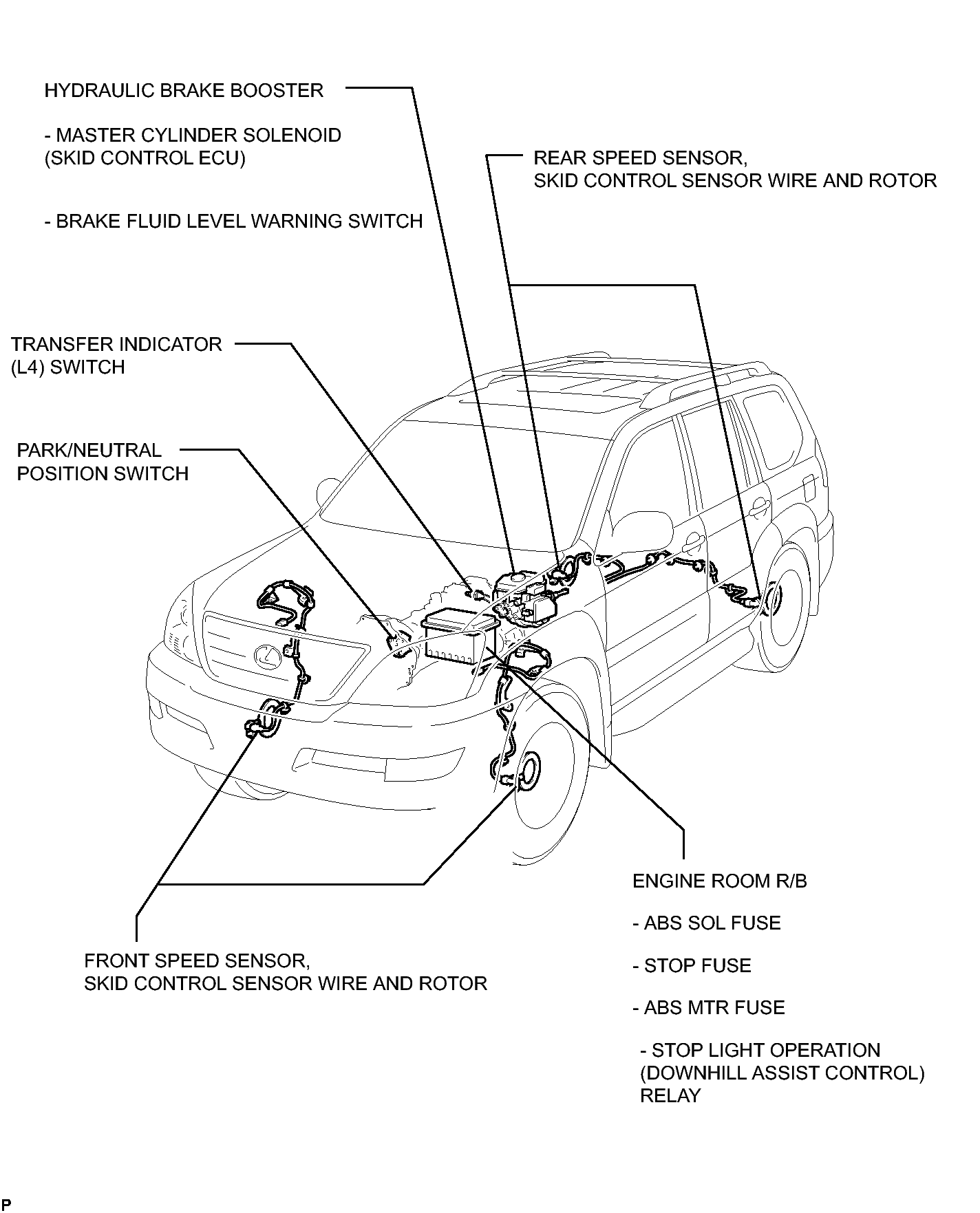

Fig 1: Identifying Vehicle Stability Control System Replacement Components (1 Of 2)
GTY112480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

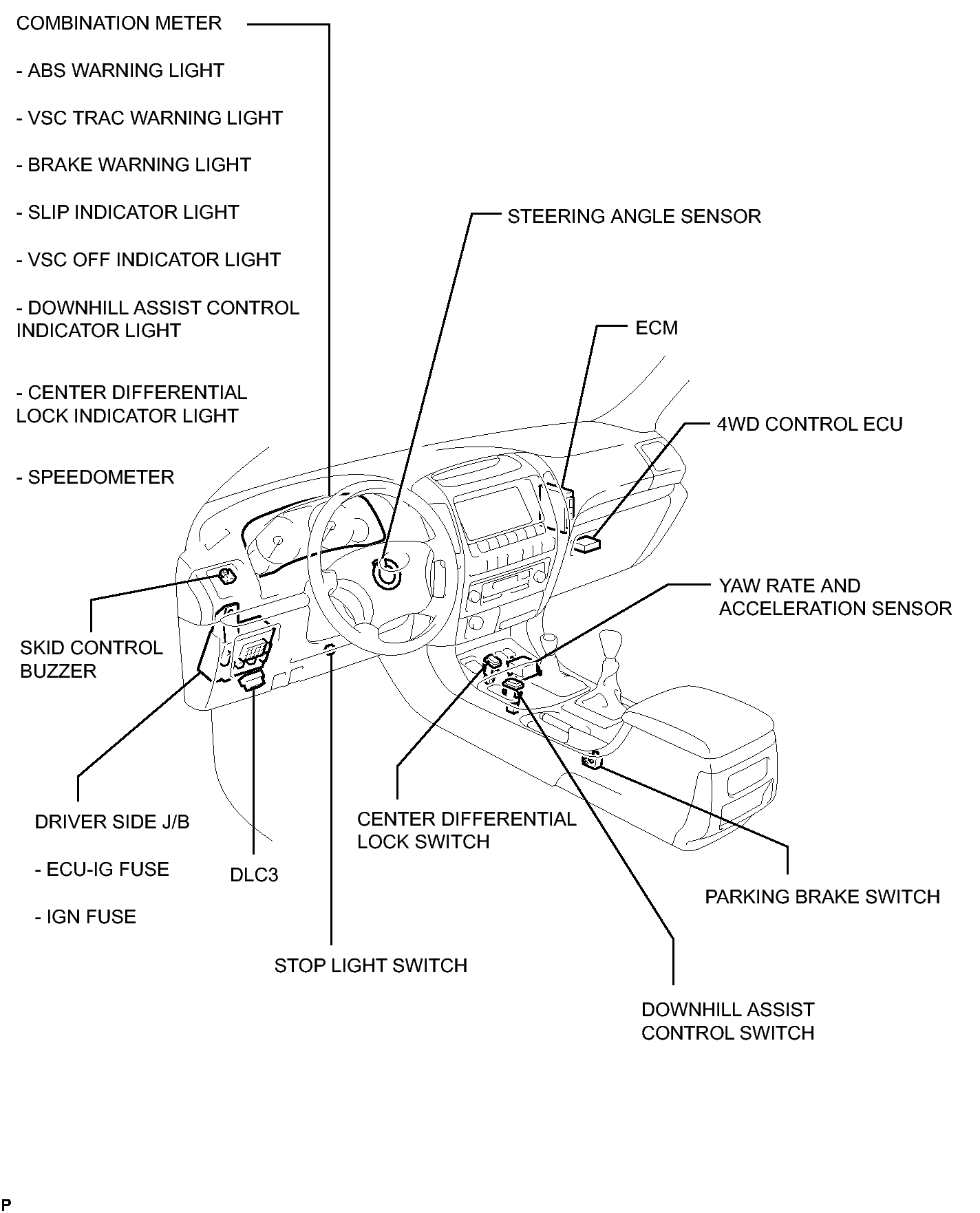

Fig 1: Identifying Vehicle Stability Control System Replacement Components (2 Of 2)
GTY143605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
