Condenser Fan: Notes

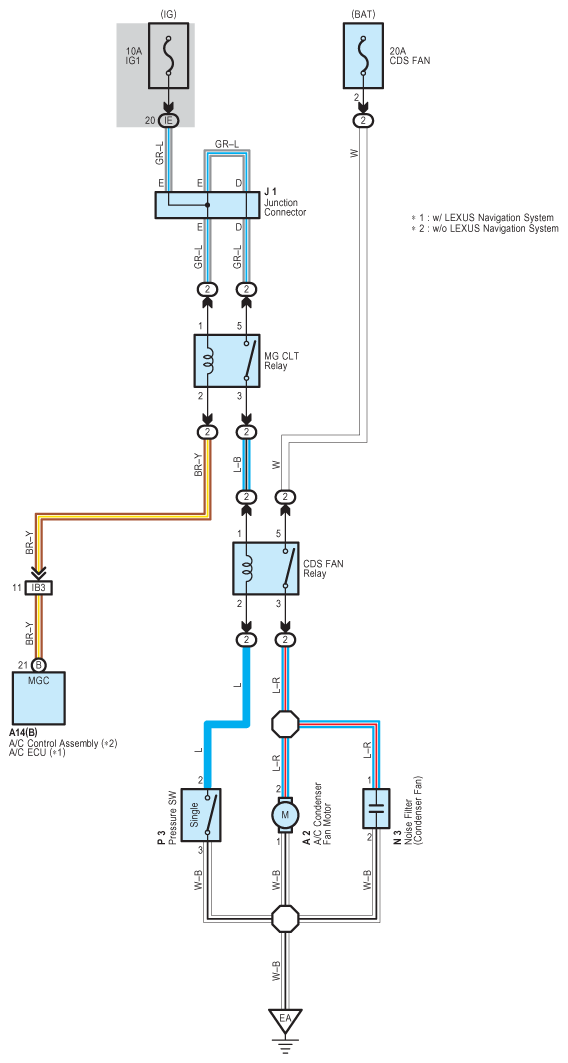

Fig 1: Condenser Fan - Circuit Diagram

G07619962

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
