Multiplex Communication System (CAN): Notes

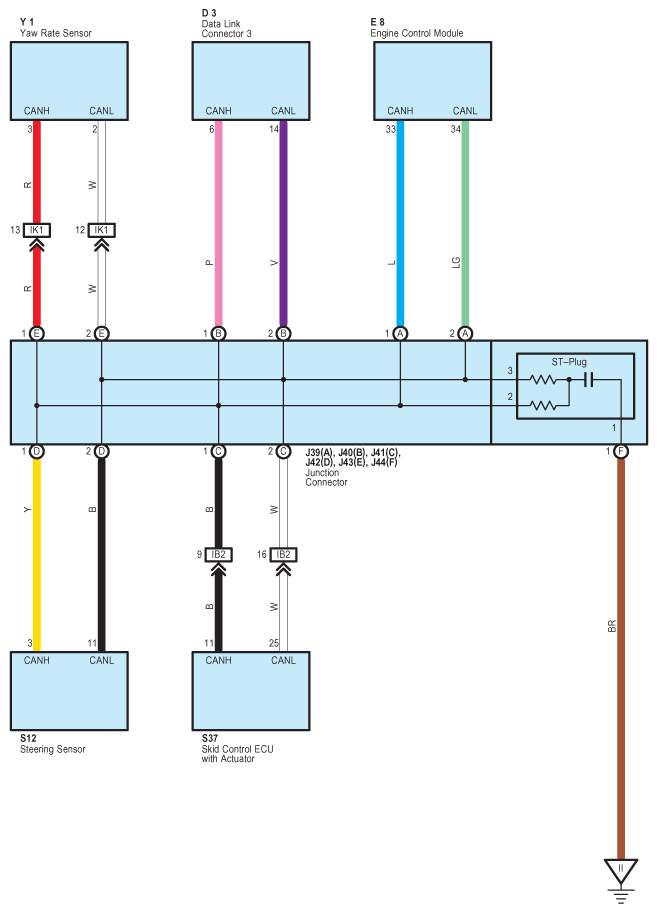

Fig 1: Multiplex Communication System (CAN) - Circuit Diagram
G07619811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
