Lexus
›
2009
›
GX 470
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Rear Wiper and Washer
›
Notes
Rear Wiper and Washer: Notes

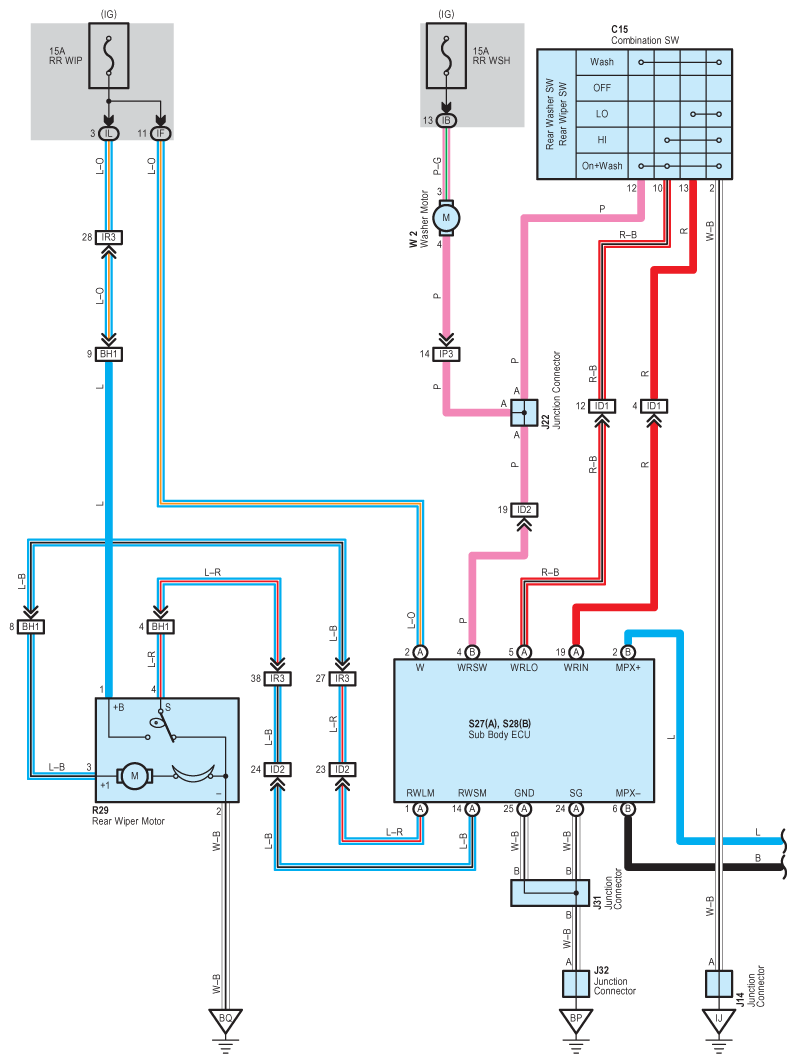

Fig 1: Rear Wiper And Washer - Circuit Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

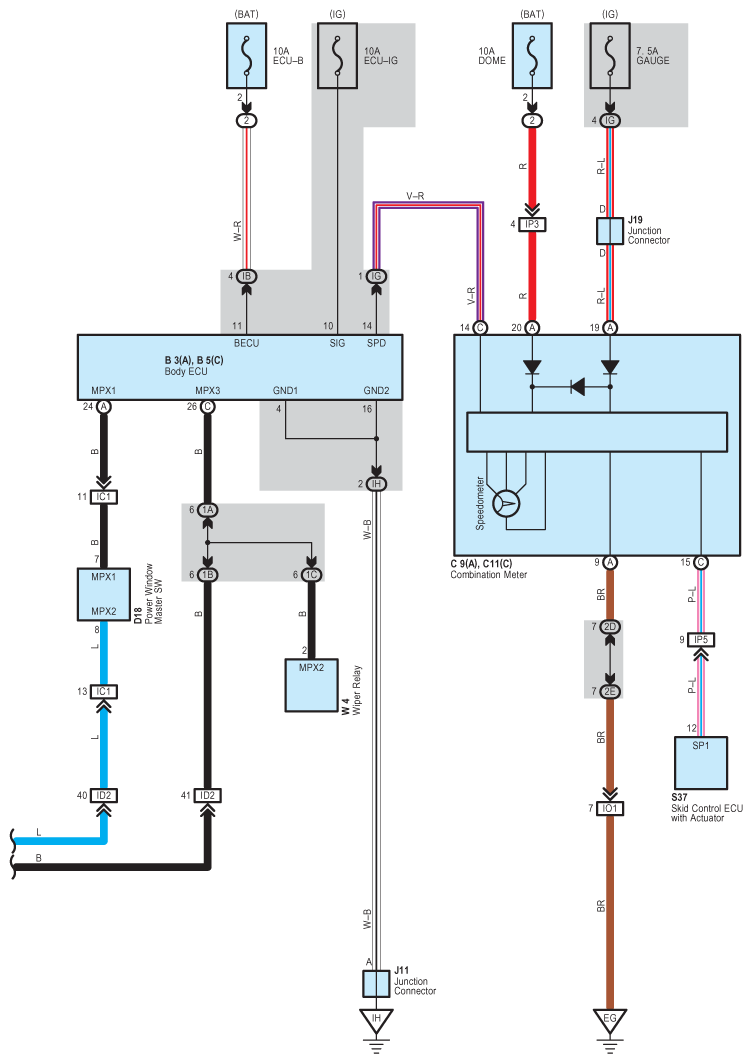

Fig 2: Rear Wiper And Washer - Circuit Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
