Fuel Pump: Components: Illustration

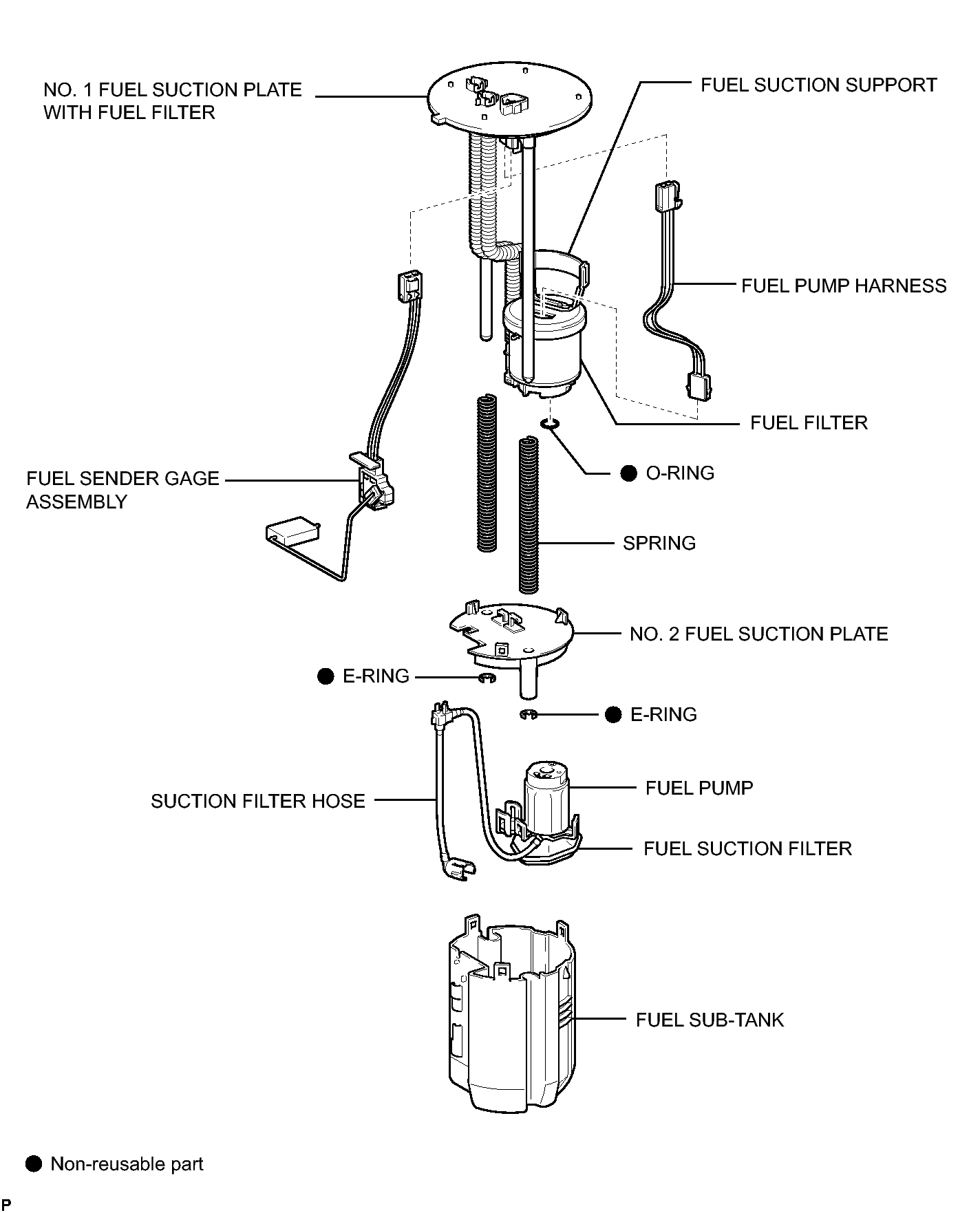

Fig 1: Identifying Fuel Pump Replacement Components

GTY139848

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
