Section 108 (OEM System Circuits)
›
Power Outlet - 115V
›
Notes
Power Outlet - 115V: Notes
WARNING:
This page is about a different car, the 2008 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

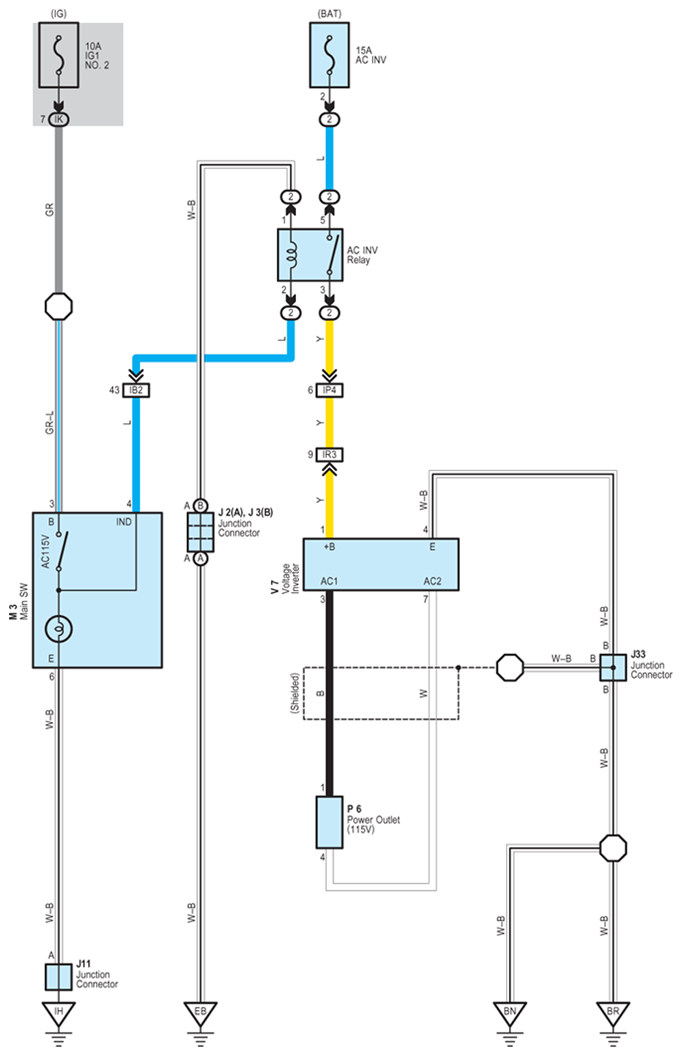

Fig 1: Power Outlet - 115V - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
