Automatic Transmission Assembly: Components: Illustration

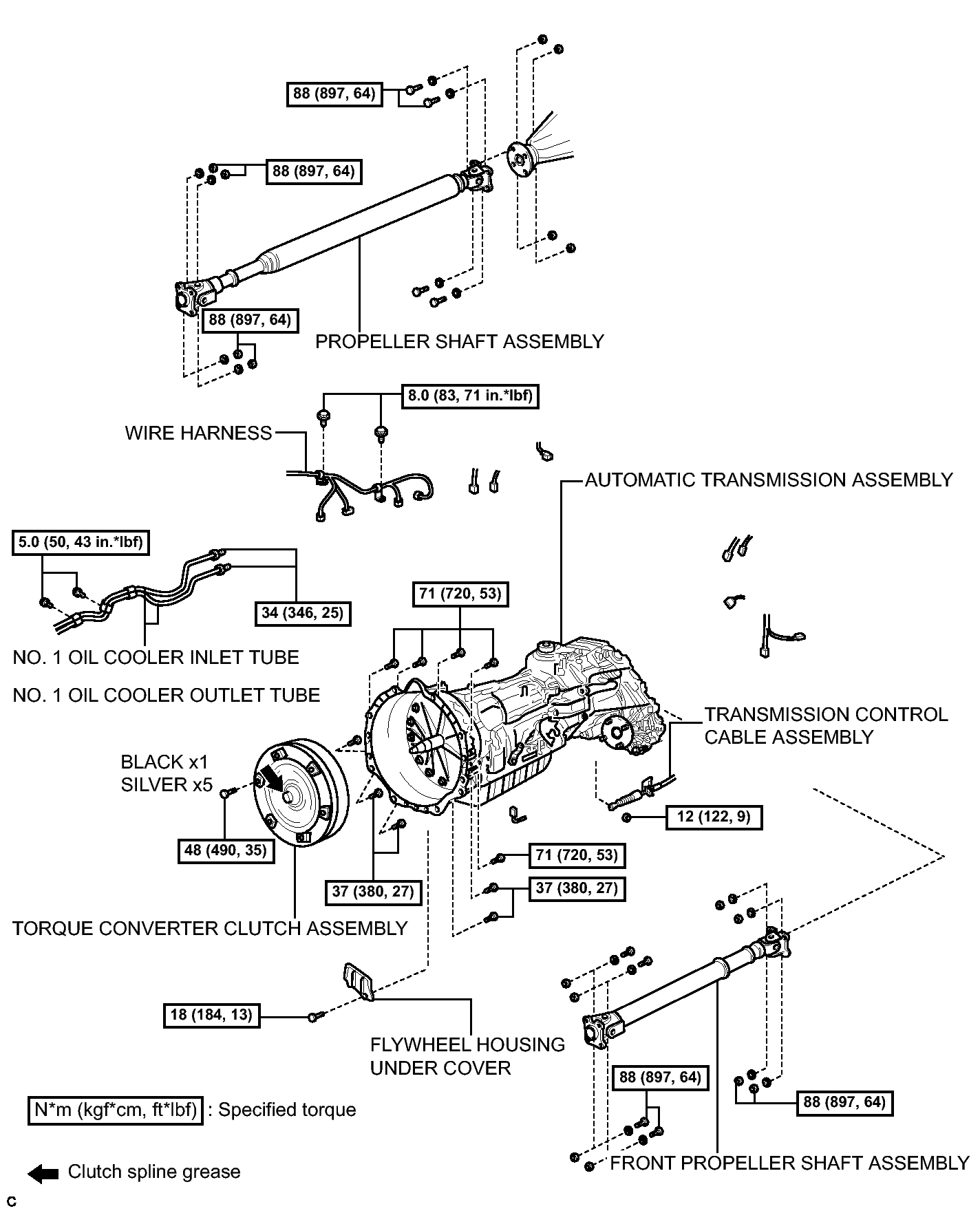

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY140362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

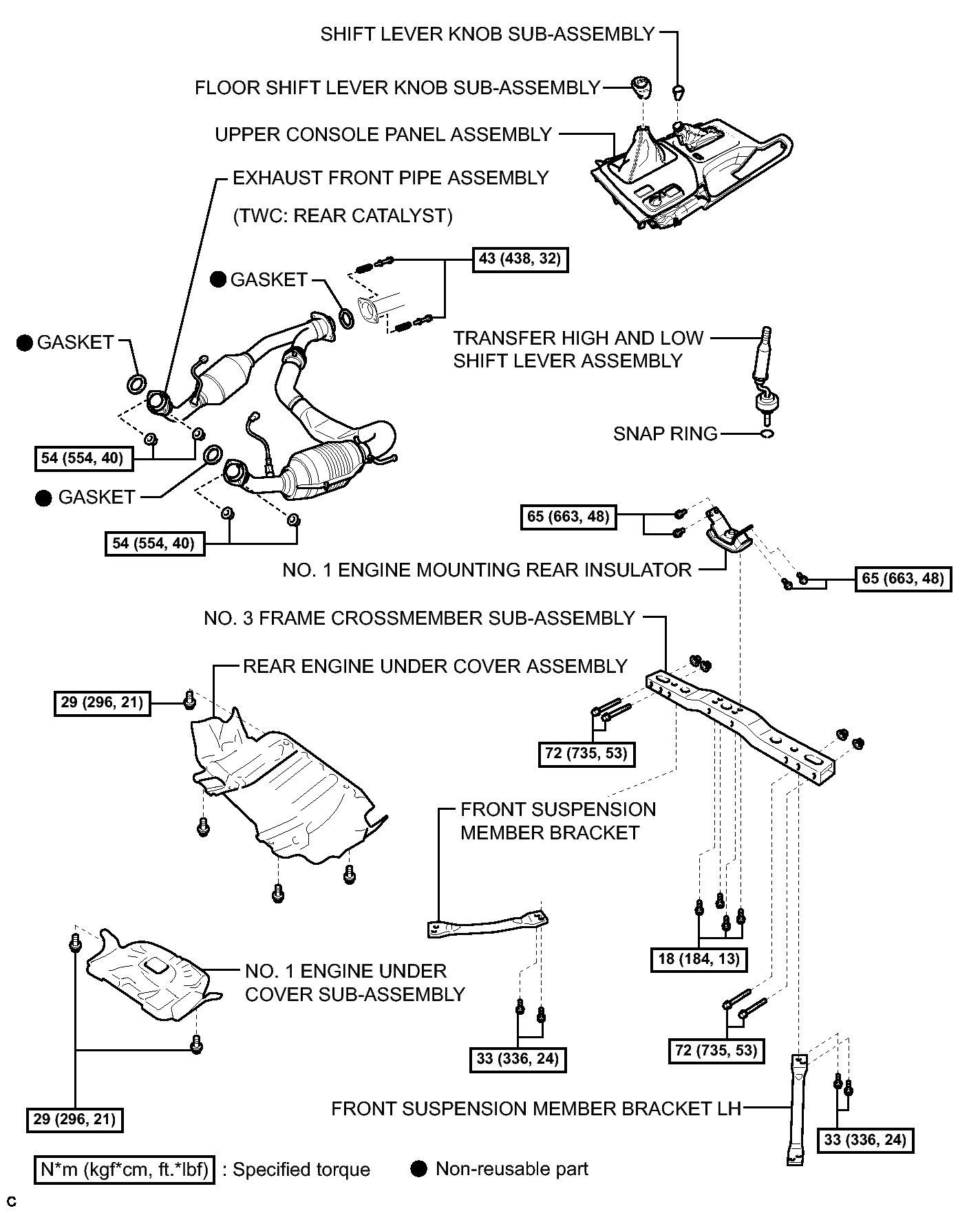

Fig 1: Automatic Transmission Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY134602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
