Shift Lever Assembly: Components: Illustration

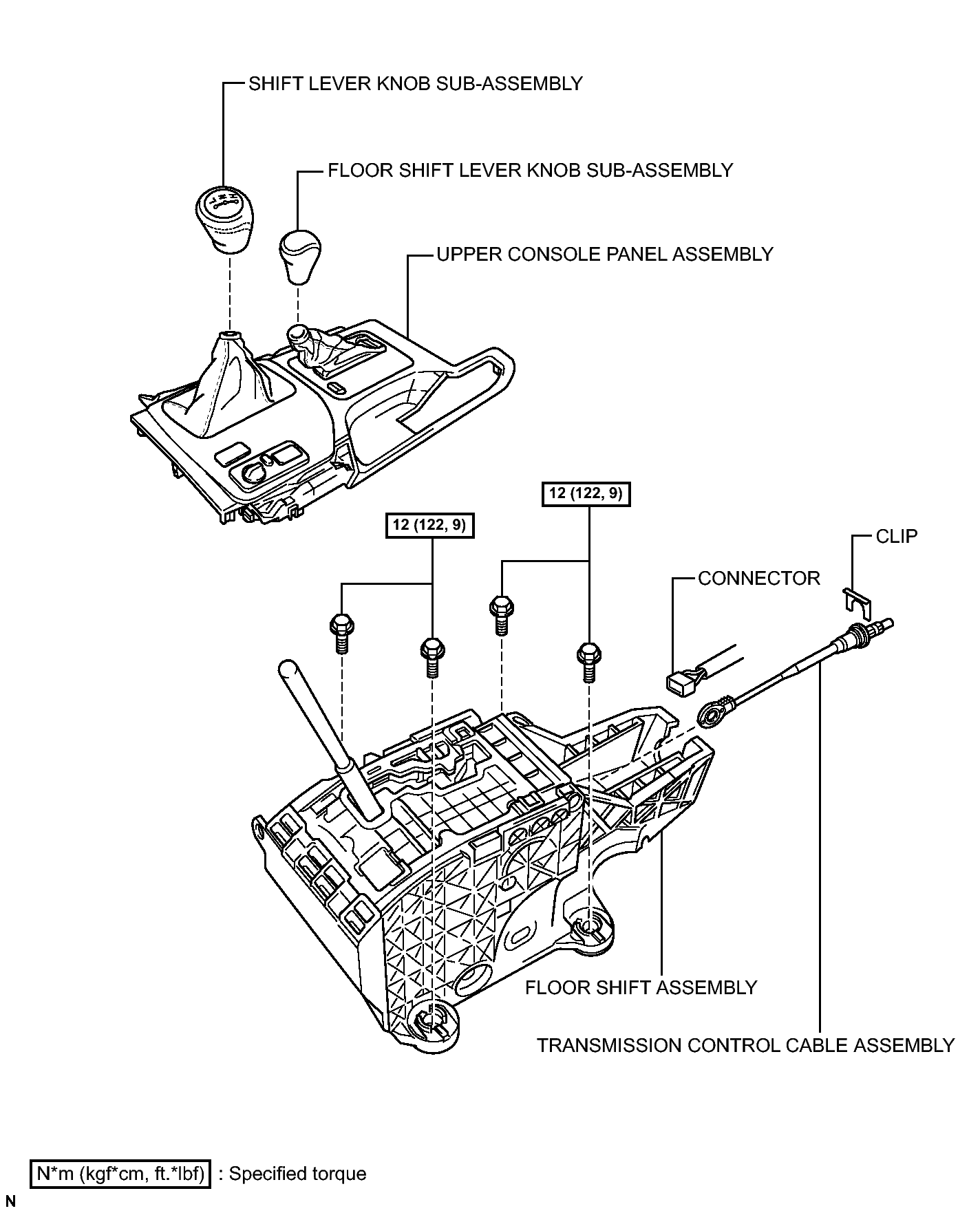

Fig 1: Identifying Shift Lever Assembly Replacement Components With Torque Specifications (1 Of 2)
GTY112517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

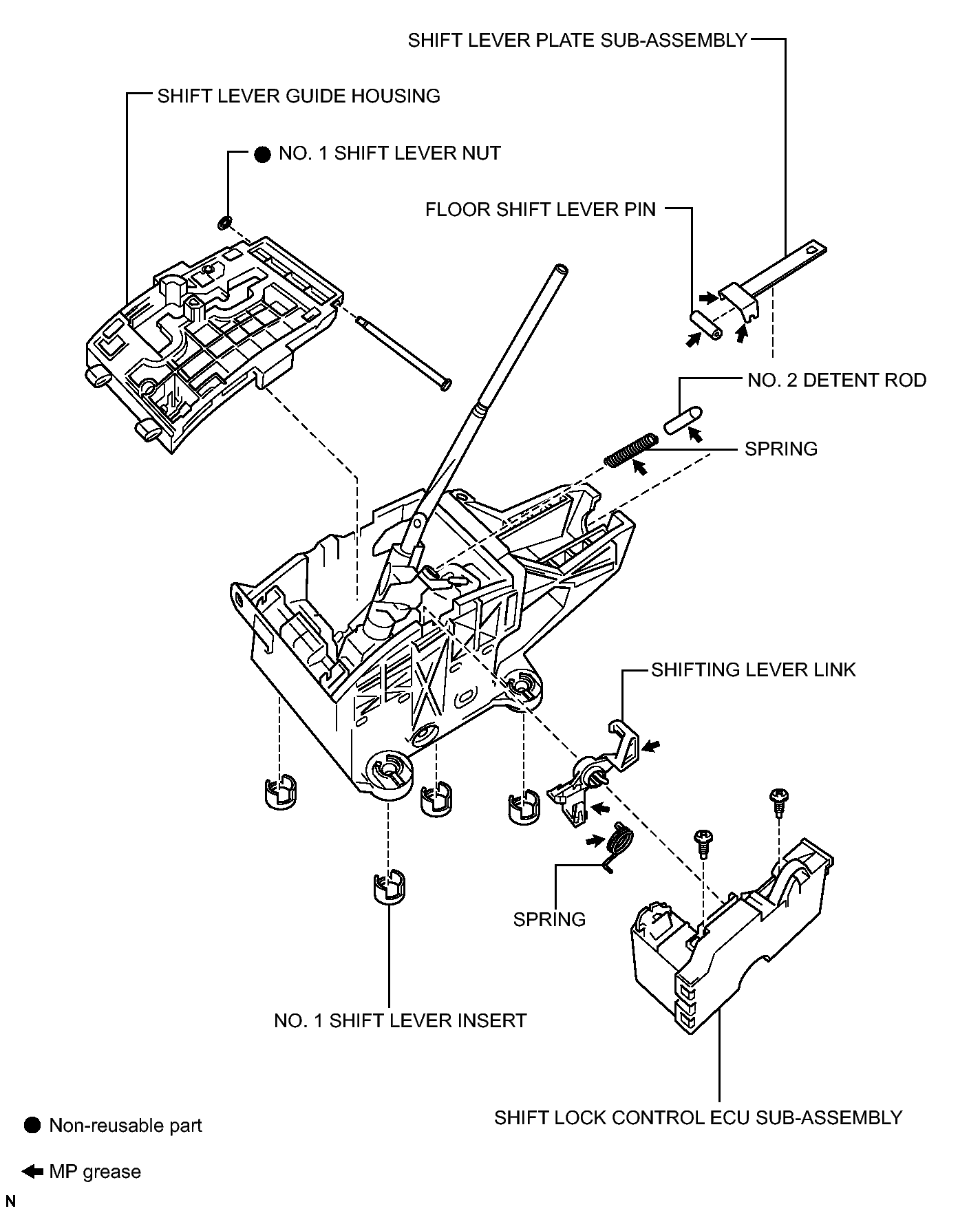

Fig 1: Identifying Shift Lever Assembly Replacement Components (2 Of 2)
GTY112519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
