Transmission Control Cable: Installation: Installation

INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
1. Connect the transmission control cable assembly with the nut and clip from the transmission control cable bracket.

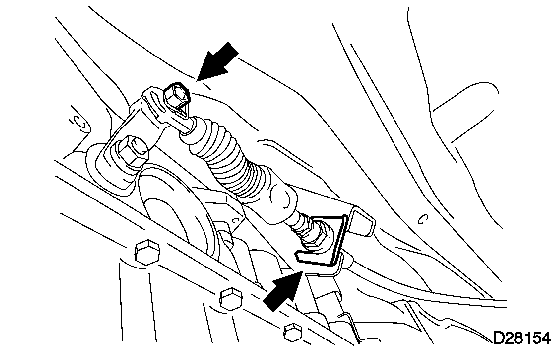

  Fig 1: Identifying Nut & Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull in the transmission control cable assembly to the body.
3. Connect the transmission control cable assembly with the nut clip, from the floor shift lever assembly.

  Fig 2: Connecting Transmission Control Cable Assembly With Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)
  NOTE:
  - Protrusion facing upward.
  - When the nut is remove, be sure to tighten the nut.
4. Install the transmission control cable assembly with the 4 nuts.

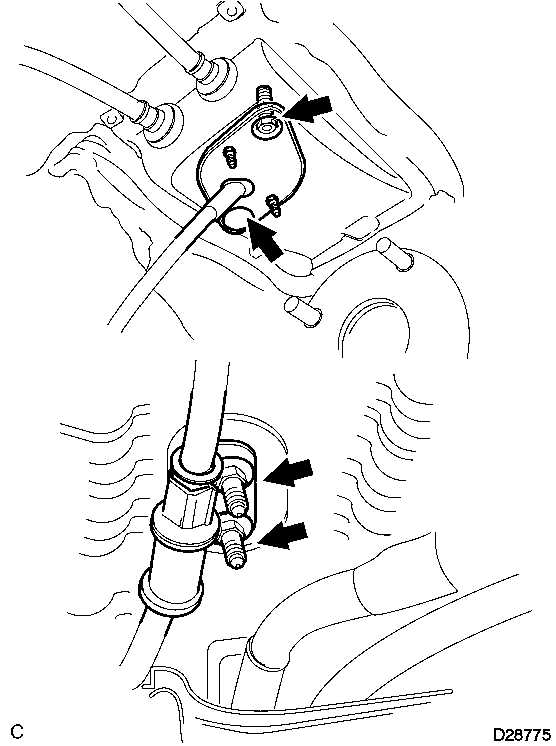

  Fig 3: Identifying Transmission Control Cable Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.0 N*m (51 kgf*cm, 40 in.*lbf)
INSTALL UPPER CONSOLE PANEL ASSEMBLY
INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH
INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH
INSTALL FLOOR SHIFT LEVER KNOB SUB-ASSEMBLY
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
INSPECT SHIFT LEVER POSITION See step 1
ADJUST SHIFT LEVER POSITION See step 2
