System Diagram

WARNING: This page is about a different car, the 2009 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. CERTIFICATION ECU BUS LINES

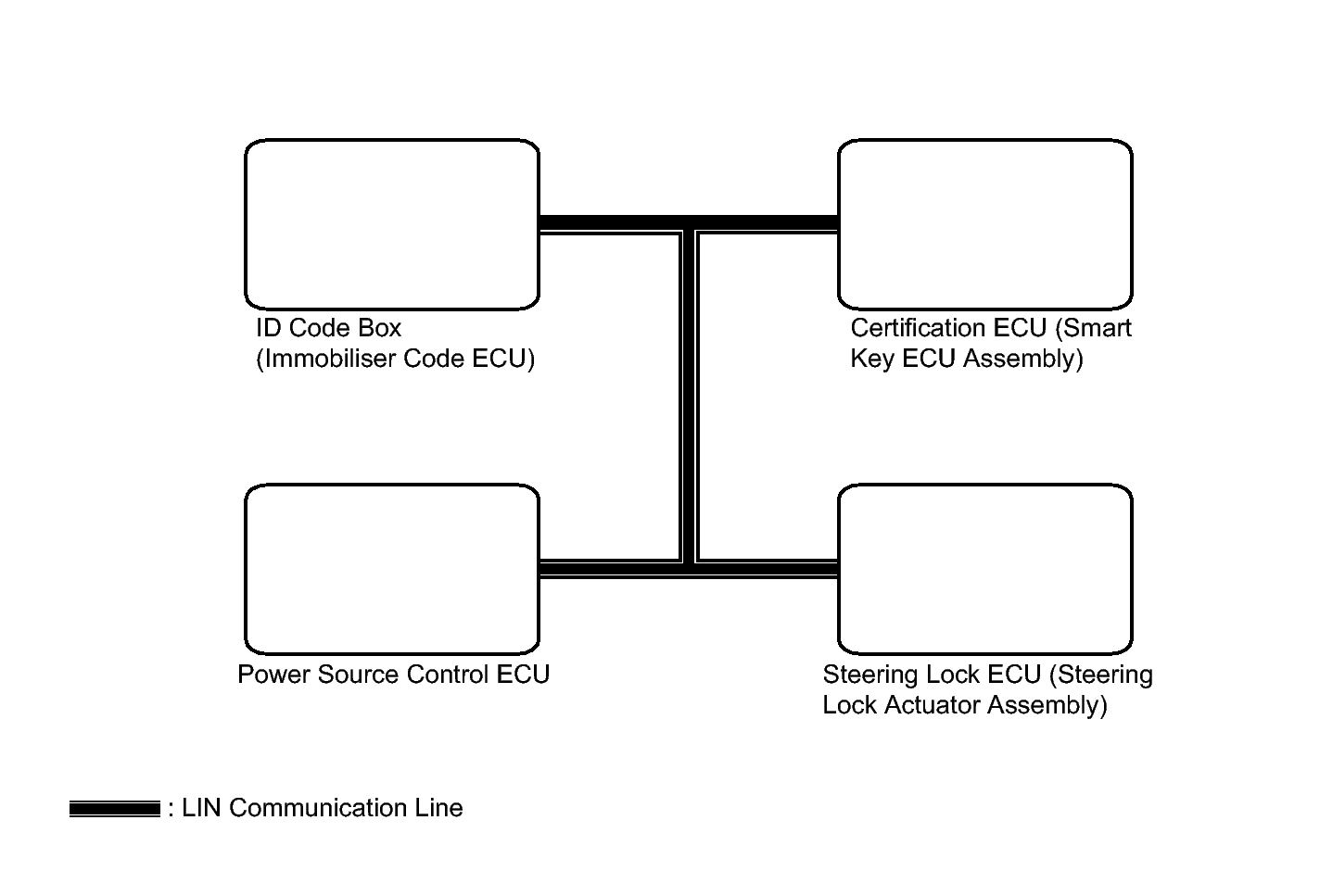

    Fig 1: Power Control ECU And Steering Lock ECU - Communication Diagram
    GTY115114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
