System Diagram

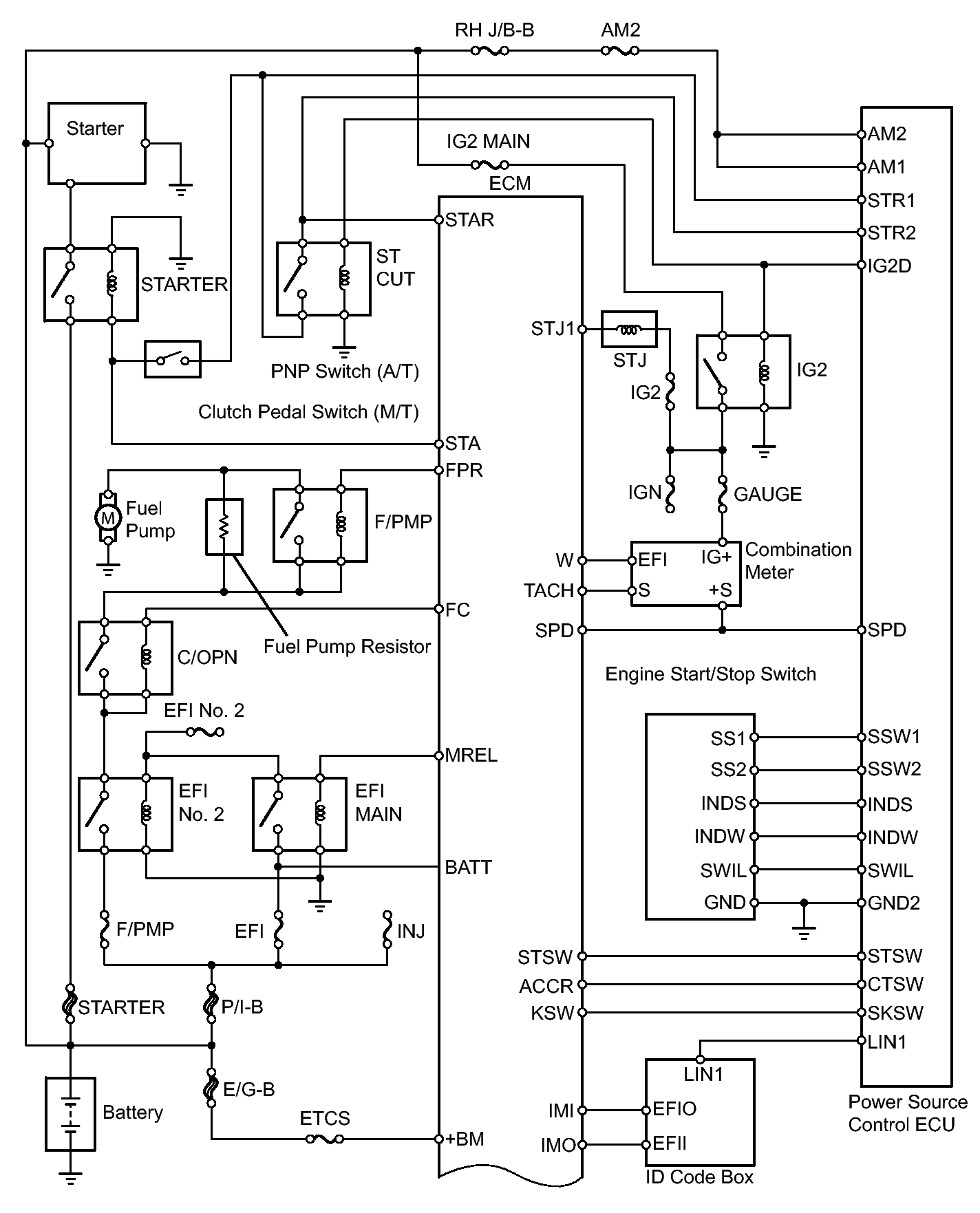

Fig 1: Identifying Engine Control (SFI) System Diagram (1 Of 5)
GTY135164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

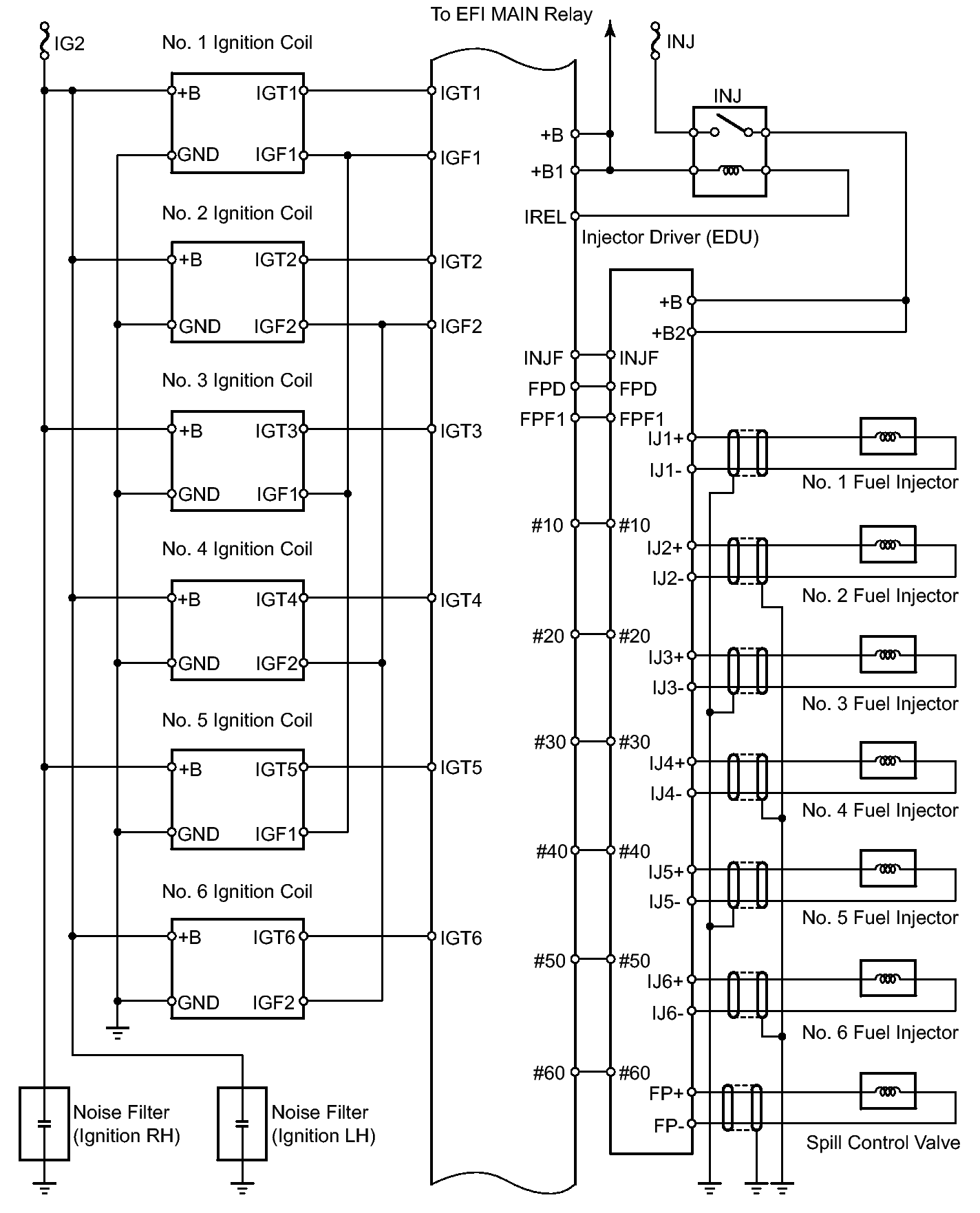

Fig 2: Identifying Engine Control (SFI) System Diagram (2 Of 5)
GTY143855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

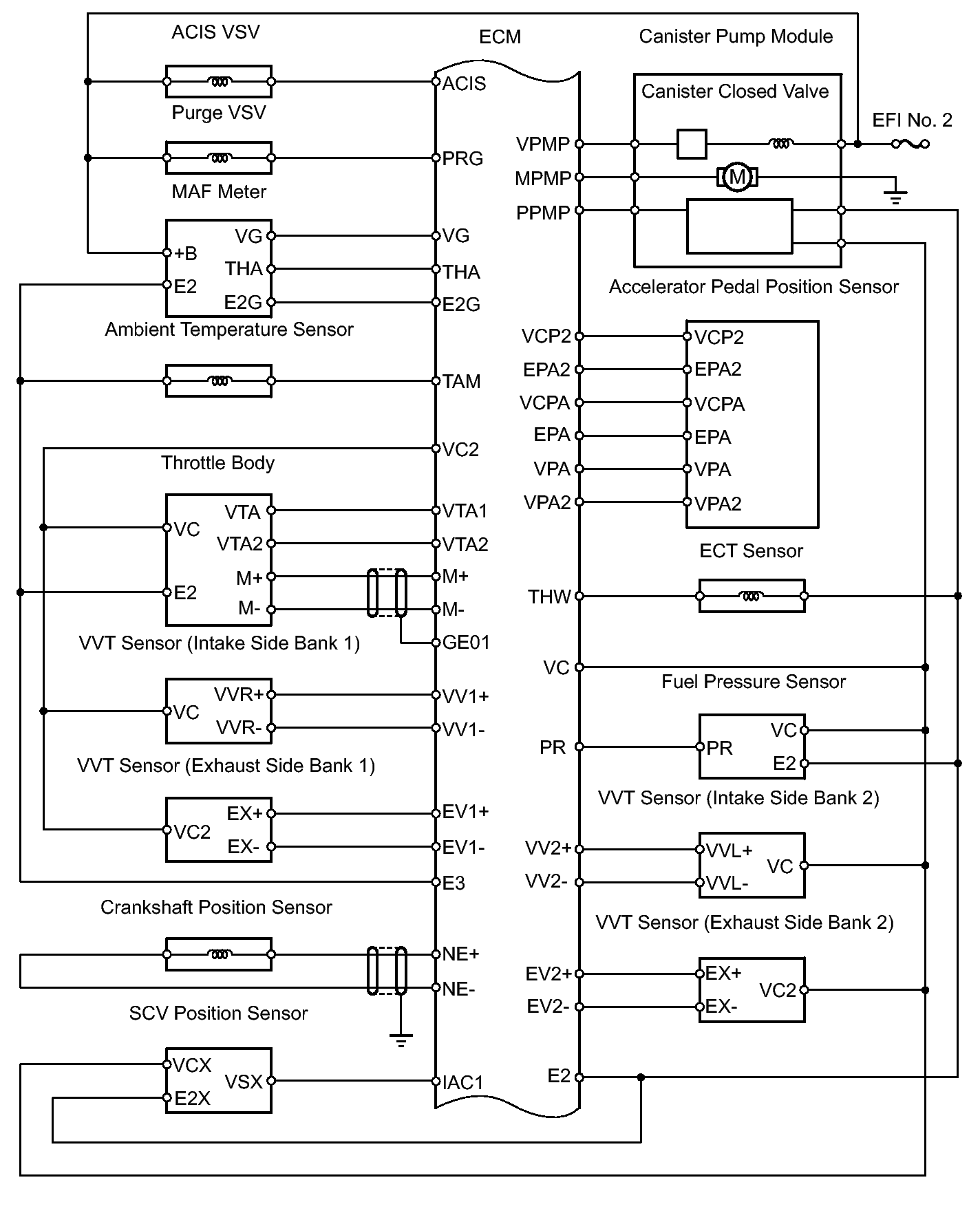

Fig 3: Identifying Engine Control (SFI) System Diagram (3 Of 5)
GTY123059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Engine Control (SFI) System Diagram (4 Of 5)
GTY137511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

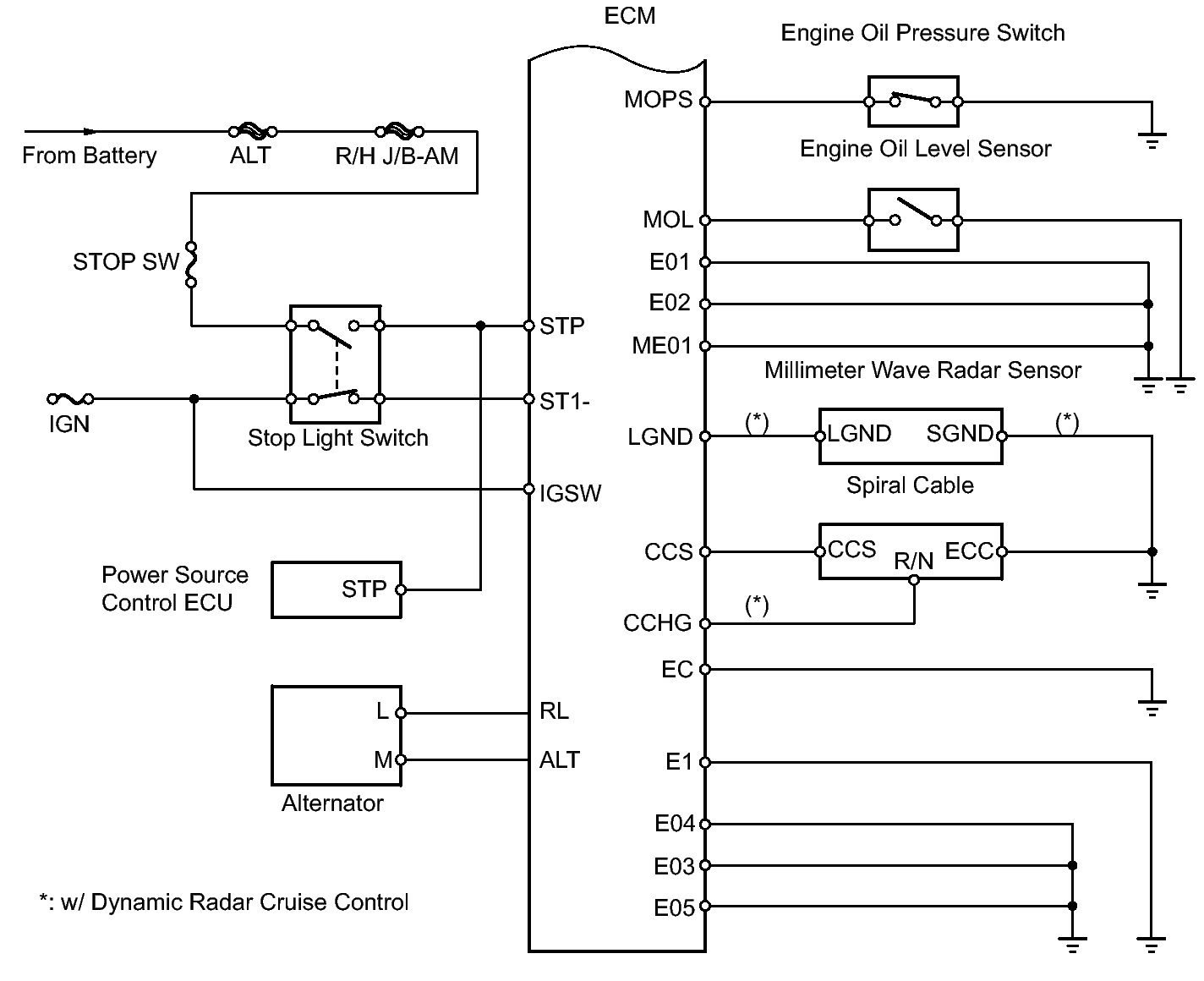

Fig 5: Identifying Engine Control (SFI) System Diagram (5 Of 5)
GTY141180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
