Power Window Control System (Diagnostic Codes & Symptom Tests)
›
Power Window Control System
›
Driver Side Power Window does not Operate with Power Window Master Switch
›
Wiring Diagram
Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

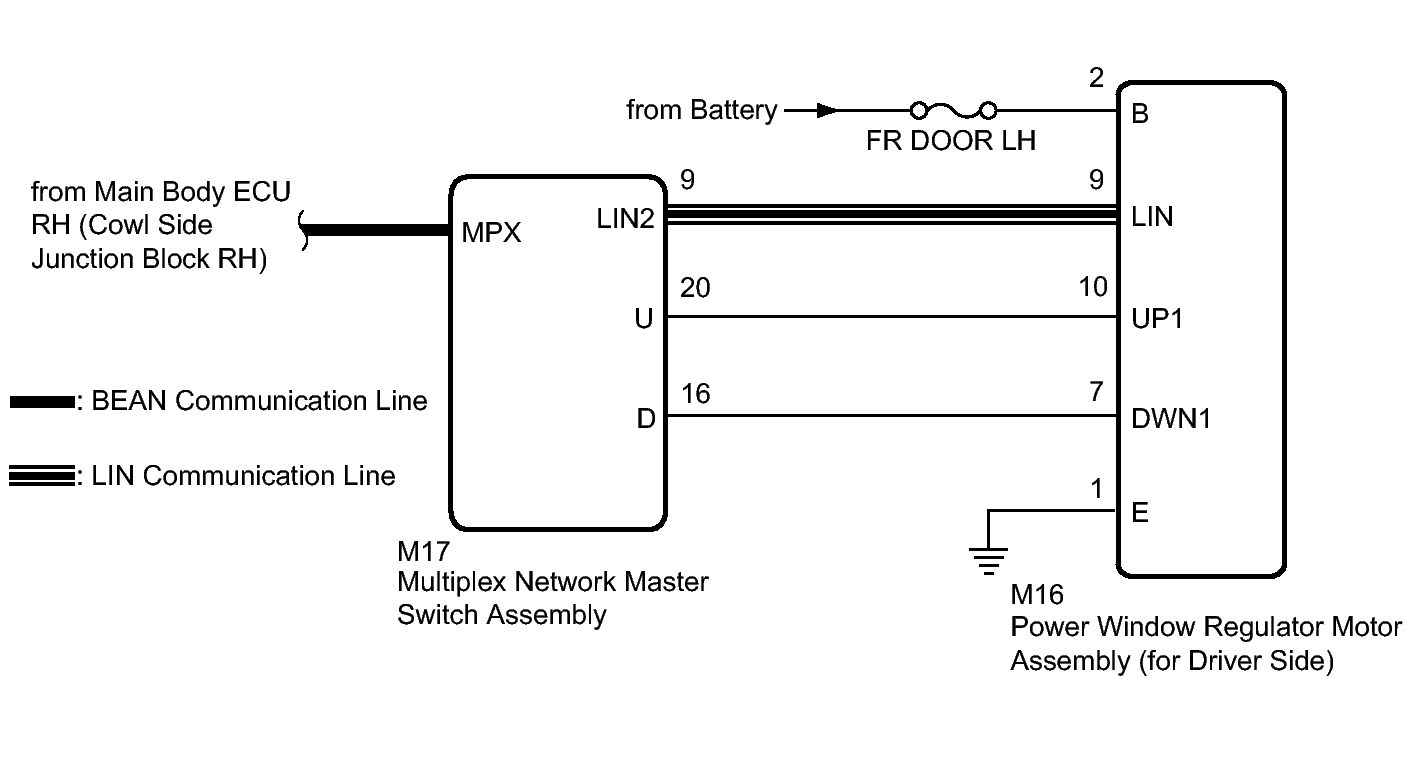

Fig 1: Identifying Power Window Master Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
