Tire Pressure Warning Antenna: Notes

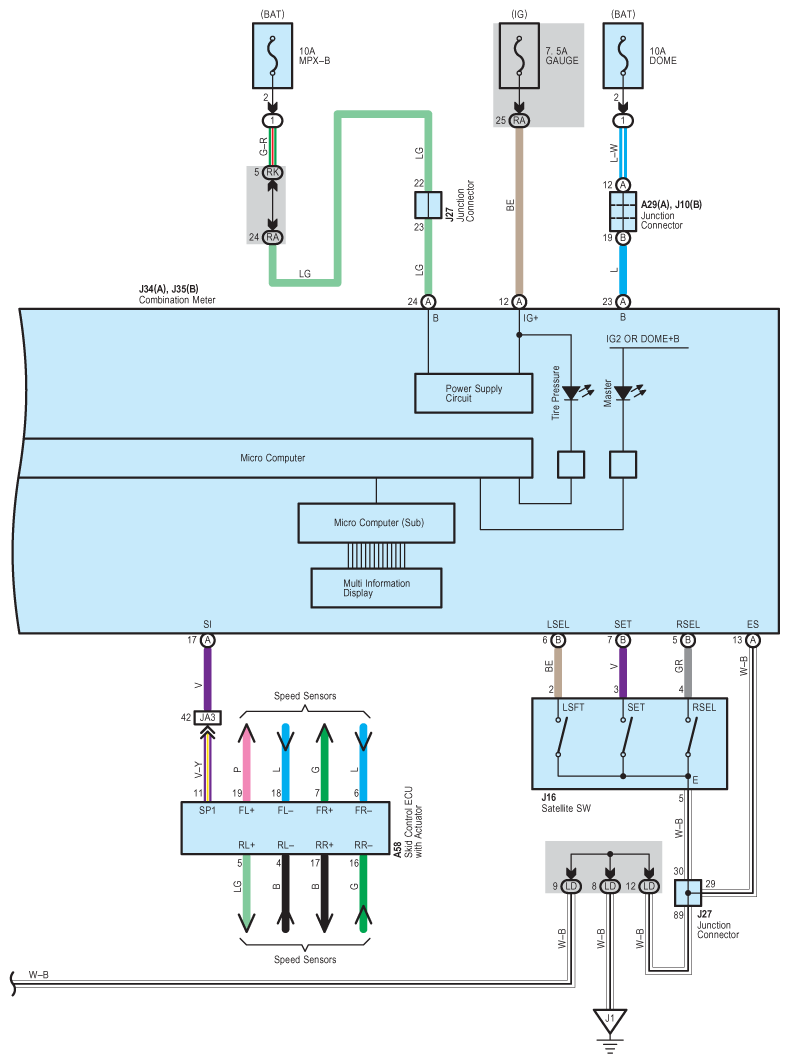

Fig 1: Tire Pressure Warning Antenna - Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

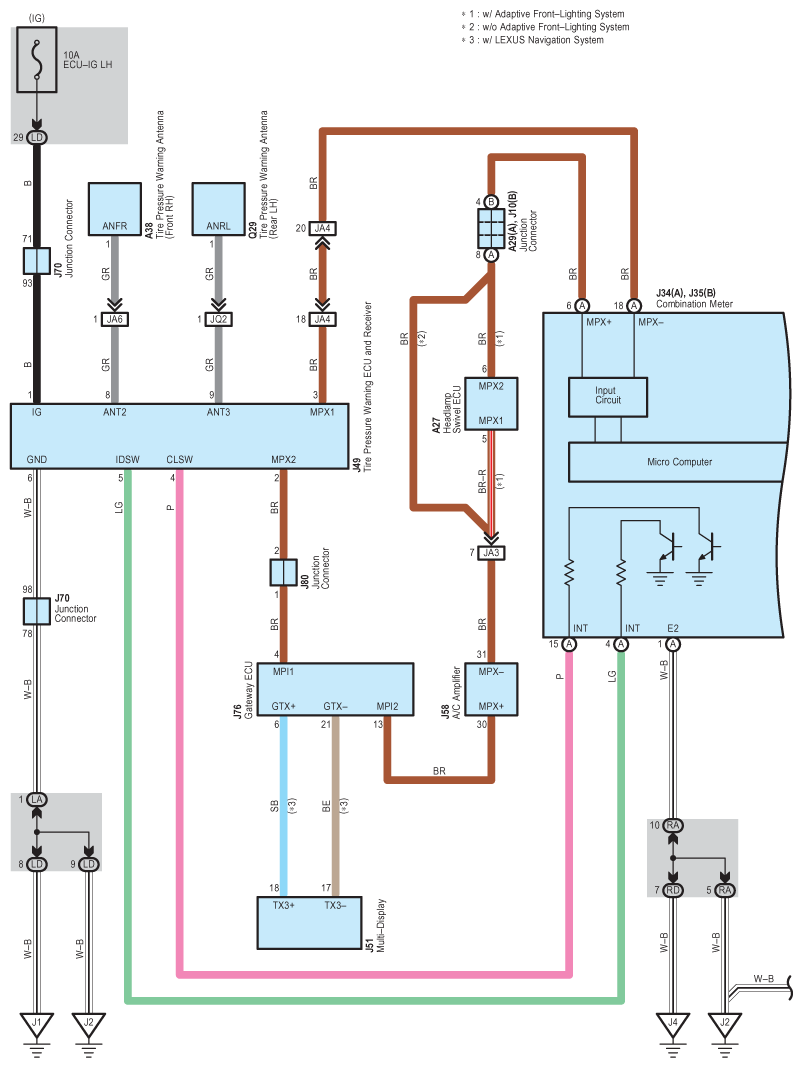

Fig 2: Tire Pressure Warning Antenna - Circuit Diagram (2 Of 2)
