System Description

  1. INTEGRATION CONTROL AND PANEL ASSEMBLY*1 OR MULTI-DISPLAY*2 (CLOCK)

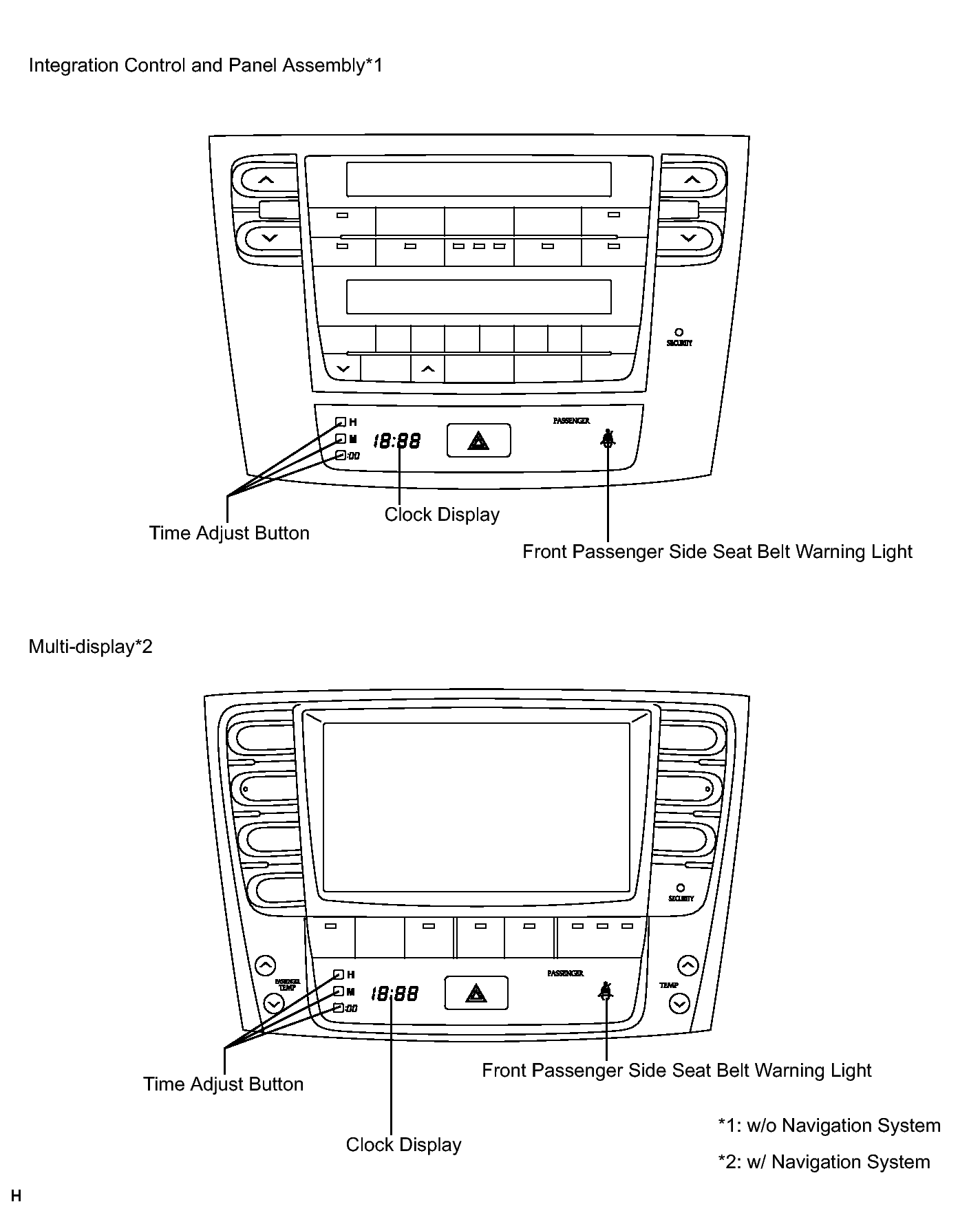

    Fig 1: Identifying Integration Control And Panel Assembly*1 Or Multi-Display*2 (Clock)
    GTY151387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    • Integration control and panel assembly*1 consists of three parts (passenger information display, clock display and heater control panel). These areas display the contents given in the table below.
    • Multi-display*2 consists of four parts (navigation display, passenger information display, clock display, and heater control panel). These areas display the contents given in the table below.
    Item Detail
    Passenger information display Displays the condition of the front passenger side seat belt OFF or ON.
    Heater control panel Displays the condition of the heater control panel.
    Clock display The time is always displayed. In addition, the display dims according to the signal from the combination meter.
    Navigation display*2 Displays the navigation data.
    • *1: w/o Navigation System
    • *2: w/ Navigation System
