Parts Location: Illustration

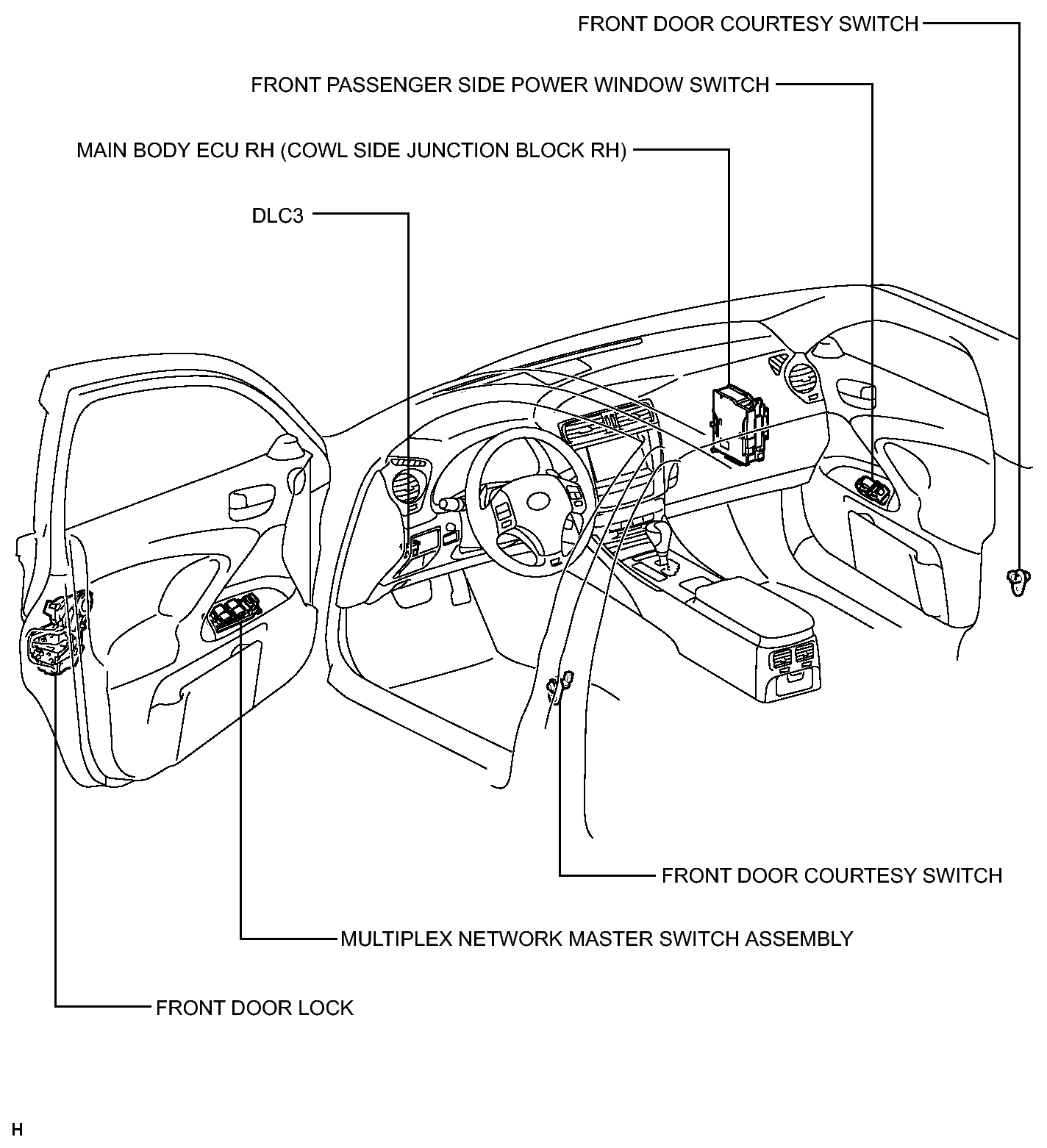

Fig 1: Power Window Control System Parts Location (1 of 2)
GTY144316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

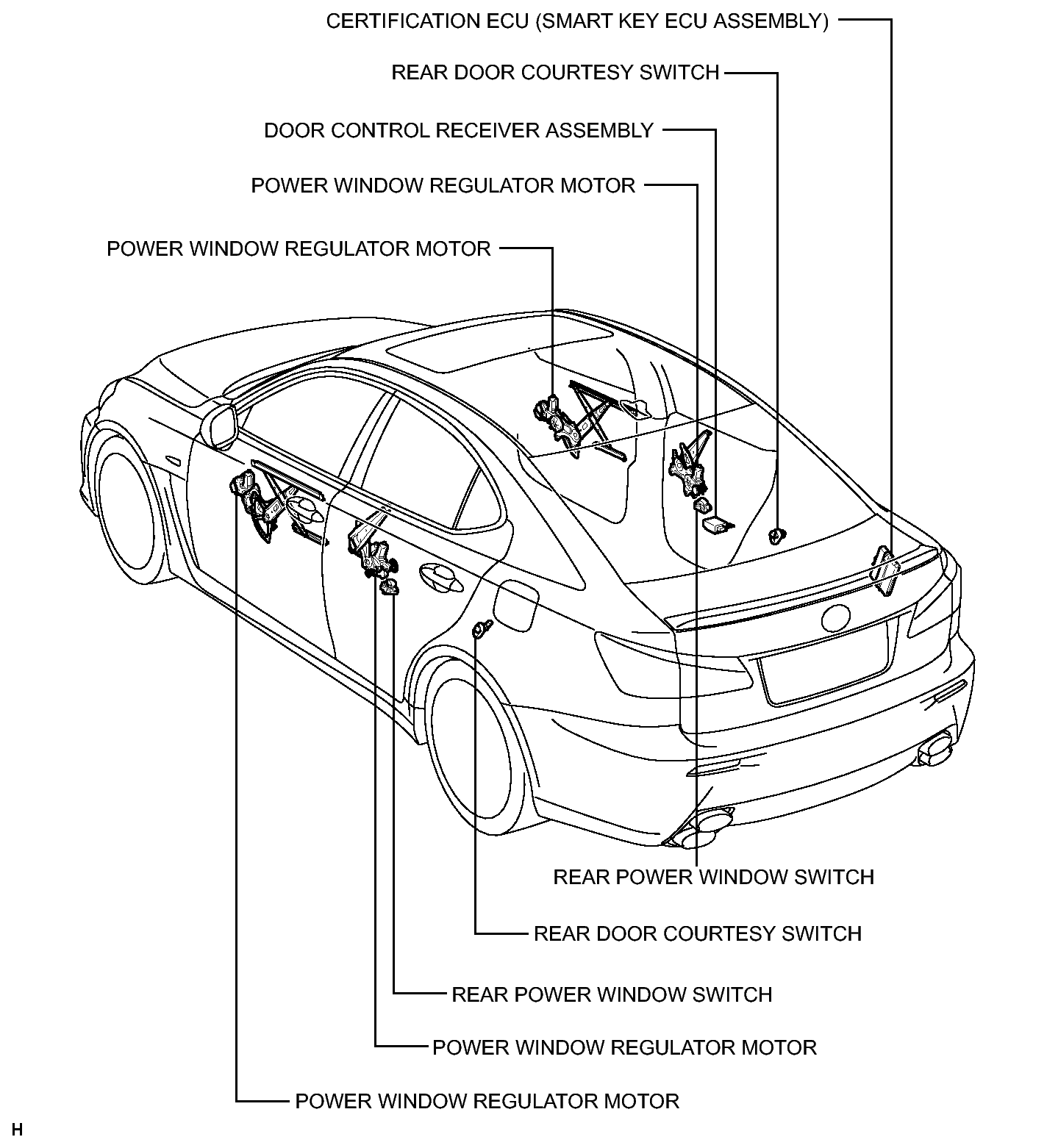

Fig 1: Power Window Control System Parts Location (2 of 2)
GTY135206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
