Skid Control Ecu: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT DOOR SCUFF PLATE RH  . Refer to REMOVAL - Step 30
  3. REMOVE FRONT DOOR OPENING TRIM COVER RH  . Refer to REMOVAL - Step 31
  4. REMOVE SIDE INSTRUMENT PANEL RH  . Refer to REMOVAL - Step 32
  5. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 33
  6. REMOVE SKID CONTROL ECU

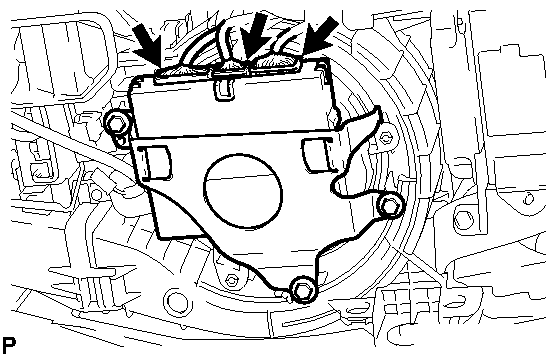

    1. Disconnect the 3 connectors from the skid control ECU.
      Fig 1: Connecting 3 Connectors To Skid Control ECU
      GTY113137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws and skid control ECU.
      Fig 2: Removing 3 Screws And Skid Control ECU
      GTY113134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
