Lexus
›
2009
›
IS F
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Multiplex Communication System (AVC-LAN)
›
Notes
Multiplex Communication System (AVC-LAN): Notes

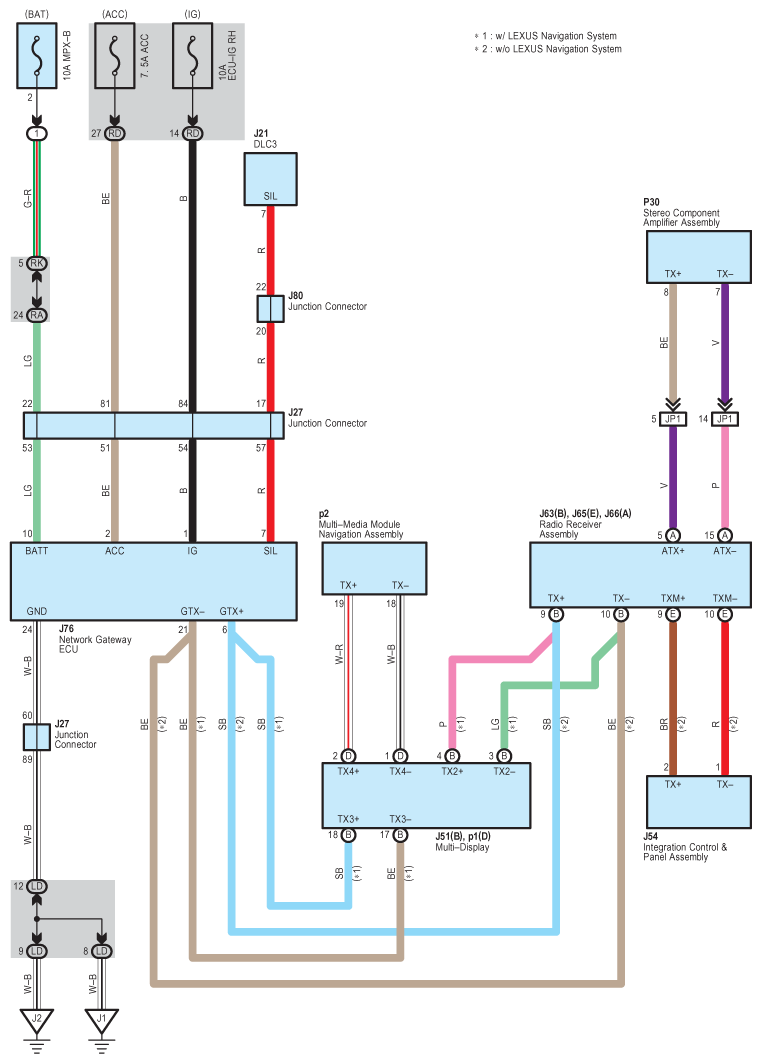

Fig 1: Multiplex Communication System (AVC-LAN) - Circuit Diagram
