Power Seat (Driver's Seat): Notes

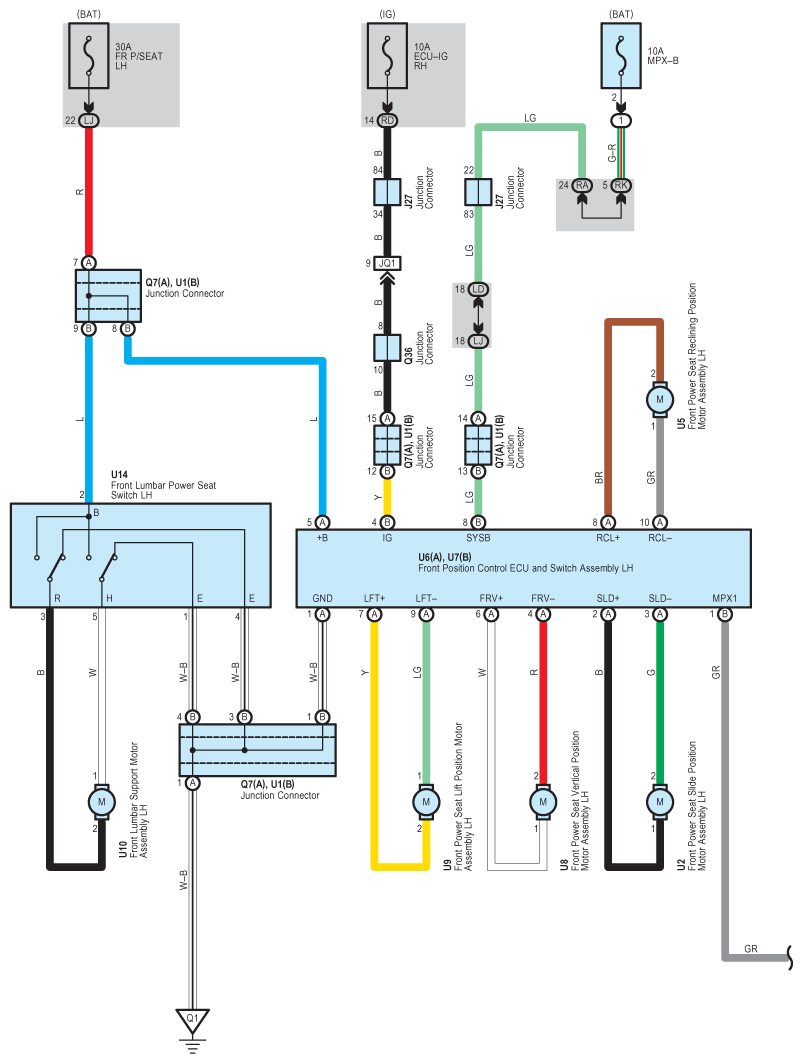

Fig 1: Power Seat (Driver's Seat) - Circuit Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

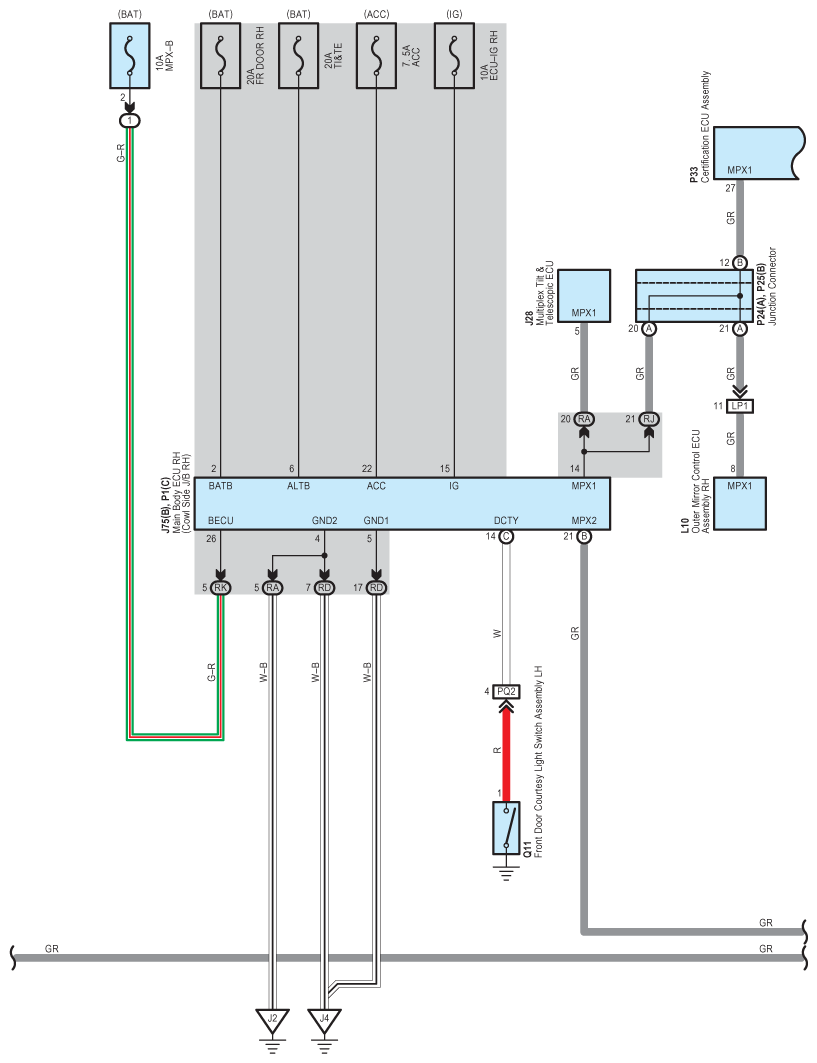

Fig 2: Power Seat (Driver's Seat) - Circuit Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

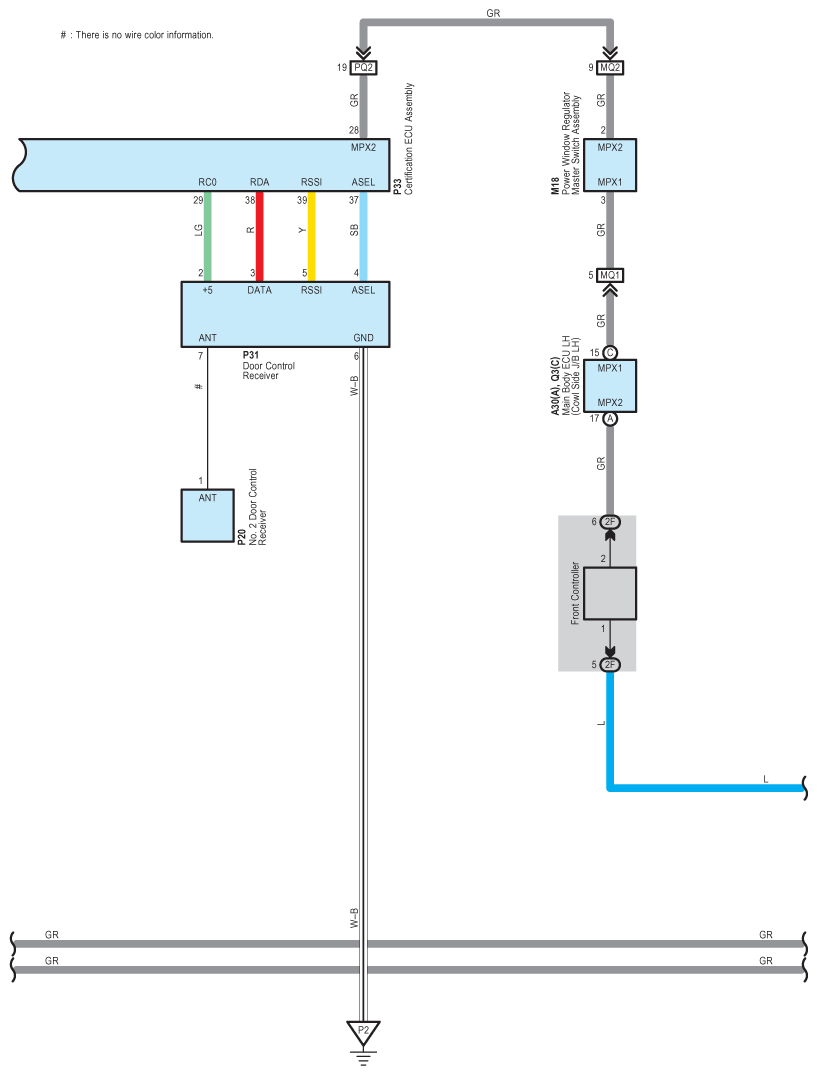

Fig 3: Power Seat (Driver's Seat) - Circuit Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Power Seat (Driver's Seat) - Circuit Diagram (4 Of 5)

Fig 5: Power Seat (Driver's Seat) - Circuit Diagram (5 Of 5)
