Engine Assembly: Components: Illustration

Fig 1: Identifying Engine Assembly Replacement Components (1 Of 10) with Torque Specifications
GTY149036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components (2 Of 10) with Torque Specifications
GTY121017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components (3 Of 10) with Torque Specifications
GTY149037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components (4 Of 10) with Torque Specifications
GTY120924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


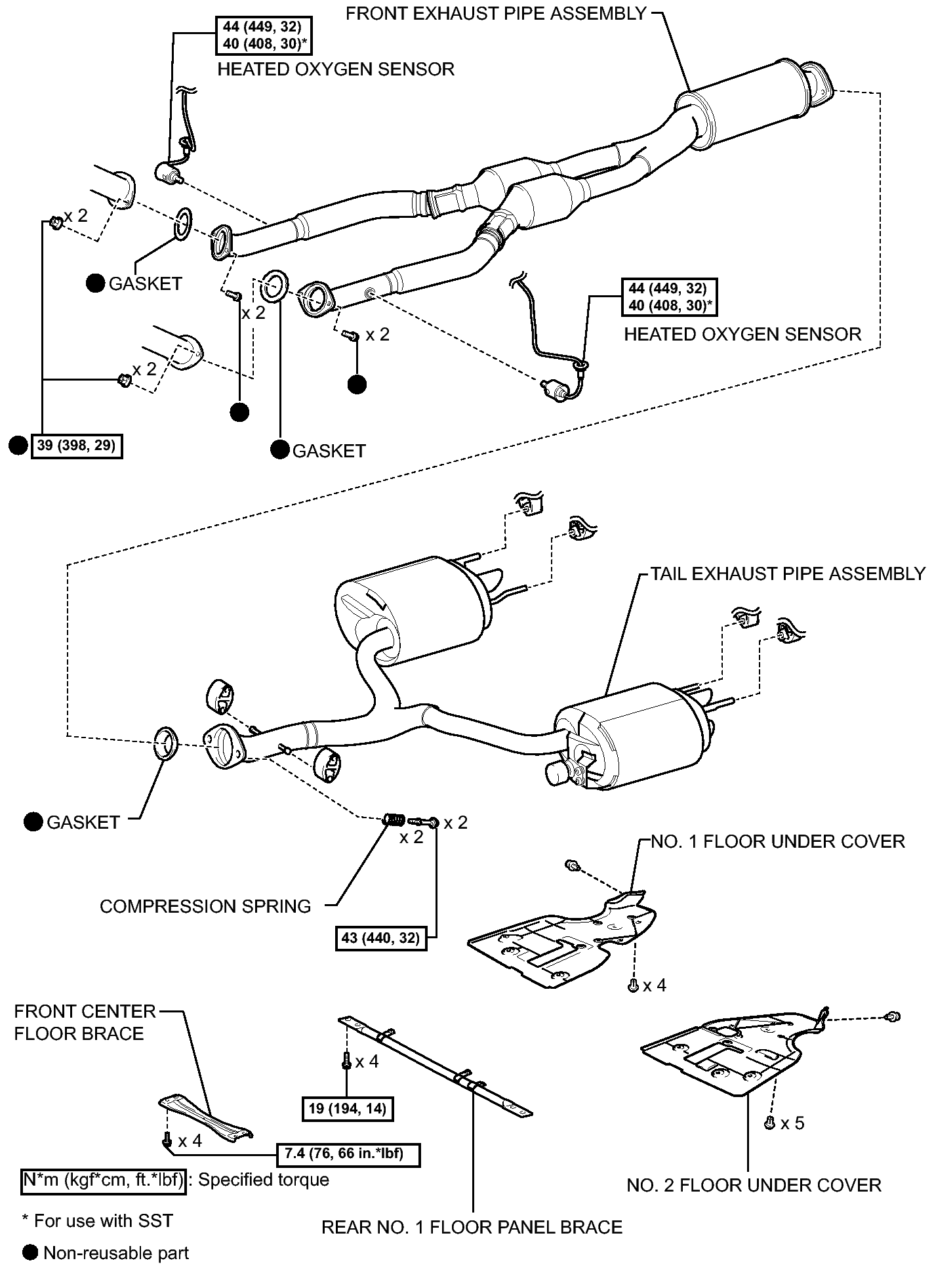

Fig 1: Identifying Engine Assembly Replacement Components (5 Of 10) with Torque Specifications
GTY120921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components (6 Of 10) with Torque Specifications
GTY109031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components (7 Of 10) with Torque Specifications
GTY148917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

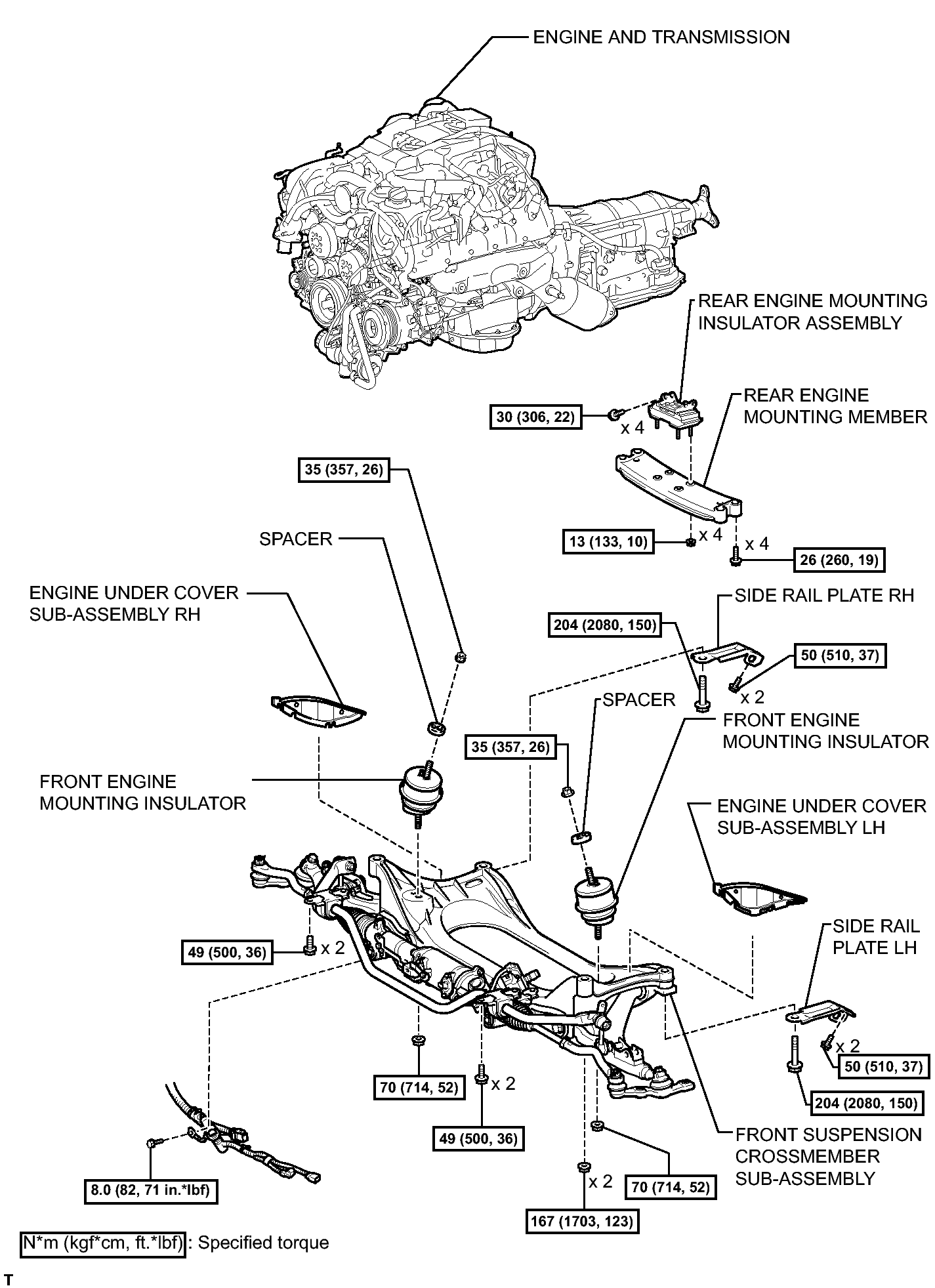

Fig 1: Identifying Engine Assembly Replacement Components (8 Of 10) with Torque Specifications
GTY149038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

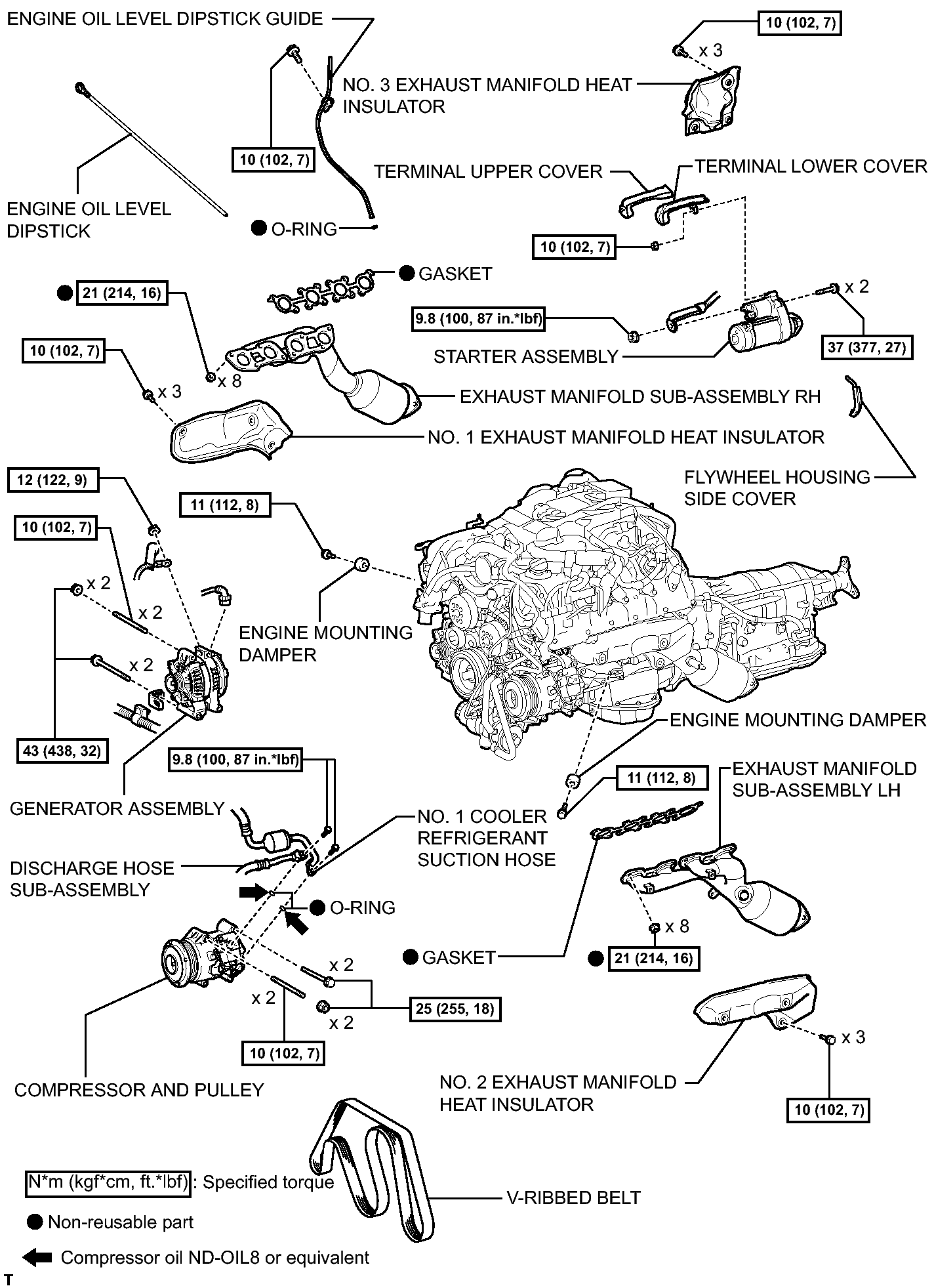

Fig 1: Identifying Engine Assembly Replacement Components (9 Of 10) with Torque Specifications
GTY148918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Assembly Replacement Components (10 Of 10) with Torque Specifications
GTY139467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
