Engine Unit: Components: Illustration

Fig 1: Identifying Engine Unit Replacement Components (1 Of 15) with Torque Specifications
GTY148919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Unit Replacement Components (2 Of 15) with Torque Specifications
GTY121020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

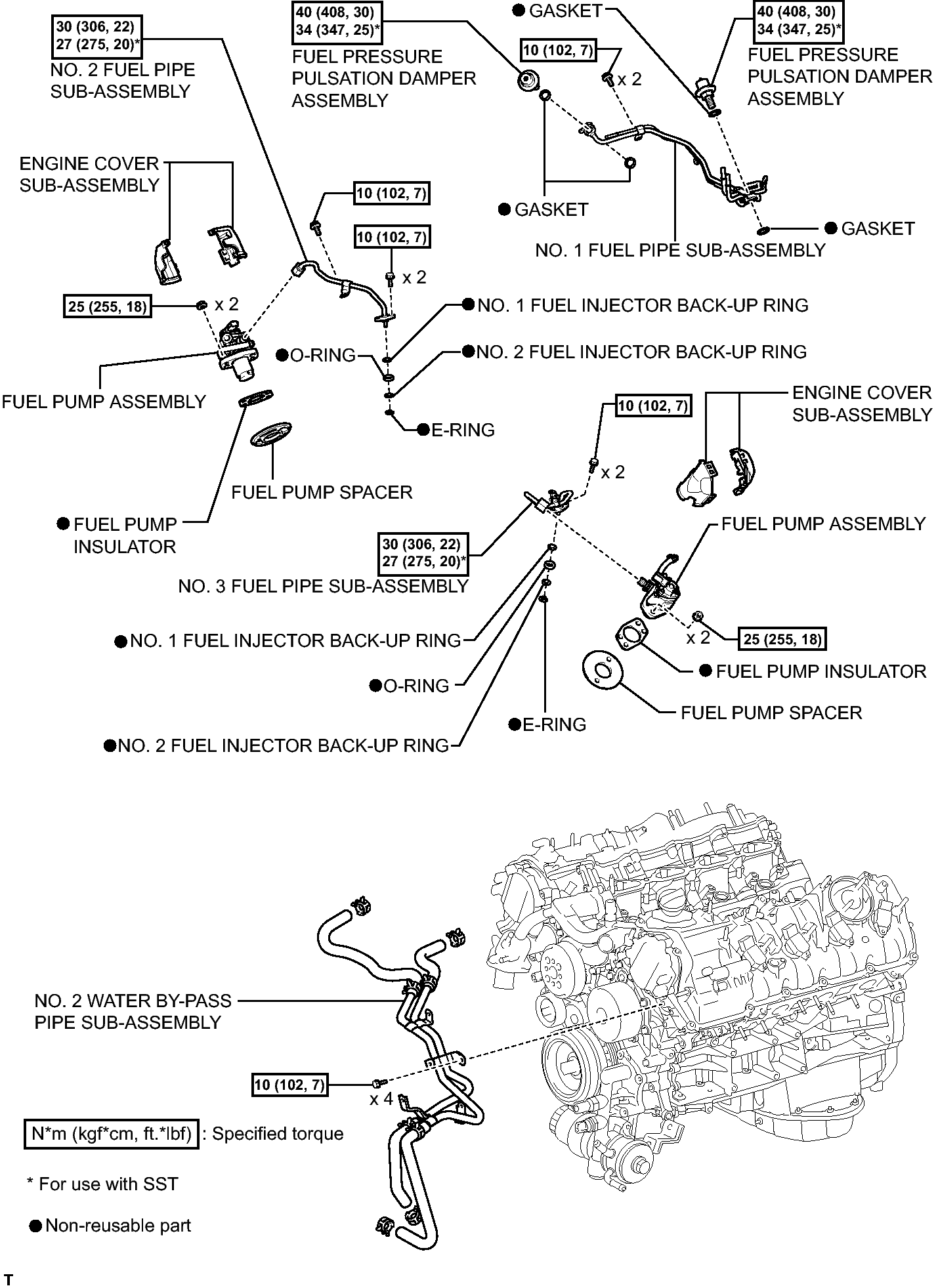

Fig 1: Identifying Engine Unit Replacement Components (3 Of 15) with Torque Specifications
GTY135089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Unit Replacement Components (4 Of 15) with Torque Specifications
GTY142368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Unit Replacement Components (5 Of 15) with Torque Specifications
GTY141365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Unit Replacement Components (6 Of 15) Torque Specifications
GTY141818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Unit Replacement Components (7 Of 15) with Torque Specifications
GTY148782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Unit Replacement Components (8 Of 15) with Torque Specifications
GTY148783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Unit Replacement Components (9 Of 15) with Torque Specifications
GTY148784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Unit Replacement Components (10 Of 15) with Torque Specifications
GTY148940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Unit Replacement Components (11 Of 15) with Torque Specifications
GTY148785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Unit Replacement Components (12 Of 15) with Torque Specifications
GTY148786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Unit Replacement Components (13 Of 15) with Torque Specifications
GTY148787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

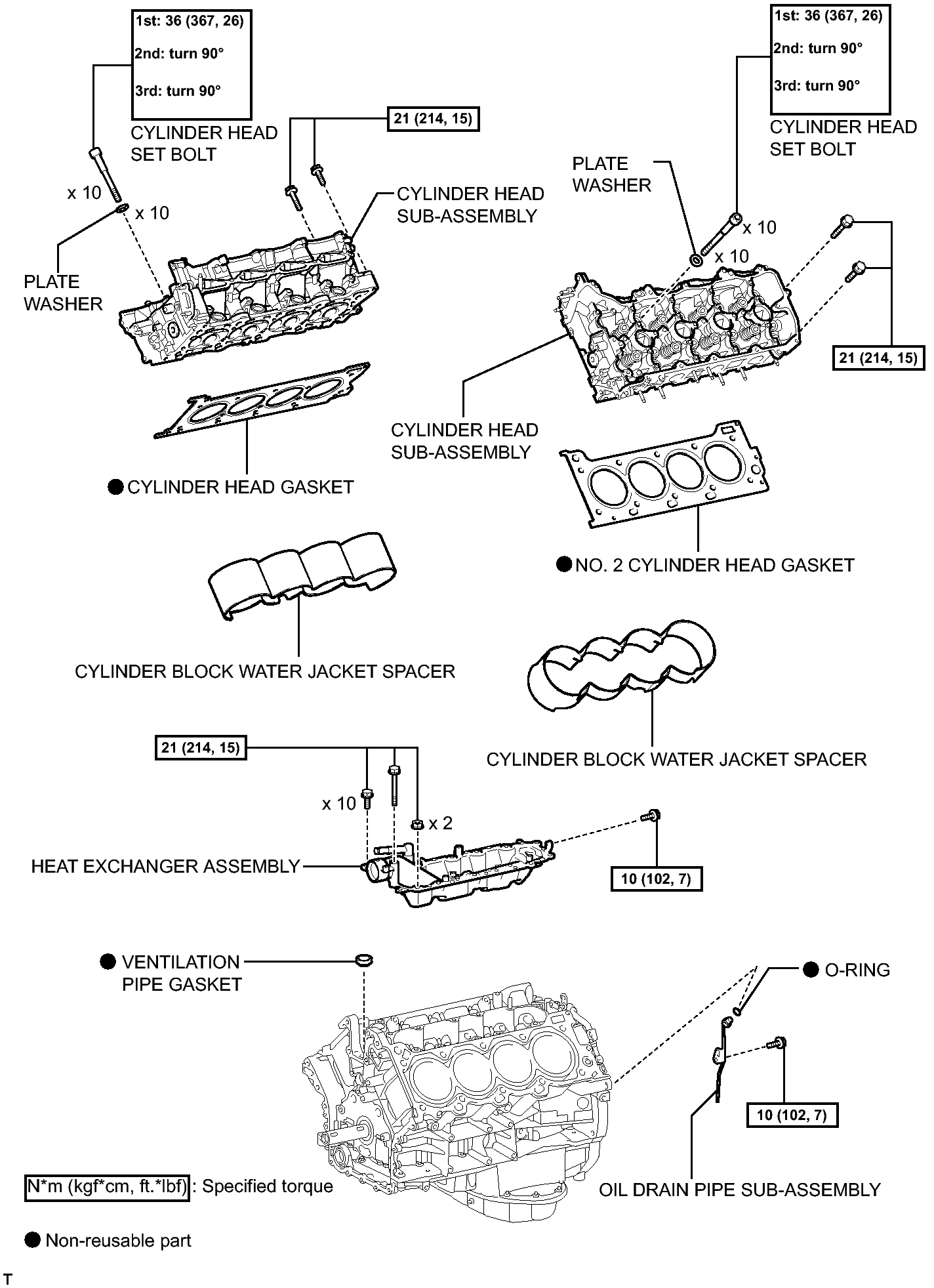

Fig 1: Identifying Engine Unit Replacement Components (14 Of 15) with Torque Specifications
GTY148788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Unit Replacement Components (15 Of 15) with Torque Specifications
GTY148789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
