Accelerator Pedal: Components: Illustration

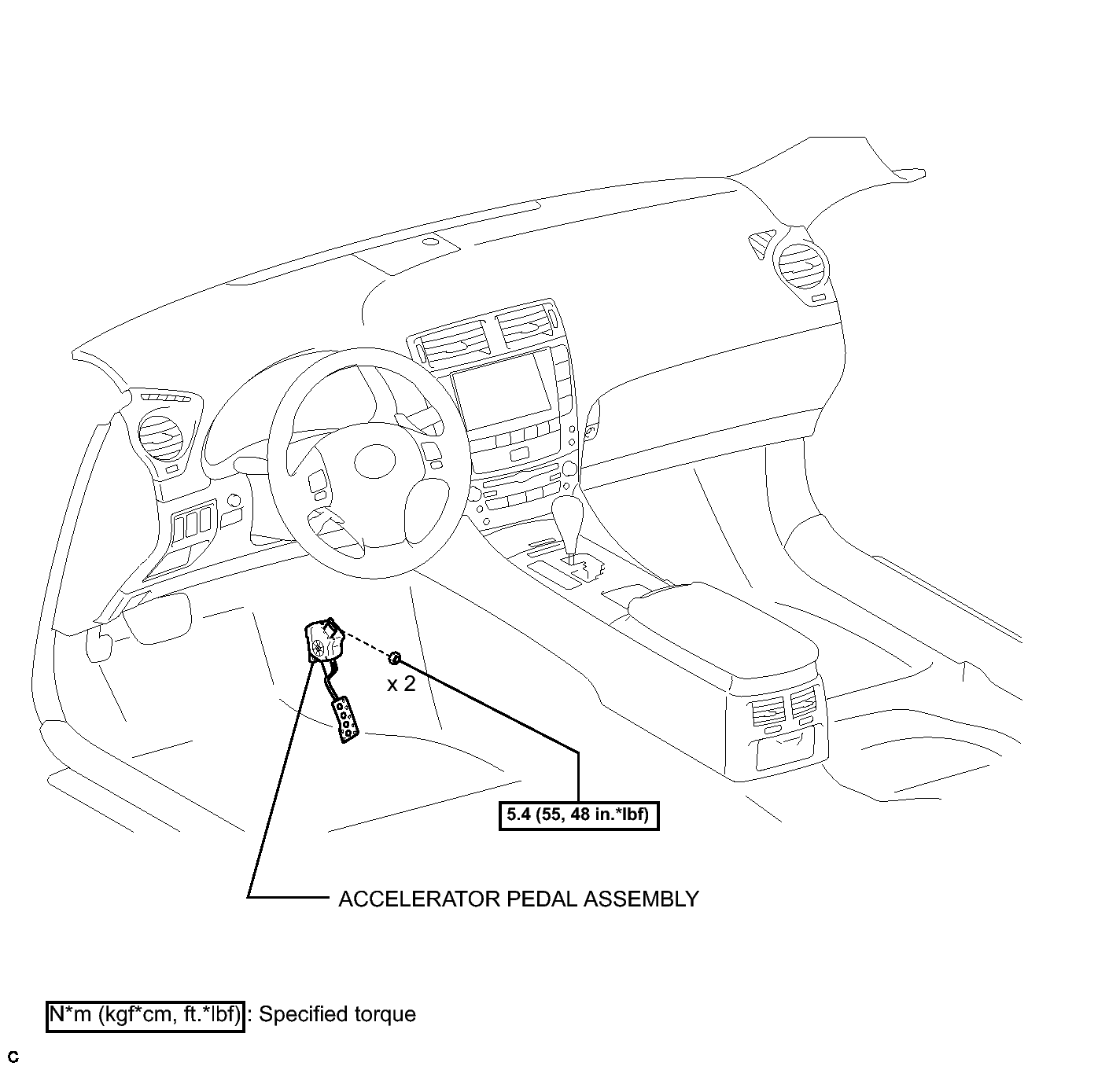

Fig 1: Accelerator Pedal Assembly With Torque Specifications

GTY148904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
