Parts Location: Illustration

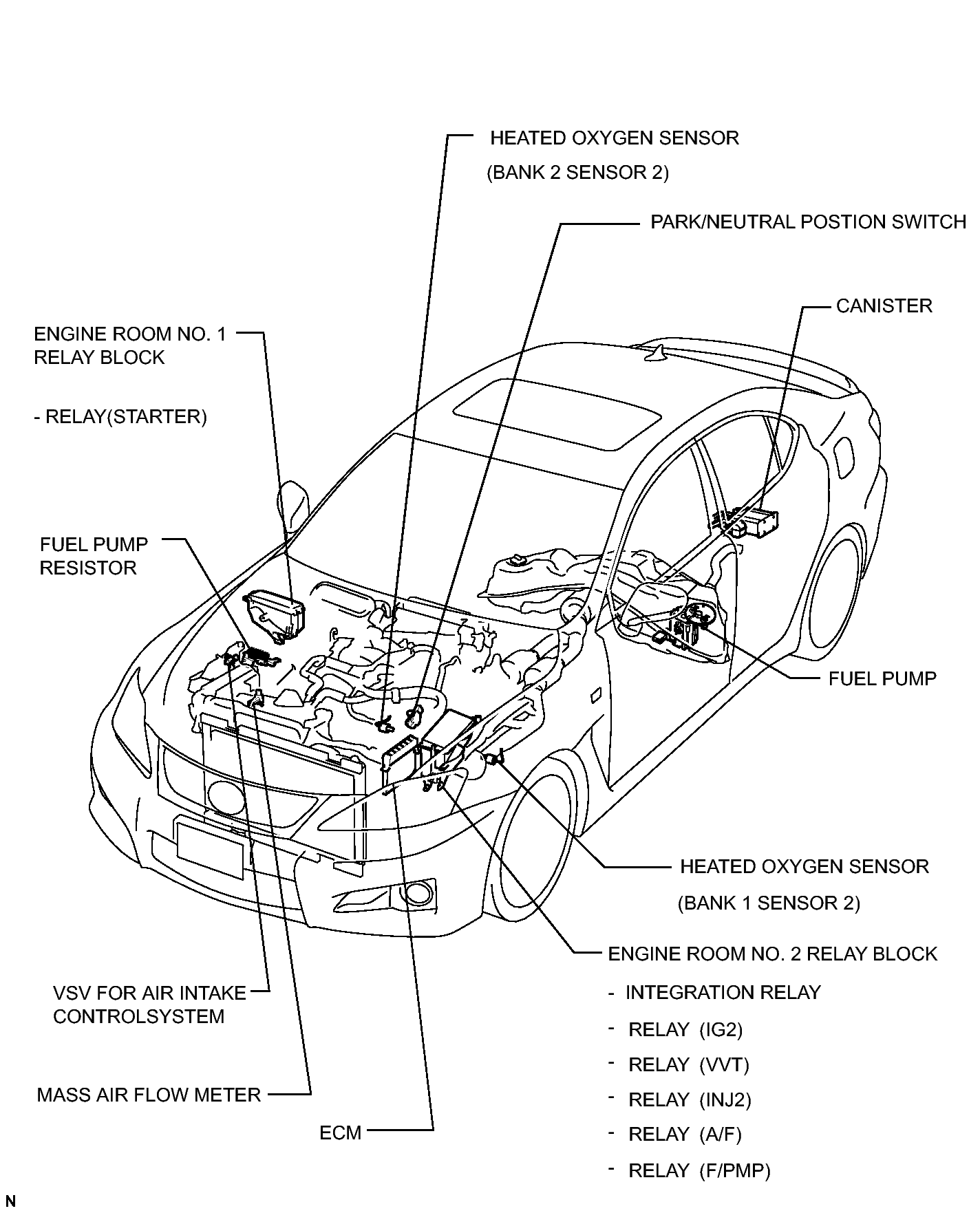

Fig 1: Locating SFI System Parts (1 Of 6)

GTY130118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Locating SFI System Parts (2 Of 6)

GTY148717

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Locating SFI System Parts (3 Of 6)

GTY122066

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Locating SFI System Parts (4 Of 6)

GTY126428

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

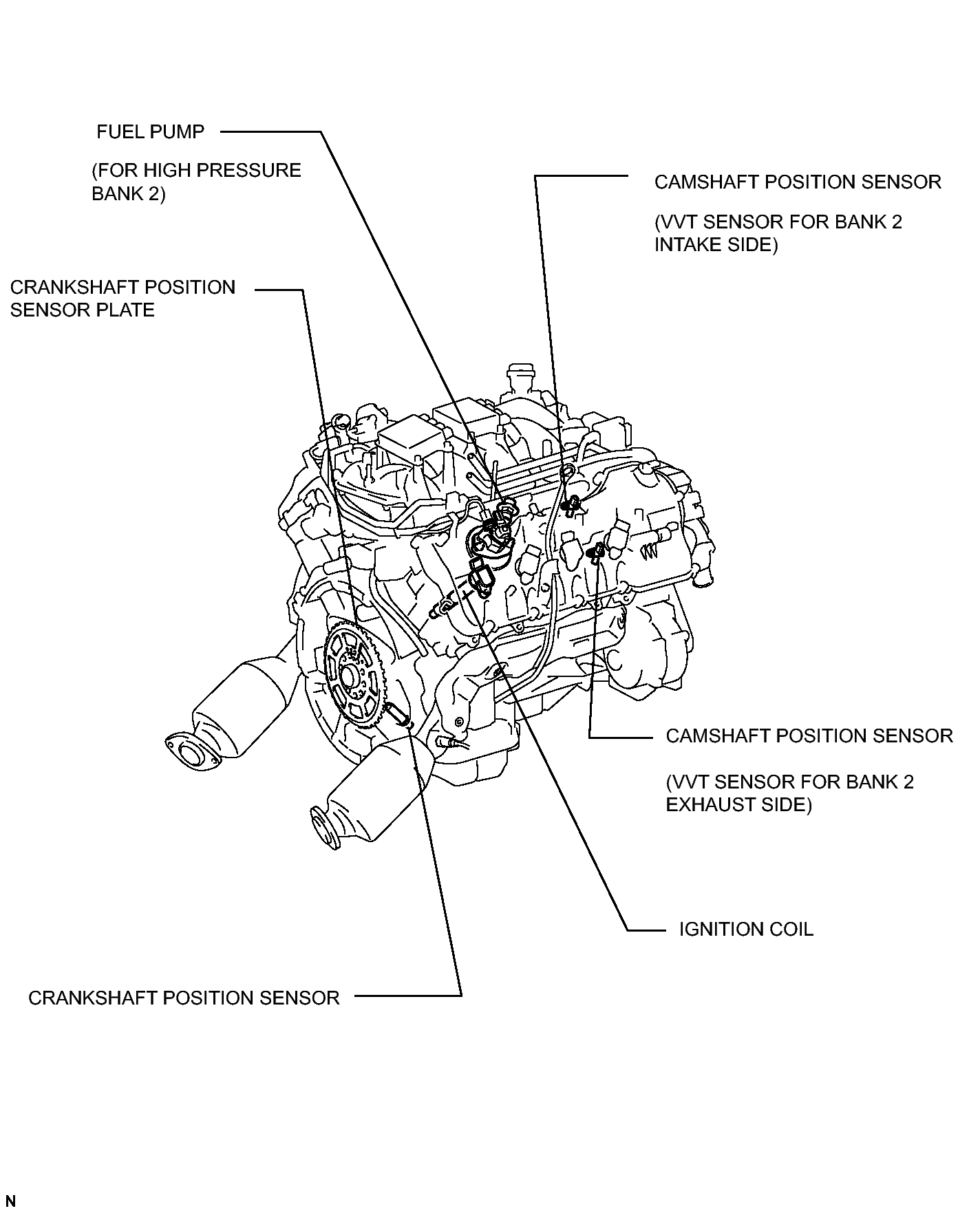

Fig 1: Locating SFI System Parts (5 Of 6)

GTY148718

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

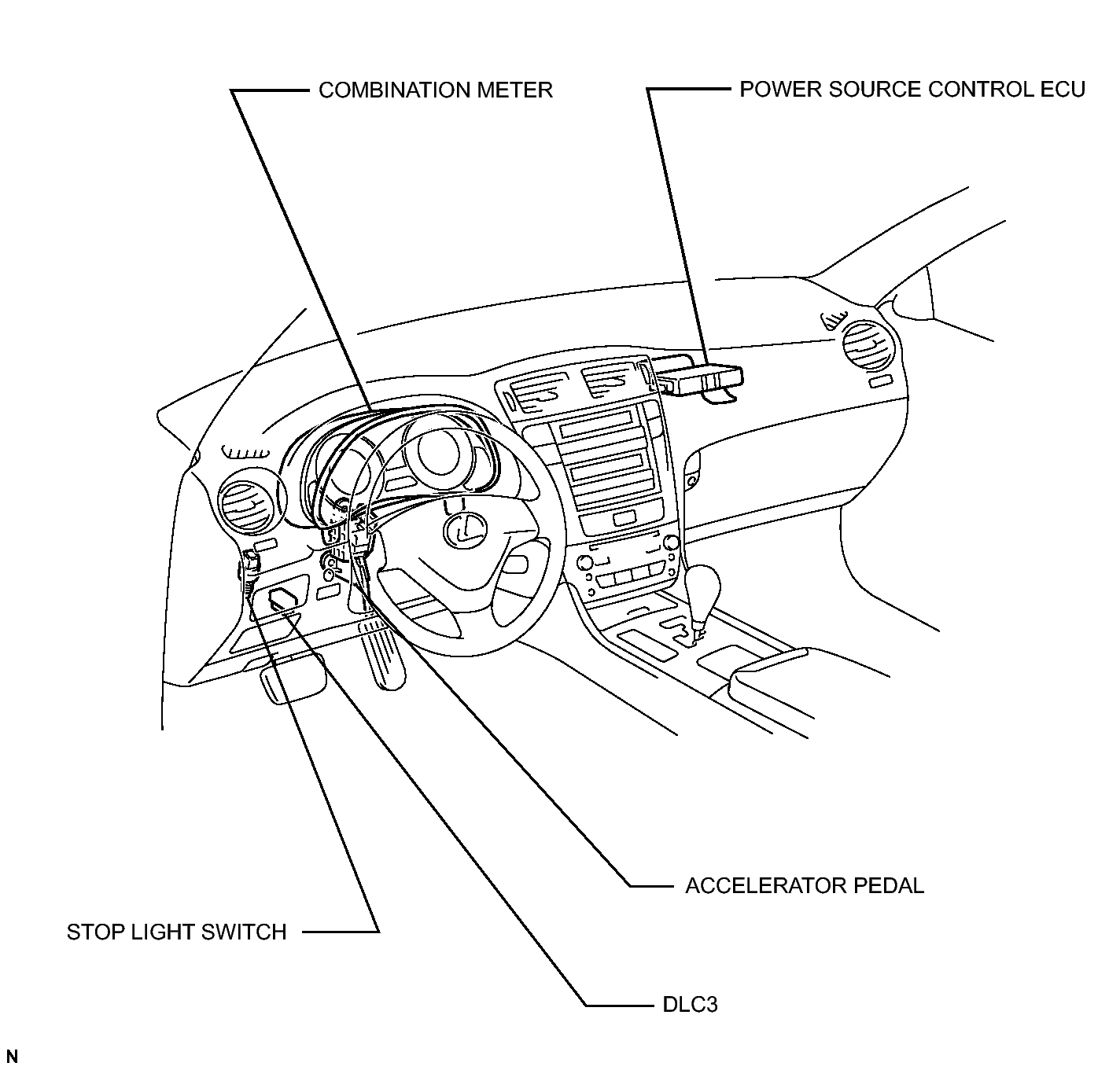

Fig 1: Locating SFI System Parts (6 Of 6)

GTY120892

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
