Valve Body Assembly: Components: Illustration

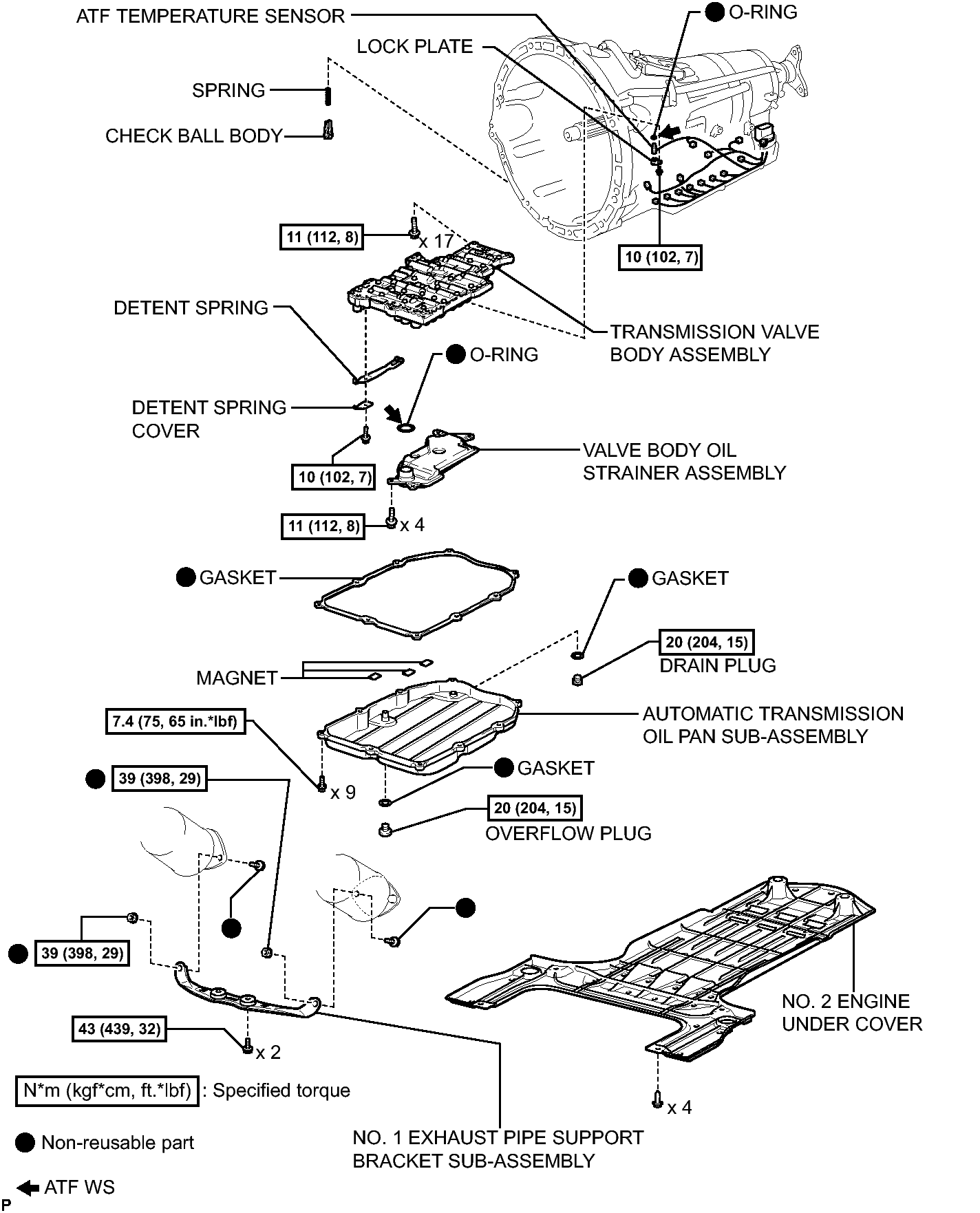

Fig 1: Identifying Valve Body Assembly Replacement Components (1 Of 2) with Torque Specifications
GTY108951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

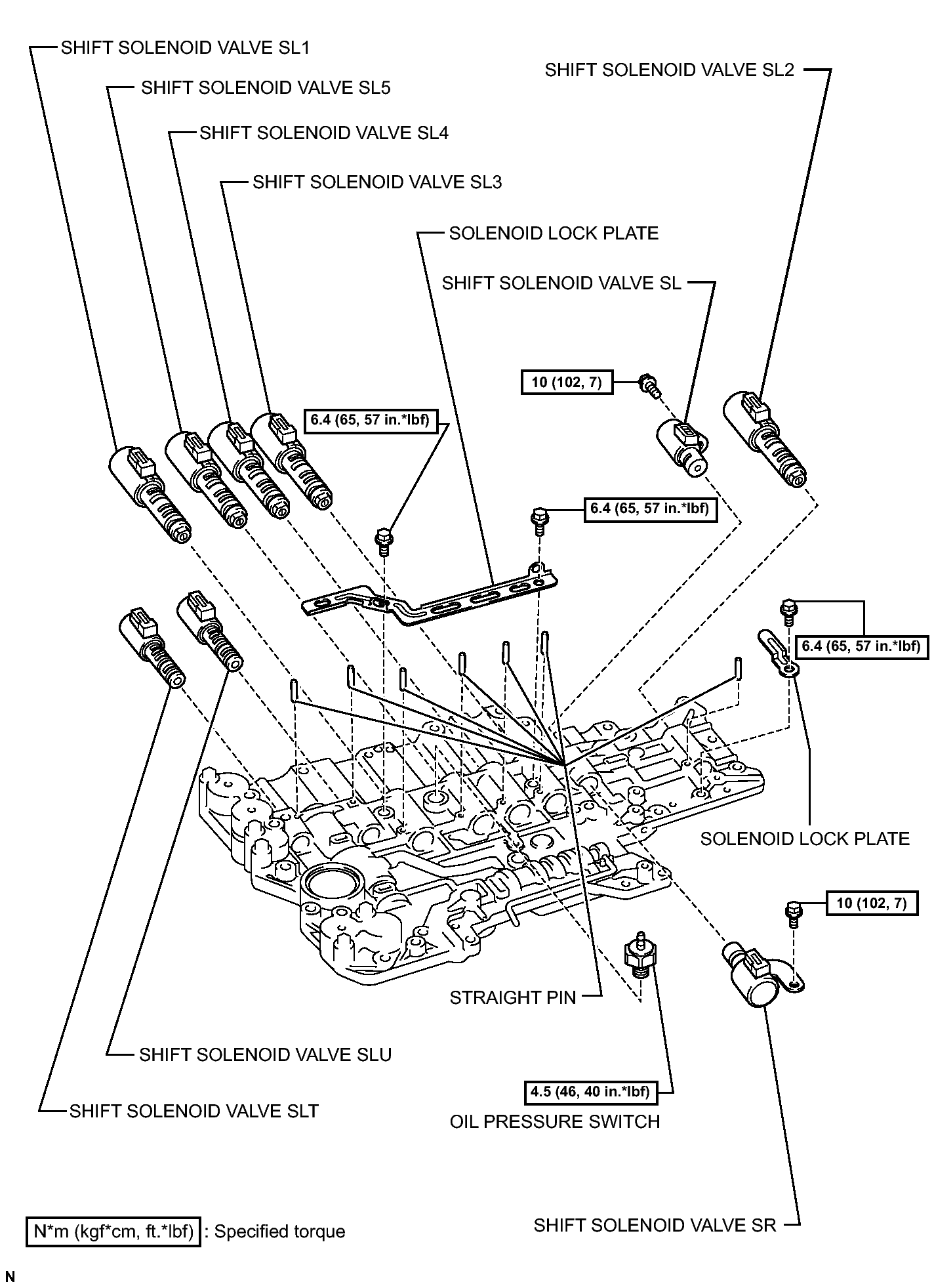

Fig 1: Identifying Valve Body Assembly Replacement Components (2 Of 2) with Torque Specifications
GTY107372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
