Headlight Assembly: Components

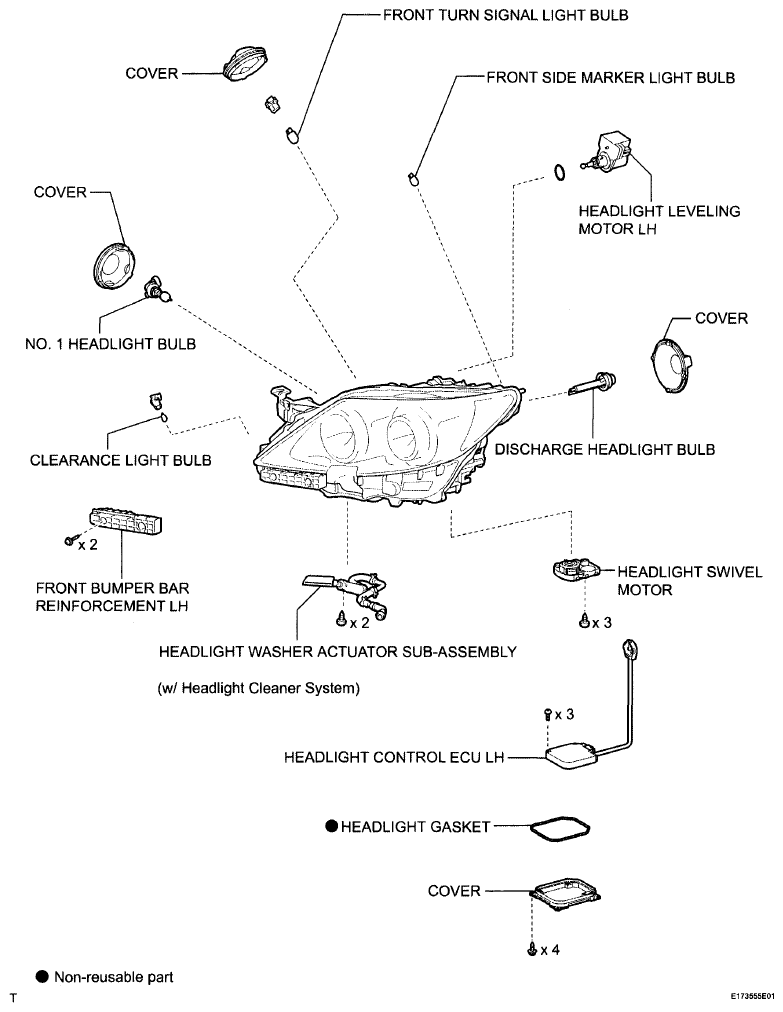

Fig 1: Identifying Headlight Assembly Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Headlight Assembly Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Upper And Lower Headlight Protector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
