Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Door Lock
›
Smart Access System With Push-Button Start
›
All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate
›
Wiring Diagram
All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate: Wiring Diagram

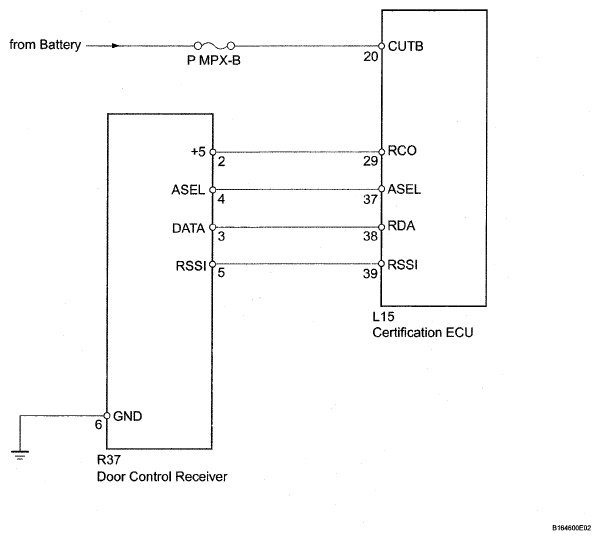

Fig 1: Door Control Receiver And Certification ECU - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
