Inspection Procedure

  1. CHECK POWER DOOR LOCK OPERATION
    1. When the master switch assembly's door control switch is operated, check that the locked doors unlock.

      Result

      RESULT CHART

      Result Proceed to
      Door locks operate normally OK
      Door locks do not operate normally NG

      NG:  GO TO POWER DOOR LOCK CONTROL SYSTEM

      OK: Go to next step

  2. READ VALUE USING TECHSTREAM
    1. Using the Techstream, read the Data List.

      Rear Left Door (Rear door ECU LH)

      REAR LEFT DOOR (REAR DOOR ECU LH) DATA LIST REFERENCE

      Tester Display Measurement Item/Display Normal Condition Diagnostic Note
      Entry Sensor Rear LH side door touch sensor/ON or OFF ON: Rear LH side door sensor is touched
      OFF: Rear LH side door sensor is not touched
      -
      Outside Handle Trigger SW Rear LH side door outside handle lock switch/ON or OFF ON: Rear LH side door outside handle lock switch is pushed
      OFF: Rear LH side door outside handle lock switch is not pushed
      -

      Result

      RESULT CHART

      Result Proceed to
      Display does not change according to manual operation A
      Display changes according to manual operation B

      B:  Go to step  9

      A: Go to next step

  3. CHECK REAR DOOR ECU LH
    Fig 1: Identifying Rear Door ECU LH O14 Connector Terminals
    G04951665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the voltage according to the value (s) in the table below.

      Standard voltage

      VOLTAGE SPECIFICATION

      Tester Connection Condition Specified Condition
      O14-12 (OSCB) - O14-15 (OSCE) Always 11 to 14 V

      NG: REPLACE REAR DOOR ECU LH  (See REMOVAL )

      OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR ECU LH)
    Fig 2: Identifying O14 ECU Connector Terminal And D2 Oscillator Connector Terminals
    G04951666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the d2 oscillator connector.
    2. Disconnect the O14 ECU connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      d2-1 (B) - O14-12 (OSCB) Always Below 1 Ω
      d2-6 (SENS) - O14-14 (SENS) Always Below 1 Ω
      d2-7 (GND) - O14-15 (OSCE) Always Below 1 Ω
      d2-1 (B) - Body ground Always 10 kΩ or higher
      d2-6 (SENS) - Body ground Always 10 kΩ or higher
      d2-7 (GND) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR OUTSIDE HANDLE LH)
    Fig 3: Identifying D2 Oscillator Connector And D1 Handle Connector Terminals
    G04951667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the d2 oscillator connector.
    2. Disconnect the d1 handle connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      d2-2 (SGT8) - d1-6 (SGT7) Always Below 1 Ω
      d2-9 (TRG-) - d1-1 (TRG-) Always Below 1 Ω
      d2-2 (SGT8) - Body ground Always 10 kΩ or higher
      d2-9 (TRG-) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  6. CHECK HARNESS AND CONNECTOR (REAR DOOR ECU LH - REAR DOOR OUTSIDE HANDLE LH)

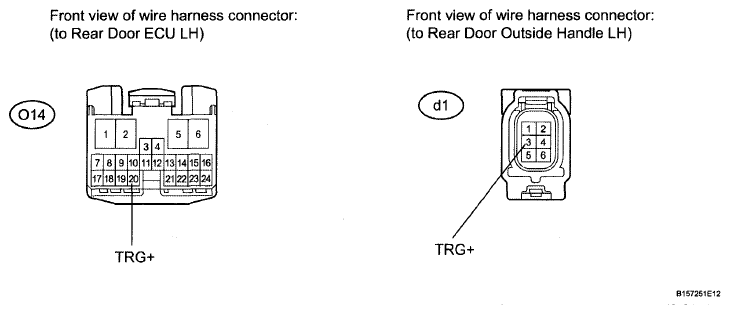

    Fig 4: Identifying O14 ECU Connector Terminal And D1 Handle Connector Terminal
    G06193974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the O14 ECU connector.
    2. Disconnect the d1 handle connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      d1-3 (TRG+) - O14-20 (TRG+) Always Below 1 Ω
      d1-3 (TRG+) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  7. CHECK DOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
    1. Replace the door electrical key oscillator with a new one or normally functioning one (see REMOVAL ).
    2. Check that the entry function operates normally.

      OK: Operates normally

      NG: Go to step 8

      OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

  8. CHECK REAR DOOR OUTSIDE HANDLE LH (OPERATION)
    1. Replace the rear door outside handle LH with a new one or normally functioning one (see REMOVAL ).
    2. Check that the entry function operates normally.

      OK: Operates normally

      NG: REPLACE REAR DOOR ECU LH  (See REMOVAL )

      OK: END (REAR DOOR OUTSIDE HANDLE LH IS DEFECTIVE)

  9. CHECK WAVE ENVIRONMENT
    1. Bring the electrical key transmitter near the rear left door outside handle, and perform a rear left door entry lock and unlock operation check.
      NOTE: If the key is brought within 0.2 m (0.6 ft) of the door handle, communication is not possible.

      HINT:

      • When the electrical key transmitter is brought near the rear left passenger door outside handle, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
        Fig 5: Identifying Distance Between Key And Rear Left Door Outside Handle
        G04951626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • If the inspection result is that the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

        Result

        RESULT CHART

        Result Proceed to
        Operation check fails A
        Operation check is normal B

        B: AFFECTED BY WAVE INTERFERENCE

        A: Go to next step

  10. KEY DIAGNOSTIC MODE
    1. Diagnostic mode inspection (rear door LH outside oscillator)
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical/Smart Access/Smart Communication Check/Overhead + Passenger Side Rear.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
        Fig 6: Identifying Distance Between Key And Rear Door LH Handle
        G04951631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        If the buzzer sounds, it can be determined that the rear left seat outside transmitter is operating normally.

        OK: Wireless door lock buzzer sounds

        NG: Go to step 11

        OK: END (CERTIFICATION ECU IS DEFECTIVE)

  11. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR CERTIFICATION ECU)
    Fig 7: Identifying D2 Oscillator Connector And L16 ECU Connector Terminals
    G04951669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the d2 oscillator connector.
    2. Disconnect the L16 ECU connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      d2-5 (CLGB) - L16-9 (CG3B) Always Below 1 Ω
      d2-10 (CLG) - L16-8 (CLG3) Always Below 1 Ω
      d2-5 (CLGB) - Body ground Always 10 kΩ or higher
      d2-10 (CLG) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  12. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR ECU LH)
    Fig 8: Identifying O14 ECU Connector Terminal And D2 Oscillator Connector Terminal
    G04951640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the O14 ECU connector.
    2. Disconnect the d2 oscillator connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      d2-4 (SEL) - O14-16 (SEL) Always Below 1 Ω
      d2-4 (SEL) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  13. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - REAR DOOR OUTSIDE HANDLE LH)
    Fig 9: Identifying D2 Oscillator Connector And D1 Handle Connector Terminals
    G04951671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the d2 oscillator connector.
    2. Disconnect the d1 handle connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      d2-3 (ANT7) - d1-5 (ANT7) Always Below 1 Ω
      d2-8 (ANT8) - d1-2 (ANT8) Always Below 1 Ω
      d2-3 (ANT7) - Body ground Always 10 kΩ or higher
      d2-8 (ANT8) - Body ground Always 10 kΩ or higher

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  14. CHECK DOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
    1. Replace the door electrical key oscillator with a new one or normally functioning one (see REMOVAL ).
    2. Check that the entry function operates normally.

      OK: Operates normally

      NG: Go to step 15

      OK: END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

  15. CHECK REAR DOOR OUTSIDE HANDLE LH (OPERATION)
    1. Replace the rear door outside handle LH with a new one or normally functioning one (see REMOVAL ).
    2. Check that the entry function operates normally.

      OK: Operates normally

      NG: Go to step 16

      OK: END (REAR DOOR OUTSIDE HANDLE LH IS DEFECTIVE)

  16. CHECK REAR DOOR ECU LH (OPERATION)
    1. Replace the rear door ECU LH with a new one or normally functioning one (see REMOVAL ).
    2. Check that the entry function operates normally.

      OK: Operates normally

      NG: REPLACE CERTIFICATION ECU

      OK: END (REAR DOOR ECU LH IS DEFECTIVE)
