Parts Location

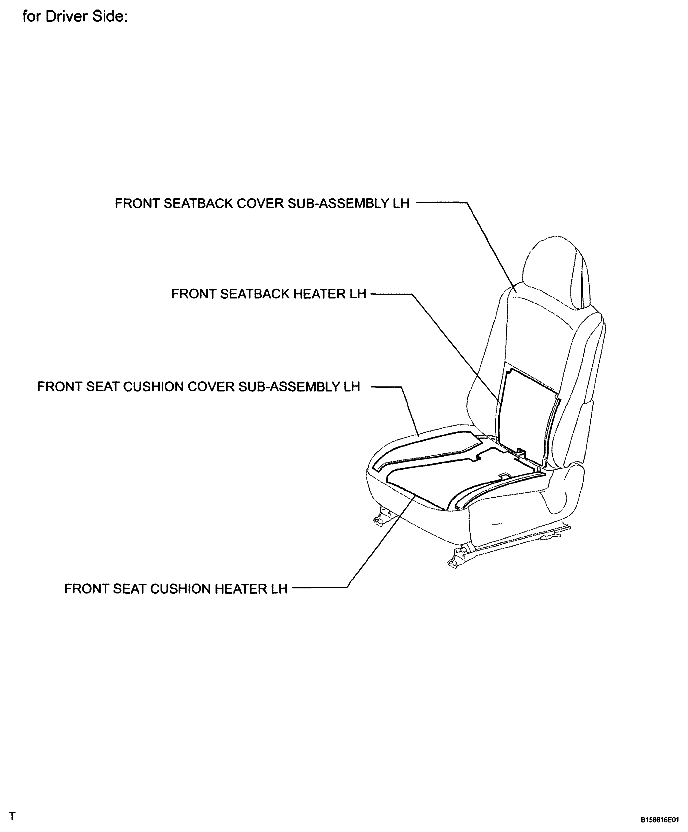

Fig 1: Identifying Climate Control Seat System Parts Location (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

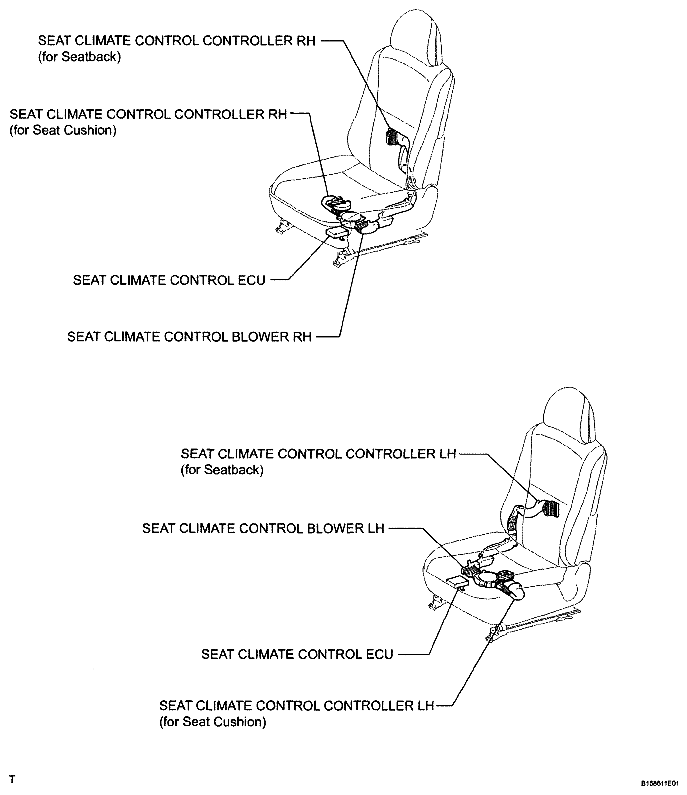

Fig 2: Identifying Climate Control Seat System Parts Location (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

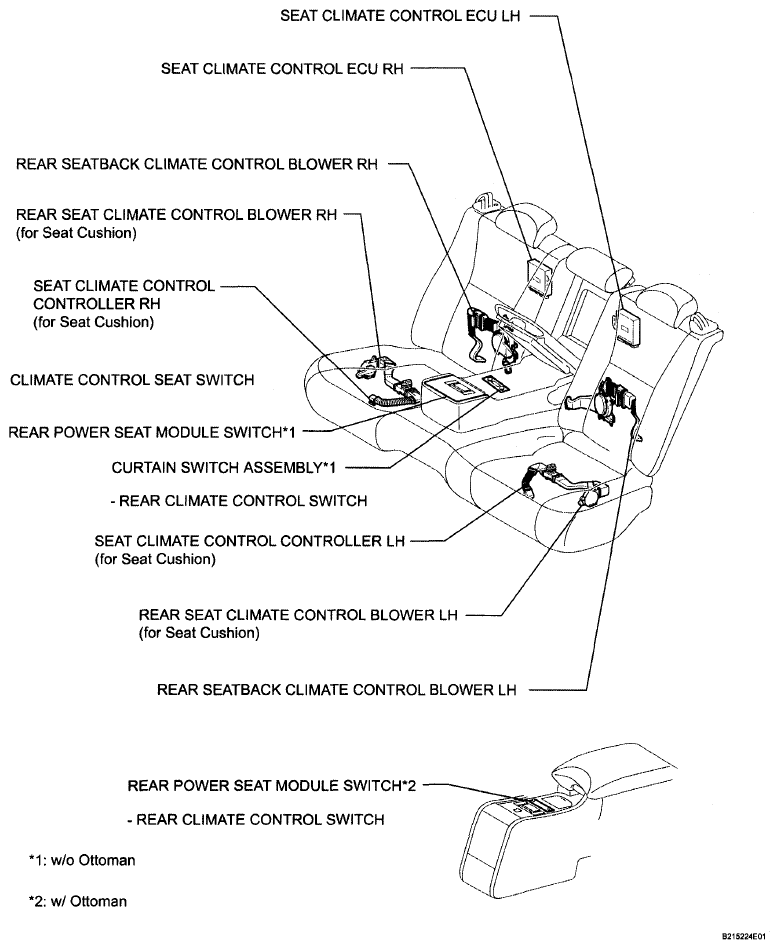

Fig 3: Identifying Climate Control Seat System Parts Location (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Climate Control Seat System Parts Location (4 Of 6)

Fig 5: Identifying Climate Control Seat System Parts Location (5 Of 6)

Fig 6: Identifying Climate Control Seat System Parts Location (6 Of 6)
