System Diagram

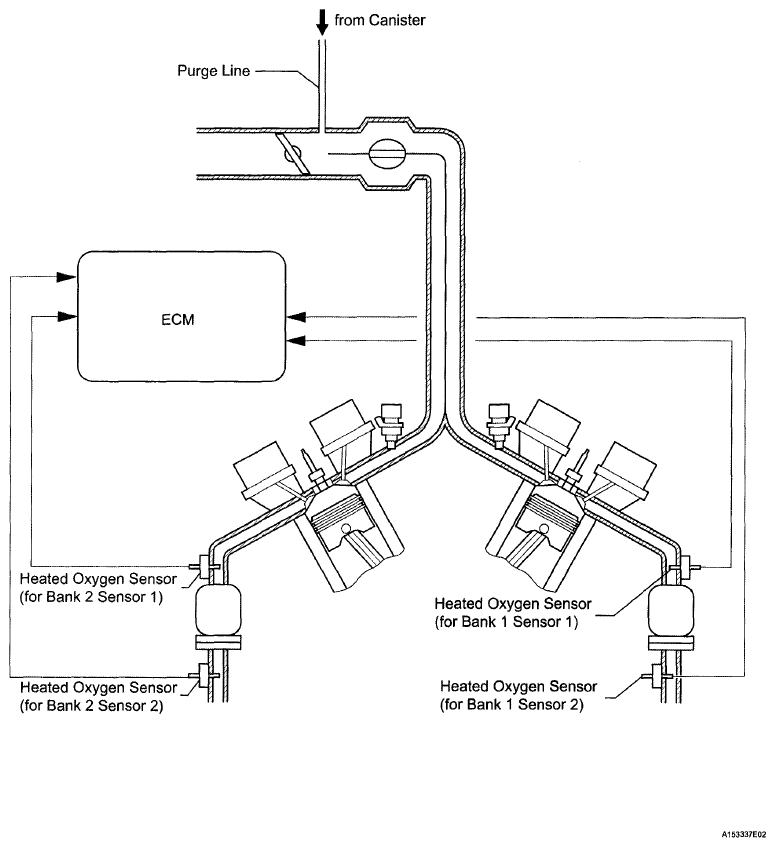

Fig 1: Emission Control - System Diagram (1 Of 2)
G06196182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Emission Control - System Diagram (2 Of 2)
G04943703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

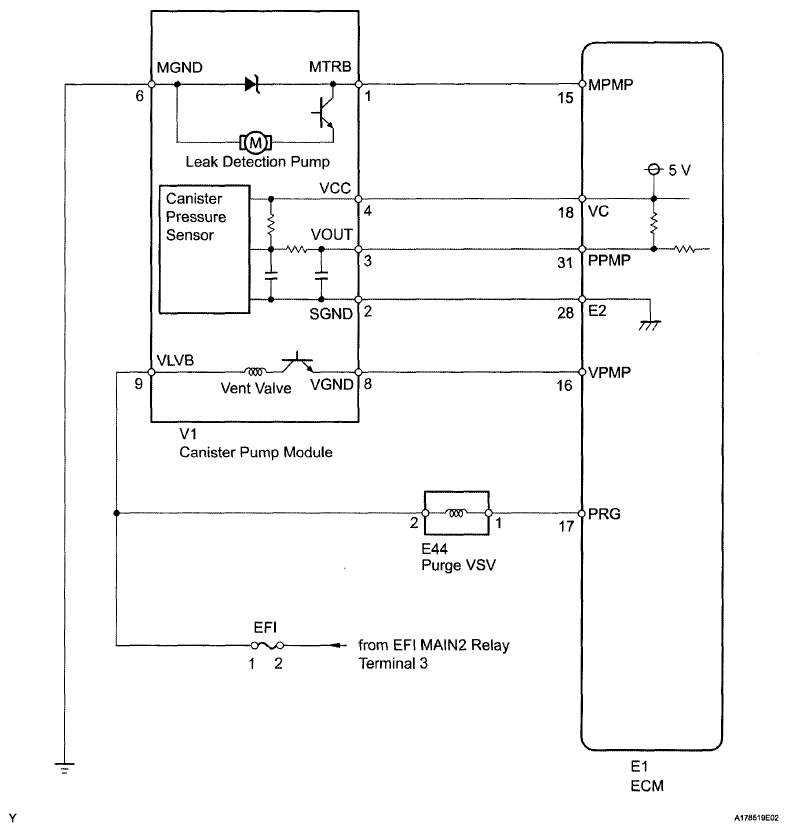

Fig 3: Emission Control - Wiring Diagram
G06196184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
