Home › Lexus › 2009 › LS 460 AWD › Repair and Diagnosis › Engine Mechanical › Auxiliary Emission Control Systems › PCV Valve › Components

PCV Valve: Components

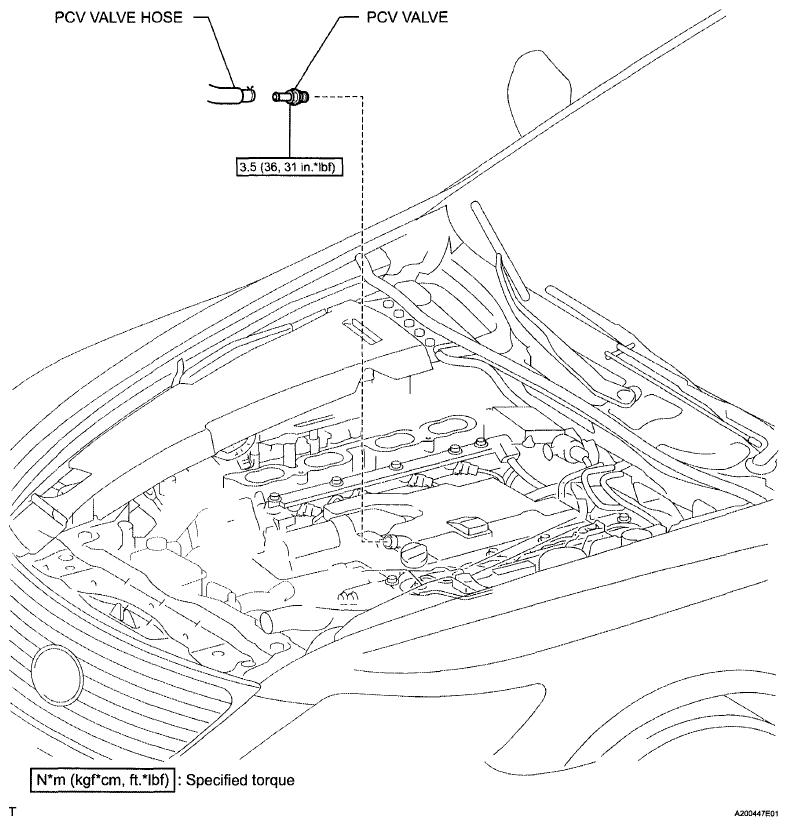

Fig 1: PCV Valve Replacement Components With Torque Specifications
G06196215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
