FUEL INJECTOR (for Port Injection): Components

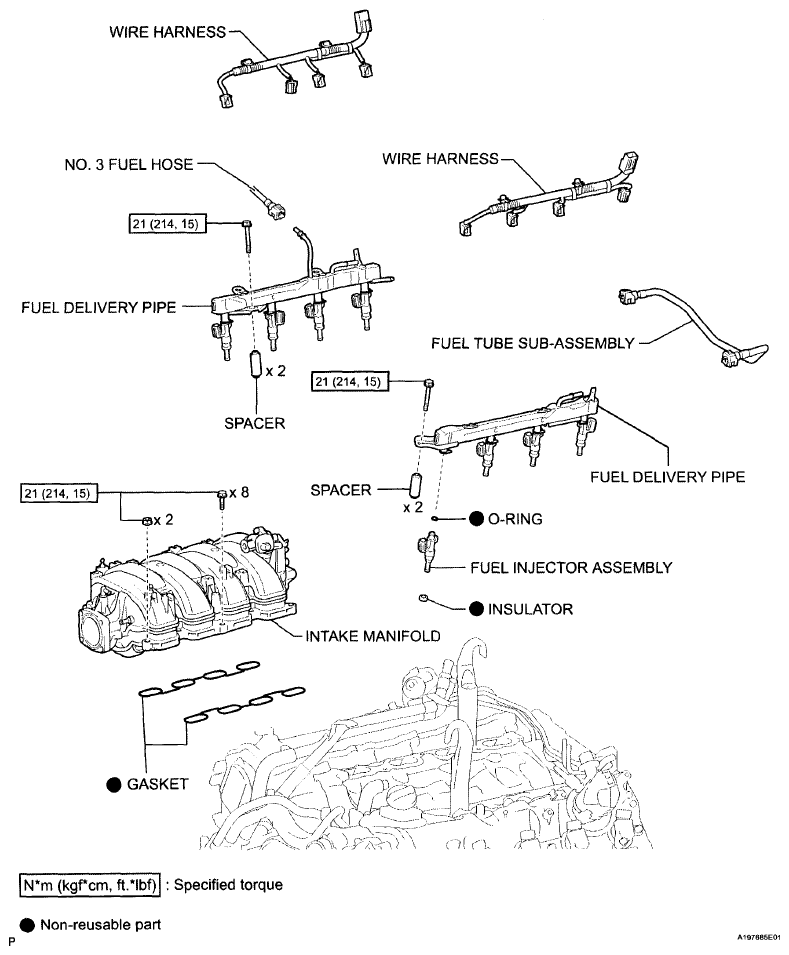

Fig 1: Fuel Injector Replacement Components - Port Injection With Torque Specifications
G06186563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
