Blower Unit: Installation: Installation

WARNING: This page is about a different car, the 2010 Lexus LS 460L and 2010 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL AIR FILTER
    Fig 1: Identifying Filter And Claws
    GTY130047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 2 claws to install the filter.
  2. INSTALL BLOWER WITH FAN MOTOR SUB-ASSEMBLY
    Fig 2: Locating Motor Screws
    GTY152483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the motor with the 3 screws.
  3. INSTALL DAMPER SERVO SUB-ASSEMBLY
    Fig 3: Identifying Damper Servo And Screws
    GTY152482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the damper servo with the 3 screws.
  4. INSTALL BLOWER ASSEMBLY

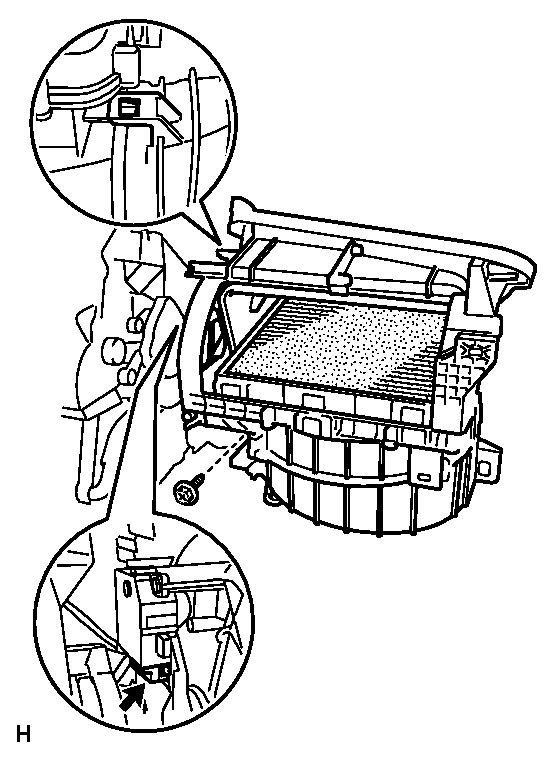

    Fig 4: Identifying Blower Unit Connector And Screw
    GTY152488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the claw to install the blower unit.
    2. Connect the connector.
    3. Install the screw.
  5. INSTALL AIR CONDITIONING UNIT
    1. Install the air conditioning unit. Refer to INSTALLATION .
