Air Conditioning: Condenser: Components

Fig 1: Identifying Condenser Replacement Components With Torque Specification (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

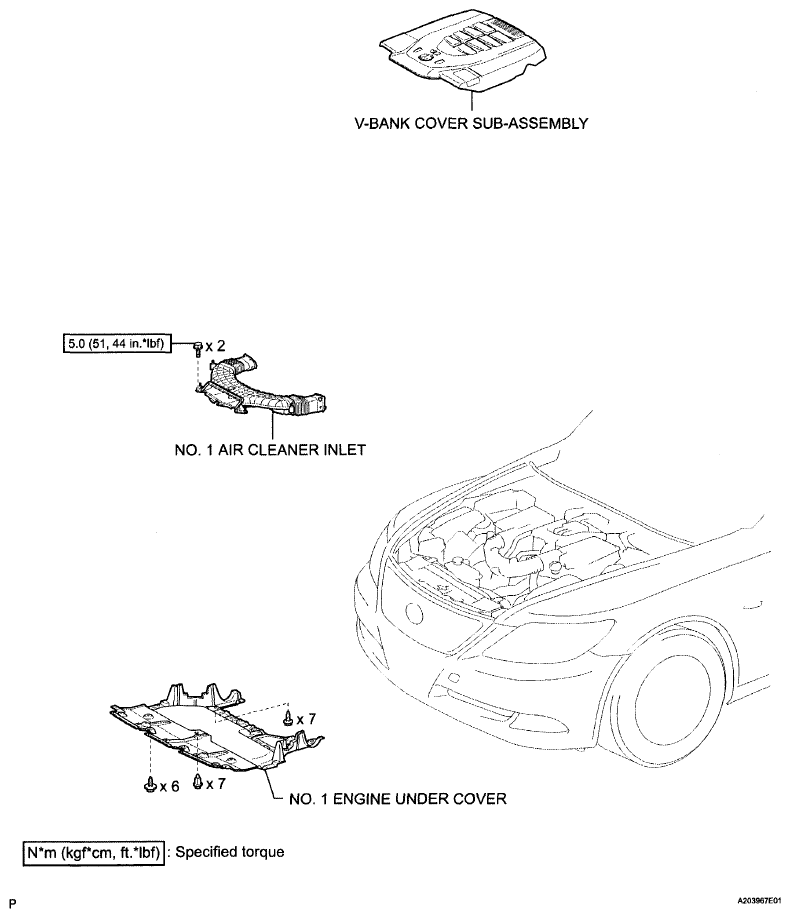

Fig 2: Identifying Condenser Replacement Components With Torque Specification (2 Of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

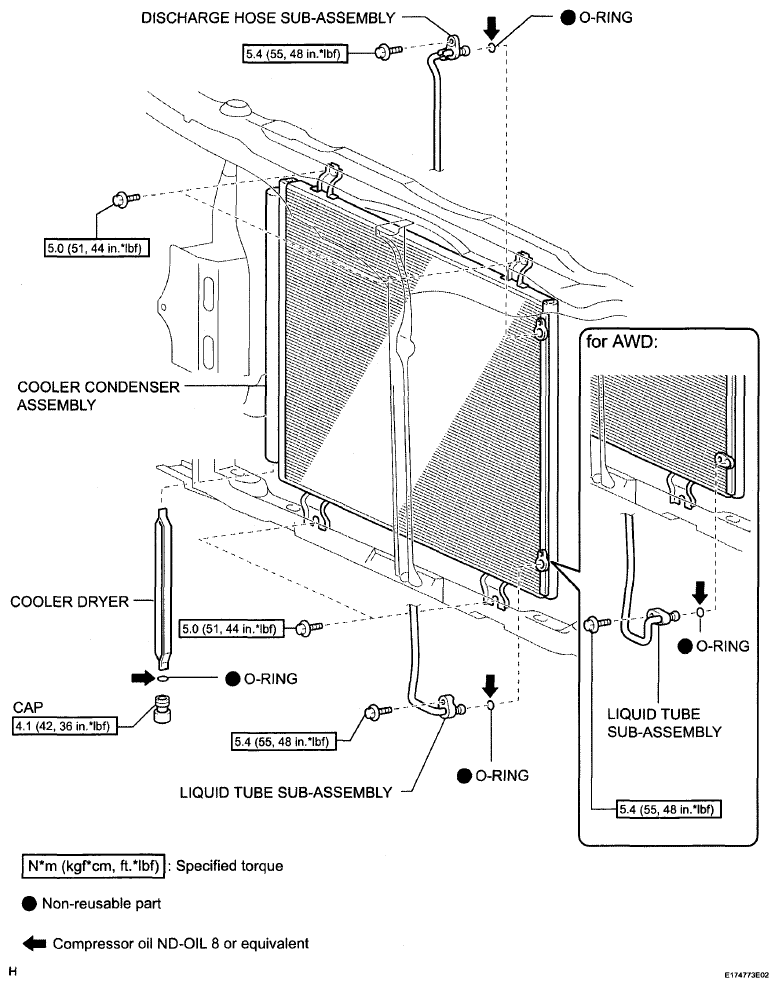

Fig 3: Identifying Condenser Replacement Components With Torque Specification (3 Of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Condenser Replacement Components With Torque Specifications (4 Of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
