Rear Stabilizer Bar: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

  1. INSTALL STABILIZER BAR REAR
    1. Make sure the bracket's arrows face the front of the vehicle.
      Fig 1: Identifying Rear Stabilizer Bar Bracket Installation Position
      G04949536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. First temporarily install bolt 1. Then install bolts 2, 3 and 4. Then tighten bolt 5.

      Torque: 48 N*m (489 kgf*cm, 35 ft.*lbf)

  2. INSTALL REAR STABILIZER LINK ASSEMBLY LH
    1. Install the stabilizer link with the 2 nuts and bolt.

      Torque: 89 N*m (908 kgf*cm, 66 ft.*lbf) for stabilizer bar side

      26 N*m (265 kgf*cm, 19 ft.*lbf) for No. 2 suspension arm side

  3. INSTALL REAR STABILIZER LINK ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

    Fig 2: Locating Stabilizer Link With Nuts And Bolt
    G04949537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY
    1. Slowly raise the suspension member jack, and install the suspension member to the body.
    2. for Sports package
      Fig 3: Supporting Crossmember With Jack
      G04949532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

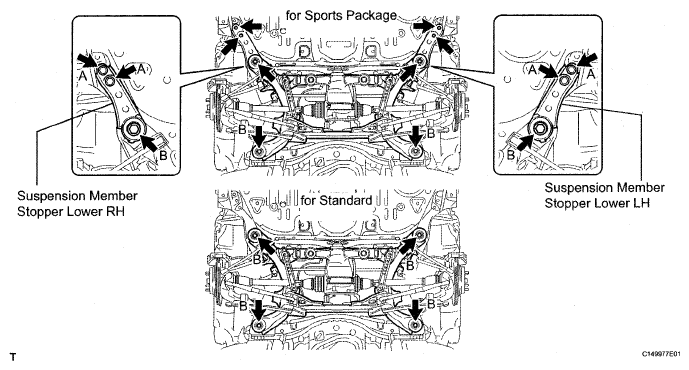

      Fig 4: Locating Suspension Member Stopper Lower
      G04949533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the 2 member stoppers with the 4 bolts labeled B, and install the 4 bolts labeled A.

        Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf) for bolt labeled A

        127 N*m (1295 kgf*cm, 94 ft.*lbf) for bolt labeled B

    3. for Standard
      1. Install the 4 bolts labeled B.

        Torque: 127 N*m (1295 kgf*cm, 94 ft.*lbf)

  5. CONNECT PNEUMATIC CYLINDER WITH REAR SHOCK ABSORBER ASSEMBLY LH (w/ Air Suspension) (See  INSTALLATION   )
  6. CONNECT PNEUMATIC CYLINDER WITH REAR SHOCK ABSORBER ASSEMBLY RH (w/ Air Suspension)

    HINT:

    Use the same procedures described for the LH side.

  7. CONNECT REAR SHOCK ABSORBER ASSEMBLY LH (w/o Air Suspension) (See  INSTALLATION   )
  8. CONNECT REAR SHOCK ABSORBER ASSEMBLY RH (w/o Air Suspension)

    HINT:

    Use the same procedures described for the LH side.

  9. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH  (See INSTALLATION )
  10. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY RH

    HINT:

    Use the same procedures described for the LH side.

  11. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY  (See INSTALLATION )
  12. INSPECT AND ADJUST NO. 2 AND NO. 3 JOINT ANGLE  (See INSTALLATION )
  13. INSTALL PROPELLER SHAFT HEAT INSULATOR  (See INSTALLATION )
  14. INSTALL FRONT FLOOR NO. 1 HEAT INSULATOR  (See INSTALLATION )
  15. INSTALL TAILPIPE RH  (See INSTALLATION )
  16. INSTALL TAILPIPE LH  (See INSTALLATION )
  17. INSTALL FRONT EXHAUST PIPE ASSEMBLY  (See INSTALLATION )
  18. INSTALL FRONT FLOOR BRACE CENTER  (See INSTALLATION )
  19. INSTALL HEATED OXYGEN SENSOR (for Sensor 2)  (See INSTALLATION )
  20. INSPECT FOR GAS LEAK
  21. INSTALL PARKING BRAKE CABLE
    1. Install the cable with the 2 nuts to the vehicle side.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  22. CONNECT NO. 1 ACTUATOR HARNESS CLAMP
    1. Connect the 2 clamps and connector.
  23. INSTALL REAR SPEED SENSOR LH  (See INSTALLATION )
  24. INSTALL REAR SPEED SENSOR RH

    HINT:

    Use the same procedures described for the LH side.

  25. INSTALL REAR WHEEL HOUSE LINER LH
    1. Install the liner with the 3 screws, 11 nuts, 2 clips to the vehicle side.
  26. INSTALL REAR WHEEL HOUSE LINER RH

    HINT:

    Use the same procedures described for the LH side.

  27. INSTALL REAR FLOOR SIDE MEMBER COVER RH  (See INSTALLATION )
  28. INSTALL REAR FLOOR SIDE MEMBER COVER LH  (See INSTALLATION )
  29. INSTALL NO. 5 ROCKER PANEL MOLDING PROTECTOR  (See INSTALLATION )
  30. INSTALL NO. 6 ROCKER PANEL MOLDING PROTECTOR  (See INSTALLATION )
  31. INSTALL NO. 1 DIFFERENTIAL SUPPORT PROTECTOR  (See INSTALLATION )
  32. INSTALL NO. 2 DIFFERENTIAL SUPPORT PROTECTOR  (See INSTALLATION )
  33. INSTALL FLOOR NO. 1 UNDER COVER  (See INSTALLATION )
  34. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH  (See INSTALLATION )
  35. INSTALL REAR FLOOR FINISH PLATE  (See INSTALLATION )
  36. INSTALL DECK TRIM SIDE BOARD LH  (See INSTALLATION )
  37. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY  (See INSTALLATION )
  38. INSTALL REAR WHEEL

    Torque: 140 N*m (1428 kgf*cm, 104 ft.*lbf)

  39. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  40. INSTALL COWL TOP VENTILATOR LOUVER RH  (See INSTALLATION )
  41. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  42. CHECK SUSPENSION CONTROL SYSTEM (w/ Air Suspension)
    1. Check the suspension control system (see OPERATION CHECK ).
  43. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
    1. Inspect and adjust the rear wheel alignment (see ADJUSTMENT  ).
  44. CHECK SPEED SENSOR SIGNAL
    1. Check the speed sensor signal (see TEST MODE PROCEDURE ).
  45. ADJUST HEADLIGHT ASSEMBLY
    1. Adjust the headlight (see ADJUSTMENT ).
