Lexus
›
2009
›
LS 460 RWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transaxle (Aa80E)
›
Automatic Transmission System
›
Transmission Control Switch Circuit
›
Wiring Diagram
Transmission Control Switch Circuit: Wiring Diagram

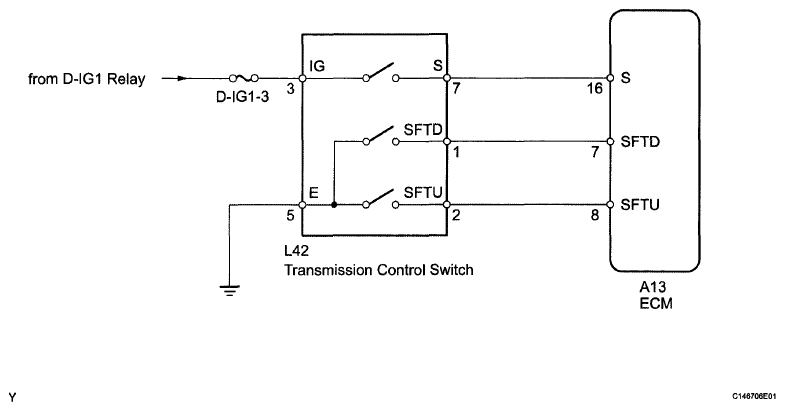

Fig 1: Transmission Control Switch And ECM - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
