Inspection Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
      CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
      NOTE:
      • After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
      • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
  2. CHECK CAN BUS WIRE (MAIN WIRE FOR DISCONNECTION, BUS LINE FOR SHORT CIRCUIT)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition Resistance of Malfunction
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 54 to 69 Ω Below 53 Ω: Short in line
      Engine switch off 70 Ω or higher: Open in CAN main bus line
      A50-3 (CANP) - A50-1 (FMB3) Engine switch off 6 kΩ or higher Below 6 kΩ: +B short
      A50-4 (CANN) - A50-1 (FMB3) Engine switch off 6 kΩ or higher Below 6 kΩ: +B short
      A50-3 (CANP) - A50-2 (E) Engine switch off 200 Ω or higher Below 200 Ω: Ground short
      A50-4 (CANN) - A50-2 (E) Engine switch off 200 Ω or higher Below 200 Ω: Ground short
      Fig 1: Identifying A50 Front Controller Connector Terminals
      G06198544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE

      Result Proceed to
      NG
      • Open in CAN main wire
      		 A
      NG
      • Short in line
      • +B short
      • Ground short
      		 B
      OK C

      B:  Go to step  21

      C:  Go to step  94

      A: Go to next step

  3. CHECK FOR OPEN IN CAN MAIN BUS WIRE (NO. 10 JUNCTION CONNECTOR - FRONT CONTROLLER)
    1. Disconnect the L95 No. 10 junction connector connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      L95-11 (CANH) - L95-22 (CANL) Engine switch off 108 to 132 Ω
      Fig 2: Identifying L95 No. 10 Junction Connector Terminals
      G06198545Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  5

      OK: Go to next step

  4. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 10 JUNCTION CONNECTOR - REAR JUNCTION BLOCK ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      L95-4 (CANH) - L95-15 (CANL) Engine switch off 108 to 132 Ω
      Fig 3: Identifying L95 No. 10 Junction Connector Terminals
      G06198546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  13

      OK: REPLACE NO. 10 JUNCTION CONNECTOR

  5. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  6. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 9 JUNCTION CONNECTOR - FRONT CONTROLLER)
    1. Disconnect the R48 No. 9 junction connector connector. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      R48-3 (CANH) - R48-14 (CANL) Engine switch off 108 to 132 Ω
      Fig 4: Identifying R48 No. 9 Junction Connector Terminals
      G06198547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  8

      OK: Go to next step

  7. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 9 JUNCTION CONNECTOR - NO. 10 JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      R48-4 (CANH) - R48-15 (CANL) Engine switch off 108 to 132 Ω
      Fig 5: Identifying R48 No. 9 Junction Connector Terminals
      G06198548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 9 JUNCTION CONNECTOR - NO. 10 JUNCTION CONNECTOR)

      OK: REPLACE NO. 9 JUNCTION CONNECTOR

  8. CONNECT CONNECTOR
    1. Reconnect the R48 No. 9 junction connector connector.
  9. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 8 JUNCTION CONNECTOR - FRONT CONTROLLER)
    1. Disconnect the R57 No. 8 junction connector connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      R57-1 (CANH) - R57-3 (CANL) Engine switch off 108 to 132 Ω
      Fig 6: Identifying R57 No. 8 Junction Connector Terminals
      G06198549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  11

      OK: Go to next step

  10. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 8 JUNCTION CONNECTOR - NO. 9 JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      R57-5 (CANH) - R57-7 (CANL) Engine switch off 108 to 132 Ω
      Fig 7: Identifying R57 Connector Terminal
      G06198550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 8 JUNCTION CONNECTOR - NO. 9 JUNCTION CONNECTOR)

      OK: REPLACE NO. 8 JUNCTION CONNECTOR

  11. CONNECT CONNECTOR
    1. Reconnect the R57 No. 8 junction connector connector.
  12. CHECK FOR OPEN IN CAN BUS MAIN WIRE (FRONT CONTROLLER - NO. 8 JUNCTION CONNECTOR)
    1. Disconnect the A50 front controller connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 108 to 132 Ω
      Fig 8: Identifying A50 Front Controller Connector Terminals
      G06198551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN MAIN WIRE CONNECTED TO FRONT CONTROLLER (FRONT CONTROLLER - NO. 8 JUNCTION CONNECTOR)

      OK: REPLACE FRONT CONTROLLER

  13. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  14. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 10 JUNCTION CONNECTOR - NO. 12 JUNCTION CONNECTOR)
    1. Disconnect the S59 No. 12 junction connector connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      S59-4 (CANH) - S59-15 (CANL) Engine switch off 108 to 132 Ω
      Fig 9: Identifying S59 No. 12 Junction Connector Terminals
      G06198552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  18

      OK: Go to next step

  15. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 12 JUNCTION CONNECTOR - REAR JUNCTION BLOCK ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      S59-3 (CANH) - S59-14 (CANL) Engine switch off 108 to 132 Ω
      Fig 10: Identifying S59 No. 12 Junction Connector Terminals
      G06198553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: Go to step 16

      OK: REPLACE NO. 12 JUNCTION CONNECTOR

  16. CONNECT CONNECTOR
    1. Reconnect the S59 No. 12 junction connector connector.
  17. CHECK FOR OPEN IN CAN BUS MAIN WIRE (REAR JUNCTION BLOCK ECU - NO. 12 JUNCTION CONNECTOR)
    1. Disconnect the S62 rear junction block ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      S62-20 (CANP) - S62-28 (CANN) Engine switch off 108 to 132 Ω
      Fig 11: Identifying S62 Rear Junction Block ECU Connector Terminals
      G06198554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN MAIN WIRE CONNECTED TO REAR JUNCTION BLOCK ECU (REAR JUNCTION BLOCK ECU - NO. 12 JUNCTION CONNECTOR)

      OK: REPLACE REAR JUNCTION BLOCK ECU

  18. CONNECT CONNECTOR
    1. Reconnect the S59 No. 12 junction connector connector.
  19. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 10 JUNCTION CONNECTOR - NO. 11 JUNCTION CONNECTOR)
    1. Disconnect the S60 No. 11 junction connector connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      S60-5 (CANH) - S60-16 (CANL) Engine switch off 108 to 132 Ω
      Fig 12: Identifying S60 No. 11 Junction Connector Terminals
      G06198555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 10 JUNCTION CONNECTOR - NO. 11 JUNCTION CONNECTOR)

      OK: Go to next step

  20. CHECK FOR OPEN IN CAN BUS MAIN WIRE (NO. 11 JUNCTION CONNECTOR - NO. 12 JUNCTION CONNECTOR)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      S60-2 (CANH) - S60-13 (CANL) Engine switch off 108 to 132 Ω
      Fig 13: Identifying S60 No. 11 Junction Connector Terminals
      G06198556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 11 JUNCTION CONNECTOR - NO. 12 JUNCTION CONNECTOR)

      OK: REPLACE NO. 11 JUNCTION CONNECTOR

  21. CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR SIDE)
    1. Disconnect the S59 No. 12 junction connector connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 108 to 132 Ω
      A50-3 (CANP) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-4 (CANN) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-3 (CANP) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      A50-4 (CANN) - L31-16 (BAT) Engine switch off 6 kΩ or higher

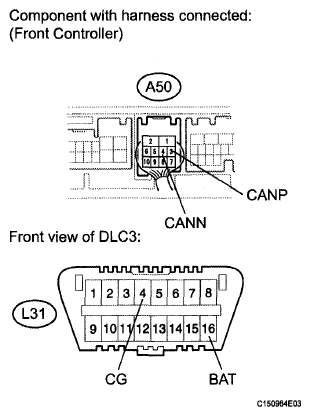

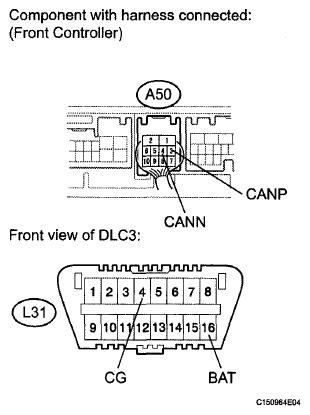

      Fig 14: Identifying A50 Front Controller And DLC3 Connector Terminals
      G06198557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  31

      OK: Go to next step

  22. CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR - REAR POWER SEAT MODULE SWITCH)
    NOTE: For vehicles without rear power seat control system or seat heater system and rear power seat control system (w/ ottoman), go to " 23 CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR - POWER TRUNK LID CONTROL ECU)".
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      S59-1 (CANH) - S59-12 (CANL) Engine switch off 1 Ω or higher OK
      S59-1 (CANH) - S59-12 (CANL) Engine switch off Below 1 Ω NG
      S59-1 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S59-12 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S59-1 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S59-12 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S59-1 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S59-12 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S59-1 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S59-12 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

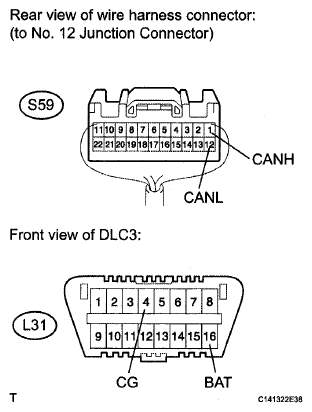

      Fig 15: Identifying S59 No. 12 Junction Connector And DLC3 Connector Terminals
      G06198558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  25

      OK: Go to next step

  23. CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR - POWER TRUNK LID CONTROL ECU)
    NOTE: For vehicles without power trunk lid system, go to " 24 CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR - REAR JUNCTION BLOCK ECU)".
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      S59-2 (CANH) - S59-13 (CANL) Engine switch off 1 Ω or higher OK
      S59-2 (CANH) - S59-13 (CANL) Engine switch off Below 1 Ω NG
      S59-2 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S59-13 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S59-2 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S59-13 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S59-2 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S59-13 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S59-2 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S59-13 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 16: Identifying S59 No. 12 Junction Connector And DLC3 Connector Terminals
      G06198559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  27

      OK: Go to next step

  24. CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR - REAR JUNCTION BLOCK ECU)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 17: Identifying S59 No. 12 Junction Connector And DLC3 Connector Terminals
      G06198560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      S59-3 (CANH) - S59-14 (CANL) Engine switch off 1 Ω or higher OK
      S59-3 (CANH) - S59-14 (CANL) Engine switch off Below 1 Ω NG
      S59-3 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S59-14 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S59-3 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S59-14 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S59-3 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S59-14 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S59-3 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S59-14 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

      NG:  Go to step  29

      OK: REPAIR OR REPLACE NO. 12 JUNCTION CONNECTOR

  25. CONNECT CONNECTOR
    1. Reconnect the S59 No. 12 junction connector connector.
  26. CHECK FOR SHORT IN CAN BUS WIRES (REAR POWER SEAT MODULE SWITCH)
    1. Disconnect the S15* rear power seat module switch connector.
    2. Disconnect the r2 rear power seat module switch connector.
    3. Measure the resistance according to the value(s) in the table below.

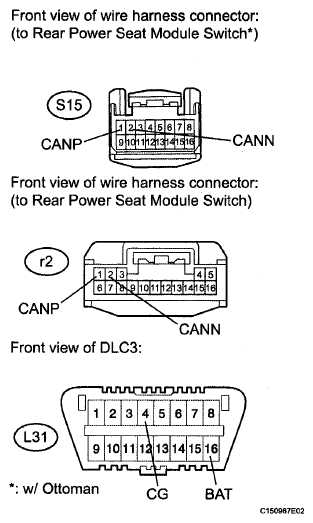

      Fig 18: Identifying S15, R2 Rear Power Seat Module Switch And DLC3 Connector Terminals
      G06198561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Result Proceed to
      S15-1 (CANP) - S15-2 (CANN)* Engine switch off 1 Ω or higher OK A
      S15-1 (CANP) - S15-2 (CANN)* Engine switch off Below 1 Ω NG C
      S15-1 (CANP) - L31-4 (CG)* Engine switch off 1 Ω or higher OK A
      S15-2 (CANN) - L31-4 (CG)* Engine switch off 1 Ω or higher OK A
      S15-1 (CANP) - L31-4 (CG)* Engine switch off Below 1 Ω NG C
      S15-2 (CANN) - L31-4 (CG)* Engine switch off Below 1 Ω NG C
      S15-1 (CANP) - L31-16 (BAT)* Engine switch off 1 Ω or higher OK A
      S15-2 (CANN) - L31-16 (BAT)* Engine switch off 1 Ω or higher OK A
      S15-1 (CANP) - L31-16 (BAT)* Engine switch off Below 1 Ω NG C
      S15-2 (CANN) - L31-16 (BAT)* Engine switch off Below 1 Ω NG C
      r2-1 (CANP) - r2-2 (CANN) Engine switch off 1 Ω or higher OK B
      r2-1 (CANP) - r2-2 (CANN) Engine switch off Below 1 Ω NG C
      r2-1 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK B
      r2-2 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK B
      r2-1 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG C
      r2-2 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG C
      r2-1 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK B
      r2-2 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK B
      r2-1 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG C
      r2-2 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG C
      HINT:
      *: w/ Ottoman

      B: REPLACE REAR POWER SEAT MODULE SWITCH  (See REMOVAL )

      C: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO REAR POWER SEAT MODULE SWITCH (CANP, CANN)

      A: REPLACE REAR POWER SEAT MODULE SWITCH  (See REMOVAL )

  27. CONNECT CONNECTOR
    1. Reconnect the S59 No. 12 junction connector connector.
  28. CHECK FOR SHORT IN CAN BUS WIRES (POWER TRUNK LID CONTROL ECU)
    1. Disconnect the S43 power trunk lid control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      S43-6 (CANH) - S43-5 (CANL) Engine switch off 1 Ω or higher OK
      S43-6 (CANH) - S43-5 (CANL) Engine switch off Below 1 Ω NG
      S43-6 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S43-5 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S43-6 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S43-5 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S43-6 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S43-5 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S43-6 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω. NG
      S43-5 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 19: Identifying S43 Power Trunk Lid Control ECU Connector Terminals
      G06198562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO POWER TRUNK LID CONTROL ECU (CANH, CANL)

      OK: REPLACE POWER TRUNK LID CONTROL ECU  (See REMOVAL )

  29. CONNECT CONNECTOR
    1. Reconnect the S59 No. 12 junction connector connector.
  30. CHECK FOR SHORT IN CAN BUS WIRES (REAR JUNCTION BLOCK ECU)
    1. Disconnect the S62 rear junction block ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      S62-20 (CANP) - S62-28 (CANN) Engine switch off 1 Ω or higher OK
      S62-20 (CANP) - S62-28 (CANN) Engine switch off Below 1 Ω NG
      S62-20 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S62-28 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S62-20 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S62-28 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S62-20 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S62-28 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S62-20 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S62-28 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 20: Identifying S62 Rear Junction Block ECU Connector Terminal
      G06198563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN MAIN WIRE CONNECTED TO REAR JUNCTION BLOCK ECU (NO. 8 JUNCTION CONNECTOR - REAR JUNCTION BLOCK ECU)

      OK: REPLACE REAR JUNCTION BLOCK ECU

  31. CONNECT CONNECTOR
    1. Reconnect the S59 No. 12 junction connector connector.
  32. CHECK FOR SHORT IN CAN BUS WIRES (NO. 12 JUNCTION CONNECTOR - NO. 11 JUNCTION CONNECTOR)
    1. Disconnect the S60 No. 11 junction connector connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      S60-2 (CANH) - S60-13 (CANL) Engine switch off 108 to 132 Ω
      S60-2 (CANH) - L31-4 (CG) Engine switch off 200 Ω or higher
      S60-13 (CANL) - L31-4 (CG) Engine switch off 200 Ω or higher
      S60-2 (CANH) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      S60-13 (CANL) - L31-16 (BAT) Engine switch off 6 kΩ or higher

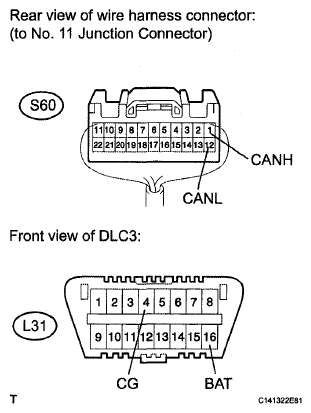

      Fig 21: Identifying S60 No. 11 Junction Connector Terminals
      G06198564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 12 JUNCTION CONNECTOR - NO. 11 JUNCTION CONNECTOR)

      OK: Go to next step

  33. CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR SIDE)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 108 to 132 Ω
      A50-3 (CANP) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-4 (CANN) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-3 (CANP) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      A50-4 (CANN) - L31-16 (BAT) Engine switch off 6 kΩ or higher

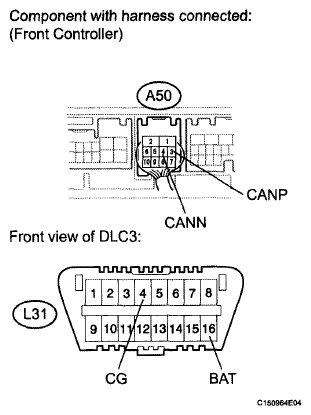

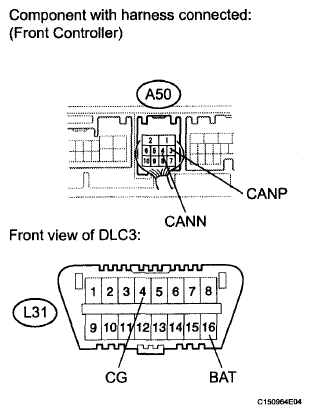

      Fig 22: Identifying A50 Front Controller Connector Terminals
      G06198565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK:  Go to step  46

      OK: Go to next step

  34. CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR - DRIVING SUPPORT ECU)
    NOTE: For vehicles without dynamic radar cruise control system or pre-collision system, go to " 35 CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR - FRONT POWER SEAT ECU AND SWITCH LH)".
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      S60-6 (CANH) - S60-17 (CANL) Engine switch off 1 Ω or higher OK
      S60-6 (CANH) - S60-17 (CANL) Engine switch off Below 1 Ω NG
      S60-6 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-17 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-6 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-17 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-6 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-17 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-6 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S60-17 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

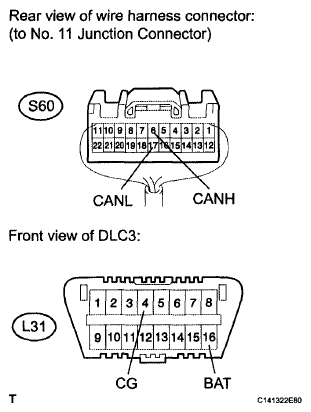

      Fig 23: Identifying S60 No. 11 Junction Connector Terminals
      G06198566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  38

      OK: Go to next step

  35. CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR - FRONT POWER SEAT ECU AND SWITCH LH)
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      S60-1 (CANH) - S60-12 (CANL) Engine switch off 1 Ω or higher OK
      S60-1 (CANH) - S60-12 (CANL) Engine switch off Below 1 Ω NG
      S60-1 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-12 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-1 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-12 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-1 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-12 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-1 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S60-12 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 24: Identifying S60 No. 11 Junction Connector Terminals
      G06198567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  40

      OK: Go to next step

  36. CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR - FRONT POWER SEAT ECU AND SWITCH LH)
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      S60-4 (CANH) - S60-15 (CANL) Engine switch off 1 Ω or higher OK
      S60-4 (CANH) - S60-15 (CANL) Engine switch off Below 1 Ω NG
      S60-4 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-15 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-4 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-15 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-4 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-15 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-4 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S60-15 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

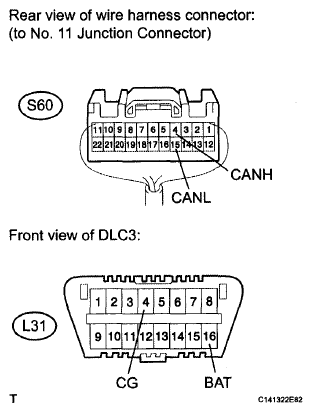

      Fig 25: Identifying S60 No. 11 Junction Connector Terminals
      G06198568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  42

      OK: Go to next step

  37. CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR - REAR MULTIPLEX NETWORK DOOR ECU LH)
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      S60-3 (CANH) - S60-14 (CANL) Engine switch off 1 Ω or higher OK
      S60-3 (CANH) - S60-14 (CANL) Engine switch off Below 1 Ω NG
      S60-3 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-14 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      S60-3 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-14 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      S60-3 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-14 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      S60-3 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      S60-14 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

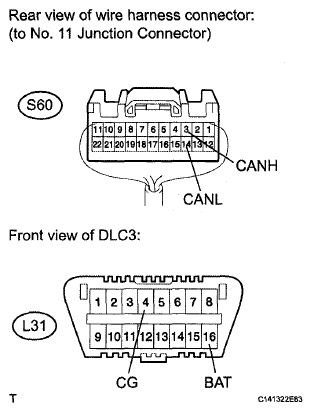

      Fig 26: Identifying S60 No. 11 Junction Connector Terminals
      G06198569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  44

      OK: REPAIR OR REPLACE NO. 11 JUNCTION CONNECTOR

  38. CONNECT CONNECTOR
    1. Reconnect the S60 No. 11 junction connector connector.
  39. CHECK FOR SHORT IN CAN BUS WIRES (DRIVING SUPPORT ECU)
    1. Disconnect the A33 driving support ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      A33-19 (CANP) - A33-18 (CANN) Engine switch off 1 Ω or higher OK
      A33-19 (CANP) - A33-18 (CANN) Engine switch off Below 1 Ω NG
      A33-19 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      A33-18 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      A33-19 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      A33-18 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      A33-19 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      A33-18 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      A33-19 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      A33-18 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 27: Identifying A33 Driving Support ECU Connector Terminals
      G06198570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO DRIVING SUPPORT ECU (CANP, CANN)

      OK: REPLACE DRIVING SUPPORT ECU  (See INITIALIZATION )

  40. CONNECT CONNECTOR
    1. Reconnect the S60 No. 11 junction connector connector.
  41. CHECK FOR SHORT IN CAN BUS WIRES (FRONT POWER SEAT ECU AND SWITCH LH)
    1. Disconnect the e46 front power seat ECU and switch LH connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      e46-25 (CANP) - e46-24 (CANN) Engine switch off 1 Ω or higher OK
      e46-25 (CANP) - e46-24 (CANN) Engine switch off Below 1 Ω NG
      e46-25 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      e46-24 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      e46-25 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      e46-24 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      e46-25 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      e46-24 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      e46-25 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      e46-24 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

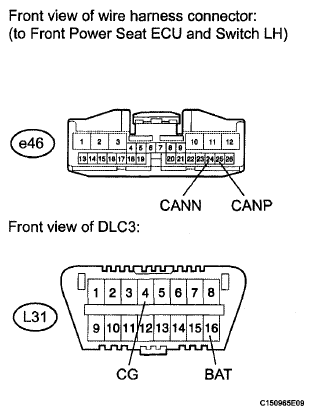

      Fig 28: Identifying E46 Front Power Seat ECU And Switch Connector Terminals (LH)
      G06198571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO FRONT POWER SEAT ECU AND SWITCH LH (CANP, CANN)

      OK: REPLACE FRONT POWER SEAT ECU AND SWITCH LH  (See DISASSEMBLY )

  42. CONNECT CONNECTOR
    1. Reconnect the S60 No. 11 junction connector connector.
  43. CHECK FOR SHORT IN CAN BUS WIRES (FRONT MULTIPLEX NETWORK DOOR ECU LH)
    1. Disconnect the N10 front multiplex network door ECU LH connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      N10-9 (CANP) - N10-10 (CANN) Engine switch off 1 Ω or higher OK
      N10-9 (CANP) - N10-10 (CANN) Engine switch off Below 1 Ω NG
      N10-9 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      N10-10 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      N10-9 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      N10-10 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      N10-9 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      N10-10 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      N10-9 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      N10-10 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

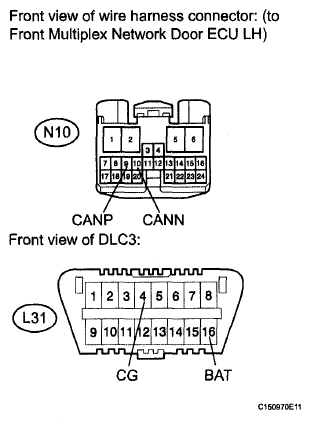

      Fig 29: Identifying N10 Front Multiplex Network Door ECU Connector Terminals (LH)
      G06198572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO FRONT MULTIPLEX NETWORK DOOR ECU LH (CANP, CANN)

      OK: REPLACE FRONT MULTIPLEX NETWORK DOOR ECU LH  (See ON-VEHICLE INSPECTION )

  44. CONNECT CONNECTOR
    1. Reconnect the S60 No. 11 junction connector connector.
  45. CHECK FOR SHORT IN CAN BUS WIRES (REAR MULTIPLEX NETWORK DOOR ECU LH)
    1. Disconnect the O14 rear multiplex network door ECU LH connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      O14-9 (CANP) - O14-10 (CANN) Engine switch off 1 Ω or higher OK
      O14-9 (CANP) - O14-10 (CANN) Engine switch off Below 1 Ω NG
      O14-9 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      O14-10 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      O14-9 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      O14-10 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      O14-9 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      O14-10 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      O14-9 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      O14-10 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

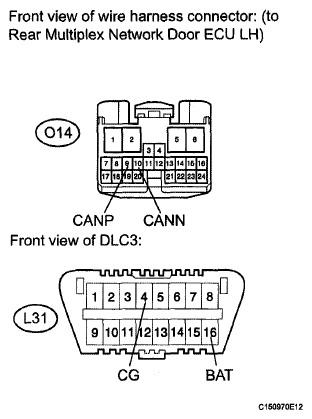

      Fig 30: Identifying O14 Rear Multiplex Network Door ECU Connector Terminals (LH)
      G06198573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO REAR MULTIPLEX NETWORK DOOR ECU LH (CANP, CANN)

      OK: REPLACE REAR MULTIPLEX NETWORK DOOR ECU LH  (See ON-VEHICLE INSPECTION )

  46. CONNECT CONNECTOR
    1. Reconnect the S60 No. 11 junction connector connector.
  47. CHECK FOR SHORT IN CAN BUS WIRES (NO. 11 JUNCTION CONNECTOR - NO. 10 JUNCTION CONNECTOR)
    1. Disconnect the L95 No. 10 junction connector connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      L95-4 (CANH) - L95-15 (CANL) Engine switch off 108 to 132 Ω
      L95-4 (CANH) - L31-4 (CG) Engine switch off 200 Ω or higher
      L95-15 (CANL) - L31-4 (CG) Engine switch off 200 Ω or higher
      L95-4 (CANH) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      L95-15 (CANL) - L31-16 (BAT) Engine switch off 6 kΩ or higher

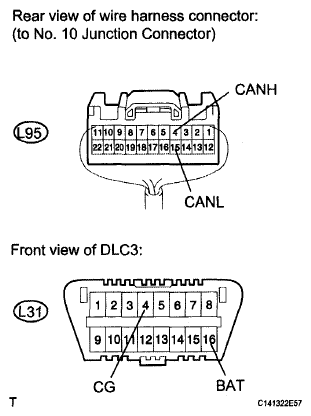

      Fig 31: Identifying O14 And L31 Connector Terminals
      G06198574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 11 JUNCTION CONNECTOR - NO. 10 JUNCTION CONNECTOR)

      OK: Go to next step

  48. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR SIDE)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 108 to 132 Ω
      A50-3 (CANP) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-4 (CANN) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-3 (CANP) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      A50-4 (CANN) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      Fig 32: Identifying A50 Front Controller Connector Terminals
      G06198575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  71

      OK: Go to next step

  49. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR - COMBINATION SWITCH)
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-8 (CANH) - L95-19 (CANL) Engine switch off 1 Ω or higher OK
      L95-8 (CANH) - L95-19 (CANL) Engine switch off Below 1 Ω NG
      L95-8 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-19 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-8 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-19 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-8 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-19 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-8 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-19 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

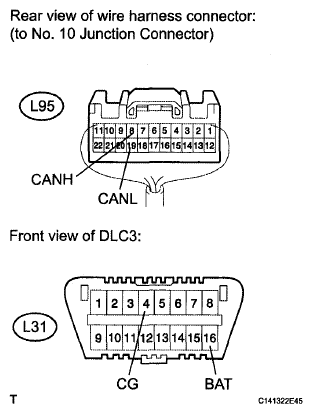

      Fig 33: Identifying L95 No. 10 Junction Connector Terminals
      G06198576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  56

      OK: Go to next step

  50. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR - MAIN BODY ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-3 (CANH) - L95-14 (CANL) Engine switch off 1 Ω or higher OK
      L95-3 (CANH) - L95-14 (CANL) Engine switch off Below 1 Ω NG
      L95-3 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-14 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-3 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-14 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-3 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-14 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-3 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-14 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

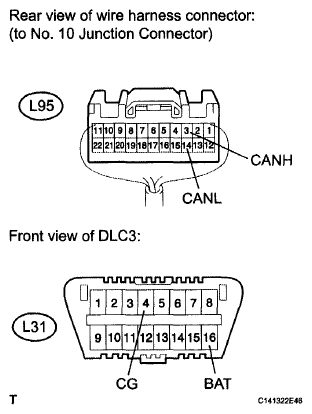

      Fig 34: Identifying L95 No. 10 Junction Connector Terminals
      G06198577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  58

      OK: Go to next step

  51. CHECK FOR SHORT IN CAN BUS WIRE (NO. 10 JUNCTION CONNECTOR - MULTIPLEX TILT AND TELESCOPIC ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-6 (CANH) - L95-17 (CANL) Engine switch off 1 Ω or higher OK
      L95-6 (CANH) - L95-17 (CANL) Engine switch off Below 1 Ω NG
      L95-6 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-17 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-6 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-17 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-6 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-17 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-6 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-17 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

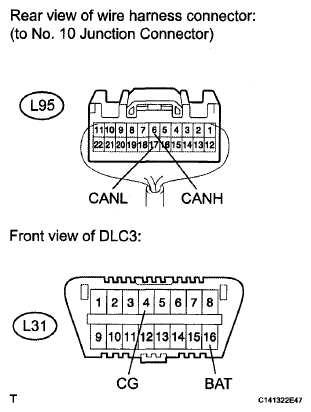

      Fig 35: Identifying L95 No. 10 Junction Connector Terminals
      G06198578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  60

      OK: Go to next step

  52. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR - NO. 1 METER ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-7 (CANH) - L95-18 (CANL) Engine switch off 1 Ω or higher OK
      L95-7 (CANH) - L95-18 (CANL) Engine switch off Below 1 Ω NG
      L95-7 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-18 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-7 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-18 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-7 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-18 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-7 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-18 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

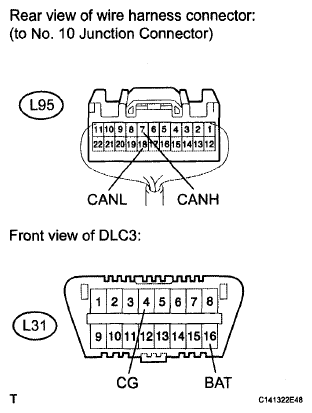

      Fig 36: Identifying L95 No. 10 Junction Connector Terminals
      G06198579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  62

      OK: Go to next step

  53. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR - CERTIFICATION ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-5 (CANH) - L95-16 (CANL) Engine switch off 1 Ω or higher OK
      L95-5 (CANH) - L95-16 (CANL) Engine switch off Below 1 Ω NG
      L95-5 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-16 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-5 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-16 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-5 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-16 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-5 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-16 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 37: Identifying L95 No. 10 Junction Connector Terminals
      G06198580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  64

      OK: Go to next step

  54. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR - OUTER MIRROR SWITCH)
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-10 (CANH) - L95-21 (CANL) Engine switch off 1Ω or higher OK
      L95-10 (CANH) - L95-21 (CANL) Engine switch off Below 1 Ω NG
      L95-10 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-21 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-10 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-21 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-10 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-21 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-10 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-21 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

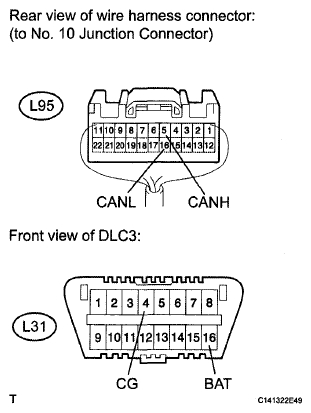

      Fig 38: Identifying L95 No. 10 Junction Connector Terminals
      G06198581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  66

      OK: Go to next step

  55. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR - STEERING PAD ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L95-9 (CANH) - L95-20 (CANL) Engine switch off 1 Ω or higher OK
      L95-9 (CANH) - L95-20 (CANL) Engine switch off Below 1 Ω NG
      L95-9 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-20 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L95-9 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-20 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L95-9 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-20 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L95-9 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L95-20 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

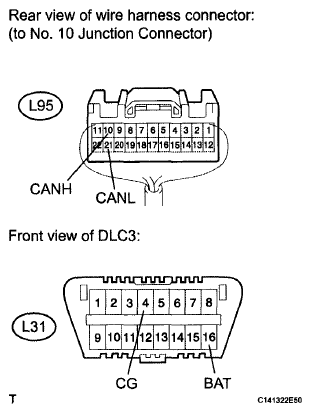

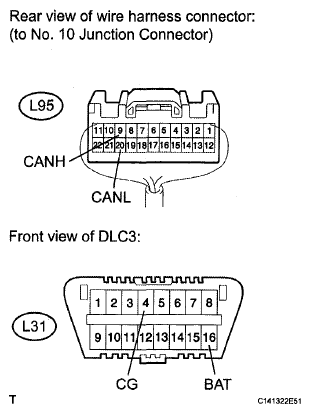

      Fig 39: Identifying L95 No. 10 Junction Connector Terminals
      G06198582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  68

      OK: REPAIR OR REPLACE NO. 10 JUNCTION CONNECTOR

  56. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  57. CHECK FOR SHORT IN CAN BUS WIRES (COMBINATION SWITCH)
    1. Disconnect the L25 combination switch connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L25-5 (CANP) - L25-6 (CANN) Engine switch off 1 Ω or higher OK
      L25-5 (CANP) - L25-6 (CANN) Engine switch off Below 1 Ω NG
      L25-5 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L25-6 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L25-5 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L25-6 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L25-5 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L25-6 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L25-5 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L25-6 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 40: Identifying L25 Combination Switch Connector Terminals
      G06198583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO COMBINATION SWITCH (CANP, CANN)

      OK: REPLACE COMBINATION SWITCH ASSEMBLY (WINDSHIELD WIPER SWITCH ASSEMBLY)  (See REMOVAL )

  58. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  59. CHECK FOR SHORT IN CAN BUS WIRES (MAIN BODY ECU)
    1. Disconnect the L11 main body ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L11-16 (CANP) - L11-15 (CANN) Engine switch off 1 Ω or higher OK
      L11-16 (CANP) - L11-15 (CANN) Engine switch off Below 1 Ω NG
      L11-16 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L11-15 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L11-16 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L11-15 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L11-16 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L11-15 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L11-16 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L11-15 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 41: Identifying L11 Main Body ECU Connector Terminals
      G06198584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO MAIN BODY ECU (CANP, CANN)

      OK: REPLACE MAIN BODY ECU

  60. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  61. CHECK FOR SHORT IN CAN BUS WIRES (MULTIPLEX TILT AND TELESCOPIC ECU)
    1. Disconnect the L34 multiplex tilt and telescopic ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L34-5 (CANP) - L34-14 (CANN) Engine switch off 1 Ω or higher OK
      L34-5 (CANP) - L34-14 (CANN) Engine switch off Below 1 Ω NG
      L34-5 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L34-14 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L34-5 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L34-14 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L34-5 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L34-14 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L34-5 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L34-14 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 42: Identifying L34 Multiplex Tilt And Telescopic ECU Connector Terminals
      G06198585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO MULTIPLEX TILT AND TELESCOPIC ECU (CANP, CANN)

      OK: REPLACE MULTIPLEX TILT AND TELESCOPIC ECU  (See REMOVAL )

  62. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  63. CHECK FOR SHORT IN CAN BUS WIRES (NO. 1 METER ECU)
    1. Disconnect the L10 No. 1 meter ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L10-22 (CANP) - L10-23 (CANN) Engine switch off 1 Ω or higher OK
      L10-22 (CANP) - L10-23 (CANN) Engine switch off Below 1 Ω NG
      L10-22 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L10-23 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L10-22 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L10-23 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L10-22 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L10-23 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L10-22 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L10-23 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 43: Identifying L10 No. 1 Meter ECU Connector Terminals
      G06198586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO NO. 1 METER ECU (CANP, CANN)

      OK: REPLACE COMBINATION METER ASSEMBLY (NO. 1 METER ECU SUB-ASSEMBLY)  (See DISASSEMBLY )

  64. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  65. CHECK FOR SHORT IN CAN BUS WIRES (CERTIFICATION ECU)
    1. Disconnect the L15 certification ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L15-27 (CANP) - L15-28 (CANN) Engine switch off 1 Ω or higher OK
      L15-27 (CANP) - L15-28 (CANN) Engine switch off Below 1 Ω NG
      L15-27 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L15-28 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L15-27 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L15-28 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L15-27 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L15-28 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L15-27 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L15-28 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 44: Identifying L15 Certification ECU Connector Terminals
      G06198587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO CERTIFICATION ECU (CANP, CANN)

      OK: REPLACE CERTIFICATION ECU

  66. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  67. CHECK FOR SHORT IN CAN BUS WIRES (OUTER MIRROR SWITCH)
    1. Disconnect the L6 outer mirror switch connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L6-2 (CANP) - L6-3 (CANN) Engine switch off 1 Ω or higher OK
      L6-2 (CANP) - L6-3 (CANN) Engine switch off Below 1 Ω NG
      L6-2 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L6-3 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L6-2 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L6-3 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L6-2 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L6-3 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L6-2 (CANP) - L.31-16 (BAT) Engine switch off Below 1 Ω NG
      L6-3 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 45: Identifying L6 Outer Mirror Switch Connector Terminals
      G06198588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO OUTER MIRROR SWITCH (CANP, CANN)

      OK: REPLACE OUTER MIRROR SWITCH  (See REMOVAL )

  68. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  69. CHECK FOR SHORT IN CAN BUS WIRES (STEERING PAD ECU)
    1. Disconnect the L24 spiral cable connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L24-9 (CANP) - L24-8 (CANN) Engine switch off 1 Ω or higher OK
      L24-9 (CANP) - L24-8 (CANN) Engine switch off Below 1 Ω NG
      L24-9 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L24-8 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L24-9 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L24-8 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L24-9 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L24-8 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L24-9 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L24-8 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 46: Identifying L24 Spiral Cable Connector Terminals
      G06198589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO STEERING PAD ECU (CANP, CANN)

      OK: Go to next step

  70. INSPECT SPIRAL CABLE SUB-ASSEMBLY
    1. Disconnect the L24 and z7 cable connectors.
    2. Set the spiral cable to the center position (see INSTALLATION ).
    3. Measure the resistance between each terminal of the spiral cable according to the table below.
    4. After setting the spiral cable to the center position, rotate the spiral cable 2.5 times clockwise, and measure the resistance as shown. Then rotate the spiral cable 5 times counterclockwise, and measure the resistance as shown.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      z7-2 - L24-9 (CANP) Always Below 1 Ω
      z7-1 - L24-8 (CANN) Always Below 1 Ω
      z7-7 - L24-3 (NOSB) Always Below 1 Ω
      z7-10 - L24-6 (+B) Always Below 1 Ω
    5. After setting the spiral cable to the center position, rotate the spiral cable 2.5 times clockwise, and measure the resistance as shown. Then rotate the spiral cable 5 times counterclockwise, and measure the resistance as shown.

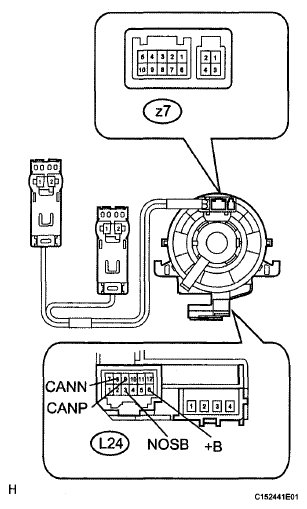

      Fig 47: Inspecting Spiral Cable Sub-Assembly
      G06198590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      z7-2 - L24-9 (CANP) Always Below 1 Ω
      z7-1 - L24-8 (CANN) Always Below 1 Ω
      z7-7 - L24-3 (NOSB) Always Below 1 Ω
      z7-10 - L24-6 (+B) Always Below 1 Ω
      NOTE: As the spiral cable may break, do not rotate the spiral cable more than the specified amount.

      NG: REPLACE SPIRAL CABLE SUB-ASSEMBLY  (See REMOVAL )

      OK: REPLACE STEERING PAD ECU  (See REMOVAL )

  71. CONNECT CONNECTOR
    1. Reconnect the L95 No. 10 junction connector connector.
  72. CHECK FOR SHORT IN CAN BUS WIRES (NO. 10 JUNCTION CONNECTOR - NO. 9 JUNCTION CONNECTOR)
    1. Disconnect the R48 No. 9 junction connector connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      R48-4 (CANH) - R48-15 (CANL) Engine switch off 108 to 132 Ω
      R48-4 (CANH) - L31-4 (CG) Engine switch off 200 Ω or higher
      R48-15 (CANL) - L31-4 (CG) Engine switch off 200 Ω or higher
      R48-4 (CANH) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      R48-15 (CANL) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      Fig 48: Identifying R48 No. 9 Junction Connector Terminals
      G06198591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 10 JUNCTION CONNECTOR - NO. 9 JUNCTION CONNECTOR)

      OK: Go to next step

  73. CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR SIDE)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 108 to 132 Ω
      A50-3 (CANP) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-4 (CANN) - L31-4 (CG) Engine switch off 200 Ω or higher
      A50-3 (CANP) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      A50-4 (CANN) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      Fig 49: Identifying A50 Front Controller Connector Terminals
      G06198592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  86

      OK: Go to next step

  74. CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR - FRONT MULTIPLEX NETWORK DOOR ECU RH)
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      R48-1 (CANH) - R48-12 (CANL) Engine switch off 1 Ω or higher OK
      R48-1 (CANH) - R48-12 (CANL) Engine switch off Below 1 Ω NG
      R48-1 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-12 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-1 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-12 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-1 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-12 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-1 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      R48-12 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 50: Identifying R48 No. 9 Junction Connector Terminals
      G06198593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  78

      OK: Go to next step

  75. CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR - BUS BUFFER ECU)
    NOTE: For vehicles without LEXUS link system, go to " 76 CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR - REAR MULTIPLEX NETWORK DOOR ECU RH)".
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      R48-6 (CANH) - R48-17 (CANL) Engine switch off 1 Ω or higher OK
      R48-6 (CANH) - R48-17 (CANL) Engine switch off Below 1 Ω NG
      R48-6 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-17 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-6 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-17 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω. NG
      R48-6 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-17 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-6 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      R48-17 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

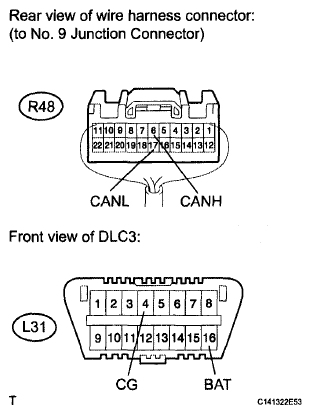

      Fig 51: Identifying R48 No. 9 Junction Connector Terminals
      G06198594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  80

      OK: Go to next step

  76. CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR - REAR MULTIPLEX NETWORK DOOR ECU RH)
    1. Measure the resistance according to the value(s) in the table below.

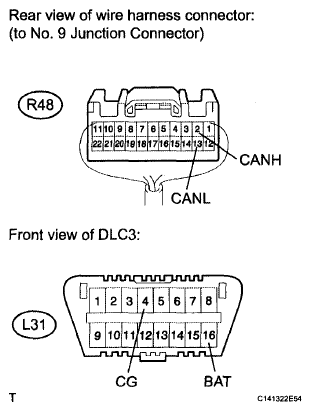

      Fig 52: Identifying R48 No. 9 Junction Connector Terminals
      G06198595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      R48-2 (CANH) - R48-13 (CANL) Engine switch off 1 Ω or higher OK
      R48-2 (CANH) - R48-13 (CANL) Engine switch off Below 1 Ω NG
      R48-2 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-13 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-2 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-13 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-2 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-13 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-2 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      R48-13 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

      NG:  Go to step  82

      OK: Go to next step

  77. CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR - TIRE PRESSURE WARNING ECU)
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      R48-5 (CANH) - R48-16 (CANL) Engine switch off 1 Ω or higher OK
      R48-5 (CANH) - R48-16 (CANL) Engine switch off Below 1 Ω NG
      R48-5 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-16 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R48-5 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-16 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R48-5 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-16 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R48-5 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      R48-16 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

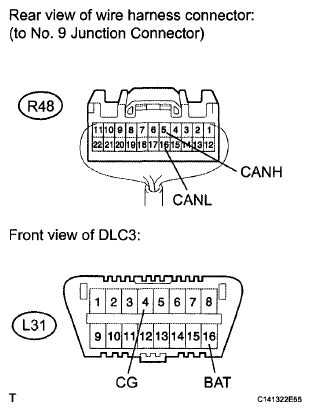

      Fig 53: Identifying R48 No. 9 Junction Connector Terminals
      G06198596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  84

      OK: REPAIR OR REPLACE NO. 9 JUNCTION CONNECTOR

  78. CONNECT CONNECTOR
    1. Reconnect the R48 No. 9 junction connector connector.
  79. CHECK FOR SHORT IN CAN BUS WIRES (FRONT MULTIPLEX NETWORK DOOR ECU RH)
    1. Disconnect the N1 front multiplex network door ECU RH connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      N1-9 (CANP) - N1-10 (CANN) Engine switch off 1 Ω or higher OK
      N1-9 (CANP) - N1-10 (CANN) Engine switch off Below 1 Ω NG
      N1-9 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      N1-10 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      N1-9 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      N1-10 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      N1-9 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      N1-10 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      N1-9 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      N1-10 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

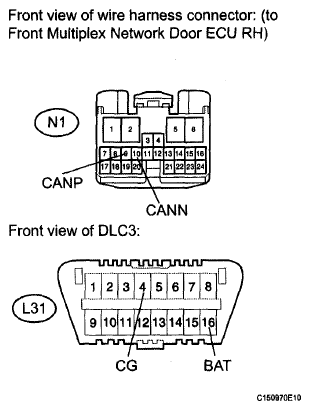

      Fig 54: Identifying N1 Front Multiplex Network Door ECU Connector Terminals (RH)
      G06198597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO FRONT MULTIPLEX NETWORK DOOR ECU RH (CANP, CANN)

      OK: REPLACE FRONT MULTIPLEX NETWORK DOOR ECU RH  (See ON-VEHICLE INSPECTION )

  80. CONNECT CONNECTOR
    1. Reconnect the R48 No. 9 junction connector connector.
  81. CHECK FOR SHORT IN CAN BUS WIRES (BUS BUFFER ECU)
    1. Disconnect the L93 bus buffer ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L93-1 (CAN+) - L93-2 (CAN-) Engine switch off 1 Ω or higher OK
      L93-1 (CAN+) - L93-2 (CAN-) Engine switch off Below 1 Ω NG
      L93-1 (CAN+) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L93-2 (CAN-) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L93-1 (CAN+) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L93-2 (CAN-) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L93-1 (CAN+) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L93-2 (CAN-) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L93-1 (CAN+) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L93-2 (CAN-) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 55: Identifying L93 Bus Buffer ECU Connector Terminals
      G06198598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO BUS BUFFER ECU (CAN+, CAN-)

      OK: REPLACE BUS BUFFER ECU  (See REMOVAL )

  82. CONNECT CONNECTOR
    1. Reconnect the R48 No. 9 junction connector connector.
  83. CHECK SHORT IN CAN BUS WIRES (REAR MULTIPLEX NETWORK DOOR ECU RH)
    1. Disconnect the O3 rear multiplex network door ECU RH connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      O3-9 (CANP) - O3-10 (CANN) Engine switch off 1 Ω or higher OK
      O3-9 (CANP) - O3-10 (CANN) Engine switch off Below 1 Ω NG
      O3-9 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      O3-10 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      O3-9 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      O3-10 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      O3-9 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      O3-10 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      O3-9 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      O3-10 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

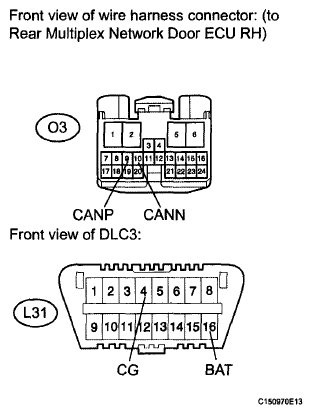

      Fig 56: Identifying O3 Rear Multiplex Network Door ECU Connector Terminals (RH)
      G06198599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO REAR MULTIPLEX NETWORK DOOR ECU RH (CANP, CANN)

      OK: REPLACE REAR MULTIPLEX NETWORK DOOR ECU RH  (See ON-VEHICLE INSPECTION )

  84. CONNECT CONNECTOR
    1. Reconnect the R48 No. 9 junction connector connector.
  85. CHECK FOR SHORT IN CAN BUS WIRES (TIRE PRESSURE WARNING ECU)
    1. Disconnect the L89 tire pressure warning ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      L89-6 (CANP) - L89-12 (CANN) Engine switch off 1 Ω or higher OK
      L89-6 (CANP) - L89-12 (CANN) Engine switch off Below 1 Ω NG
      L89-6 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L89-12 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      L89-6 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L89-12 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      L89-6 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L89-12 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      L89-6 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      L89-12 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 57: Identifying L89 Tire Pressure Warning ECU Connector Terminals
      G06198600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO TIRE PRESSURE WARNING ECU (CANP, CANN)

      OK: REPLACE TIRE PRESSURE WARNING ECU  (See REMOVAL )

  86. CONNECT CONNECTOR
    1. Reconnect the R48 No. 9 junction connector connector.
  87. CHECK FOR SHORT IN CAN BUS WIRES (NO. 9 JUNCTION CONNECTOR - NO. 8 JUNCTION CONNECTOR)
    1. Disconnect the R57 No. 8 junction connector connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Switch Condition Specified Condition
      R57-5 (CANH) - R57-7 (CANL) Engine switch off 108 to 132 Ω
      R57-5 (CANH) - L31-4 (CG) Engine switch off 200 Ω or higher
      R57-7 (CANL) - L31-4 (CG) Engine switch off 200 Ω or higher
      R57-5 (CANH) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      R57-7 (CANL) - L31-16 (BAT) Engine switch off 6 kΩ or higher
      Fig 58: Identifying R57 No. 8 Junction Connector Terminals
      G06198601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN MAIN WIRE OR CONNECTOR (NO. 9 JUNCTION CONNECTOR - NO. 8 JUNCTION CONNECTOR)

      OK: Go to next step

  88. CHECK FOR SHORT IN CAN BUS WIRES (NO. 8 JUNCTION CONNECTOR - FRONT POWER SEAT ECU SWITCH RH)
    NOTE: For vehicles without rear power seat control system, go to " 89 CHECK FOR SHORT IN CAN BUS WIRES (NO. 8 JUNCTION CONNECTOR - FRONT CONTROLLER)".
    1. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      R57-6 (CANH) - R57-8 (CANL) Engine switch off 1 Ω or higher OK
      R57-6 (CANH) - R57-8 (CANL) Engine switch off Below 1 Ω NG
      R57-6 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R57-8 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R57-6 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R57-8 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R57-6 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R57-8 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R57-6 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      R57-8 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 59: Identifying R57 No. 8 Junction Connector Terminals
      G06198602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  90

      OK: Go to next step

  89. CHECK FOR SHORT IN CAN BUS WIRES (NO. 8 JUNCTION CONNECTOR - FRONT CONTROLLER)
    1. Measure the resistance according to the value(s) in the table below.
      Fig 60: Identifying R57 No. 8 Junction Connector Terminals
      G06198603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      R57-1 (CANH) - R57-3 (CANL) Engine switch off 1 Ω or higher OK
      R57-1 (CANH) - R57-3 (CANL) Engine switch off Below 1 Ω NG
      R57-1 (CANH) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R57-3 (CANL) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      R57-1 (CANH) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R57-3 (CANL) - L31-4 (CG) Engine switch off Below 1 Ω NG
      R57-1 (CANH) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R57-3 (CANL) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      R57-1 (CANH) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      R57-3 (CANL) - L31-16 (BAT) Engine switch off Below 1 Ω NG

      NG:  Go to step  92

      OK: REPAIR OR REPLACE NO. 8 JUNCTION CONNECTOR

  90. CONNECT CONNECTOR
    1. Reconnect the R57 No. 8 junction connector connector.
  91. CHECK FOR SHORT IN CAN BUS WIRES (FRONT POWER SEAT ECU AND SWITCH RH)
    1. Disconnect the e20 front power seat ECU and switch RH connector.
    2. Measure the resistance according to the value(s) in the table below.

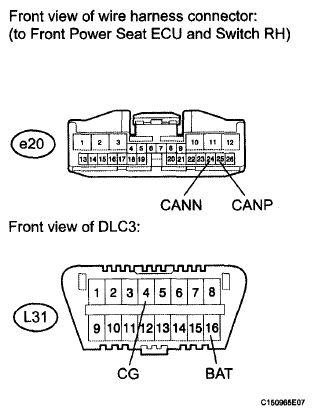

      Fig 61: Identifying E20 Front Power Seat ECU And Switch Connector Terminals (RH)
      G06198604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      e20-25 (CANP) - e20-24 (CANN) Engine switch off 1 Ω or higher OK
      e20-25 (CANP) - e20-24 (CANN) Engine switch off Below 1 Ω NG
      e20-25 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      e20-24 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      620-25 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      620-24 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      e20-25 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      e20-24 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      e20-25 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      e20-24 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG

      NG: REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO FRONT POWER SEAT ECU AND SWITCH RH (CANP, CANN)

      OK: REPLACE FRONT POWER SEAT ECU AND SWITCH RH  (See DISASSEMBLY )

  92. CONNECT CONNECTOR
    1. Reconnect the R57 No. 8 junction connector connector.
  93. CHECK FOR SHORT IN CAN BUS WIRES (FRONT CONTROLLER)
    1. Disconnect the A50 front controller connector.
    2. Measure the resistance according to the value(s) in the table below.

      Result

      RESULT REFERENCE

      Tester Connection Switch Condition Measured Resistance Proceed to
      A50-3 (CANP) - A50-4 (CANN) Engine switch off 1 Ω or higher OK
      A50-3 (CANP) - A50-4 (CANN) Engine switch off Below 1 Ω NG
      A50-3 (CANP) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      A50-4 (CANN) - L31-4 (CG) Engine switch off 1 Ω or higher OK
      A50-3 (CANP) - L31-4 (CG) Engine switch off Below 1 Ω NG
      A50-4 (CANN) - L31-4 (CG) Engine switch off Below 1 Ω NG
      A50-3 (CANP) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      A50-4 (CANN) - L31-16 (BAT) Engine switch off 1 Ω or higher OK
      A50-3 (CANP) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      A50-4 (CANN) - L31-16 (BAT) Engine switch off Below 1 Ω NG
      Fig 62: Identifying A50 Front Controller Connector Terminals
      G06198605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE CAN MAIN WIRE CONNECTED TO FRONT CONTROLLER (NO. 8 JUNCTION CONNECTOR - FRONT CONTROLLER)

      OK: REPLACE FRONT CONTROLLER

  94. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - BATTERY AND BODY GROUND)

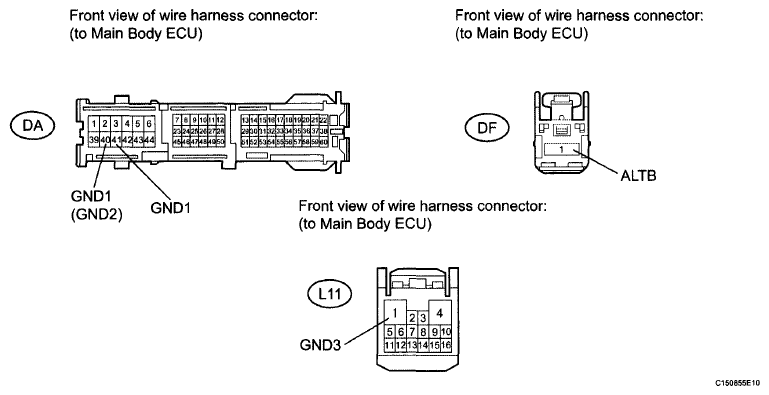

    Fig 63: Identifying DA And DF Main Body ECU Connectors Terminals
    G06198606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the cable to the negative (-) battery terminal.
      NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
    2. Disconnect the DA and DF main body ECU connectors.
    3. Disconnect the L11 main body ECU connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      DA-40 (GND1) - Body ground Always Below 1 Ω
      DA-40 (GND2) - Body ground Always Below 1 Ω
      L11-1 (GND3) - DA-41 (GND1) Always Below 1 Ω
    5. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      DF-1 (ALTB) - Body ground Always 11 to 14 V

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: REPLACE MAIN BODY ECU

About FixVault
