Parts Location

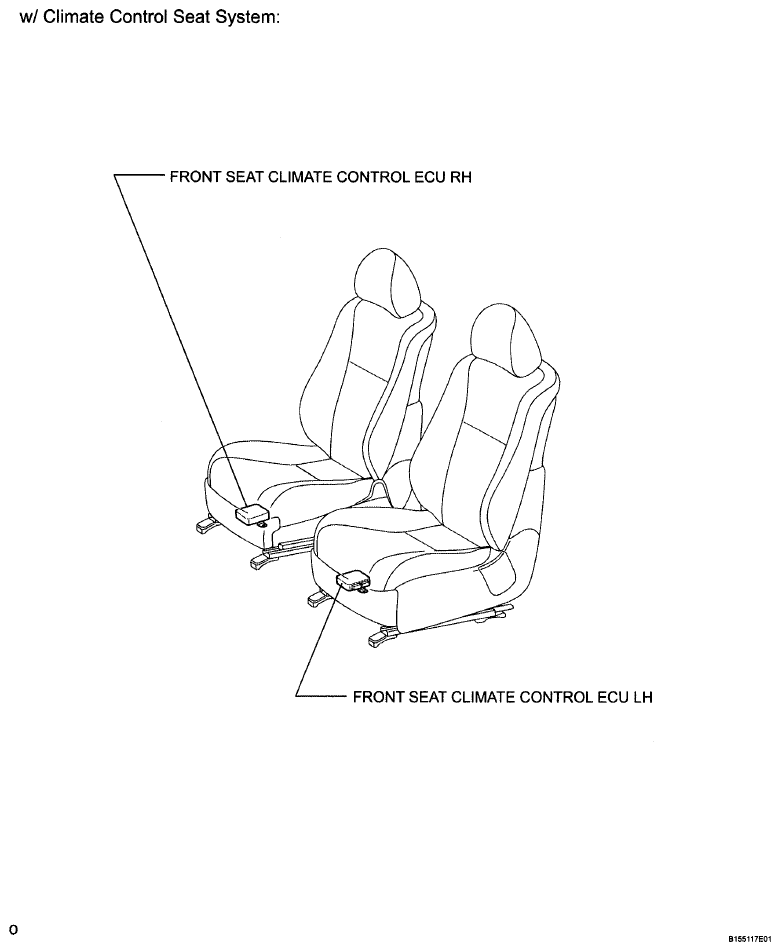

Fig 1: Identifying LIN Communication System Components Location (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

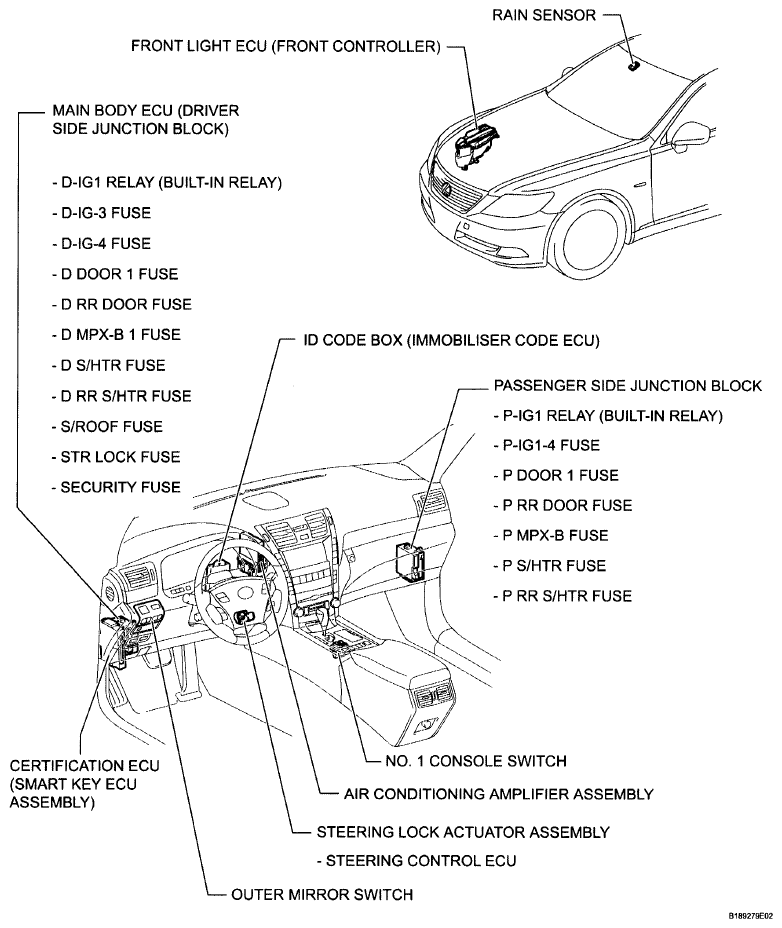

Fig 2: Identifying LIN Communication System Components Location (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

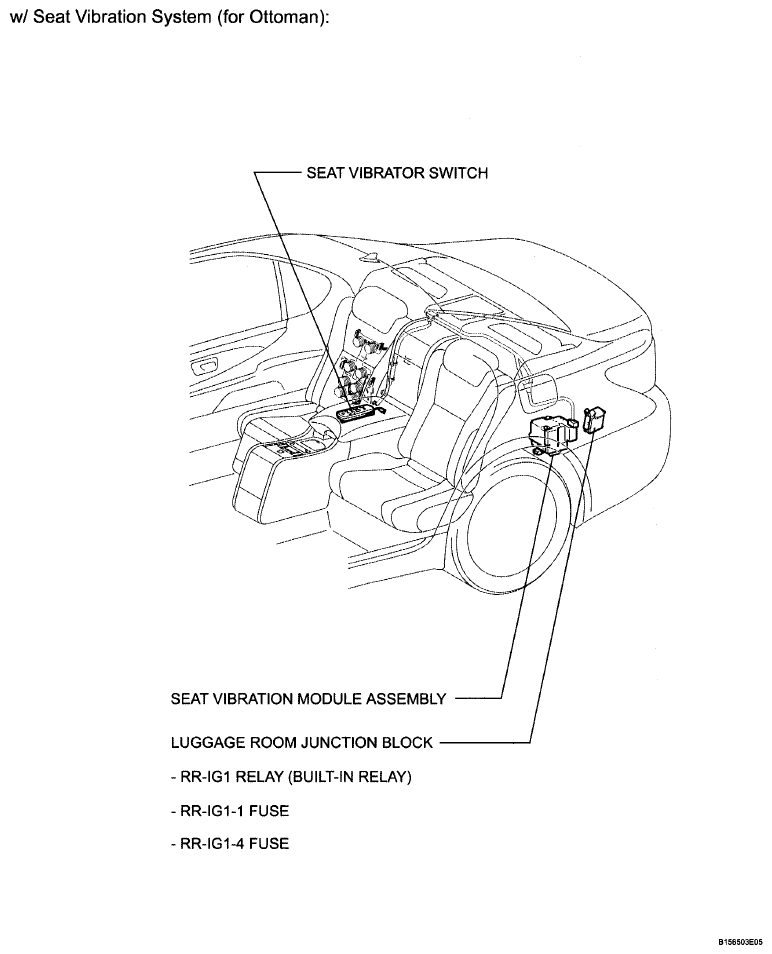

Fig 3: Identifying LIN Communication System Components Location (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

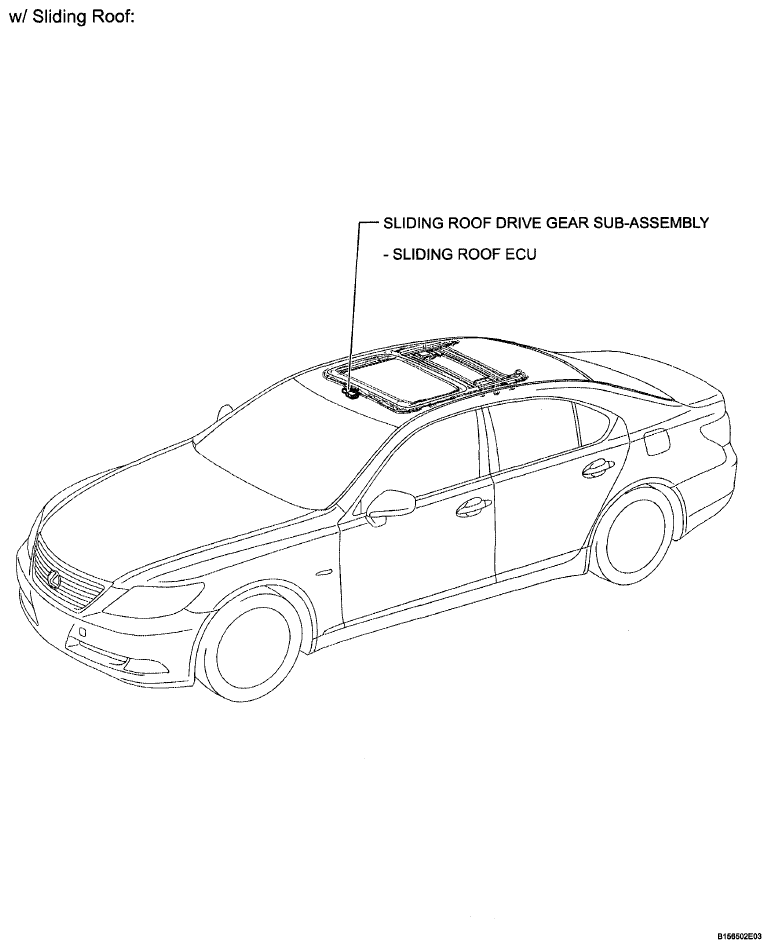

Fig 4: Identifying LIN Communication System Components Location (4 Of 6)

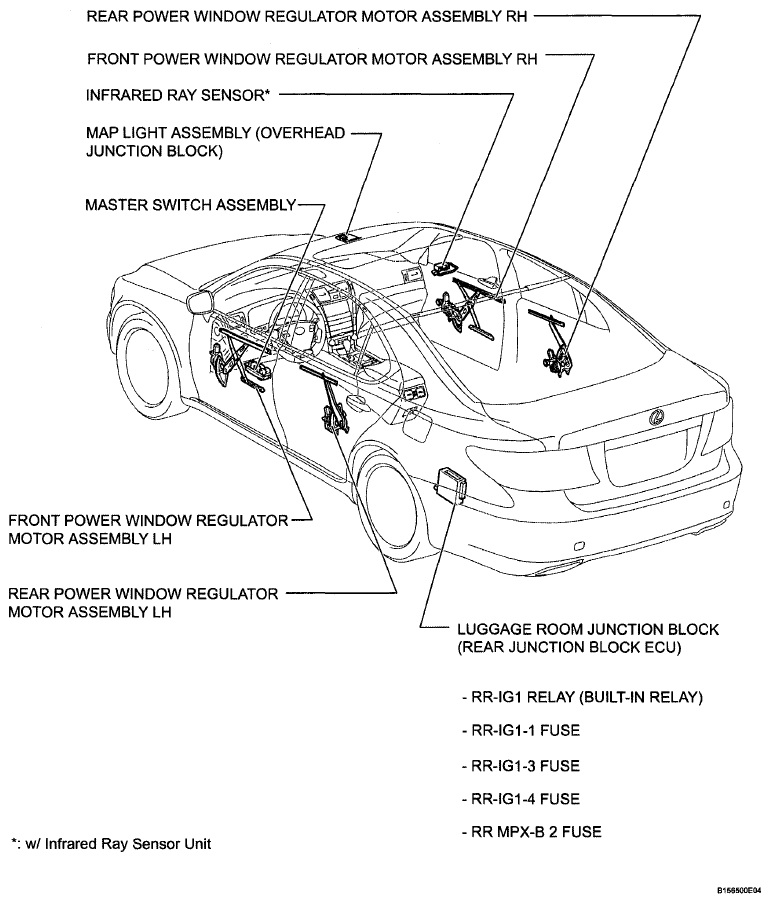

Fig 5: Identifying LIN Communication System Components Location (5 Of 6)

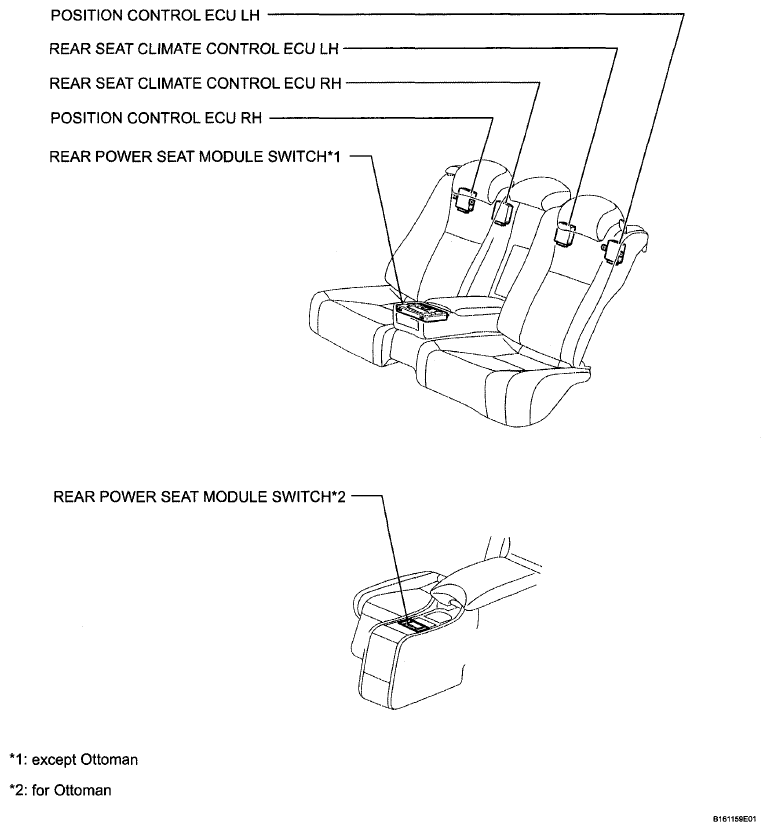

Fig 6: Identifying LIN Communication System Components Location (6 Of 6)
