System Diagram

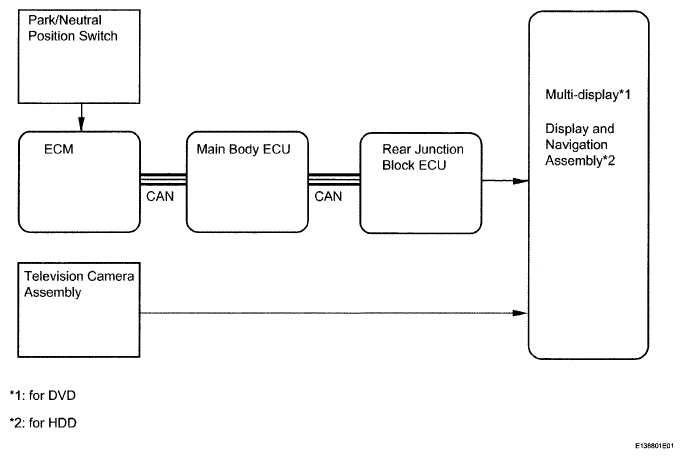

Fig 1: Rear View Monitor - System Diagram

G04951989

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION REFERENCE CHART

Sender	Receiver	Signal	Line
ECM	Rear junction block ECU	Shift position switch signal	CAN
