Cooling System (Mechanical): Cooling: Thermostat: Components

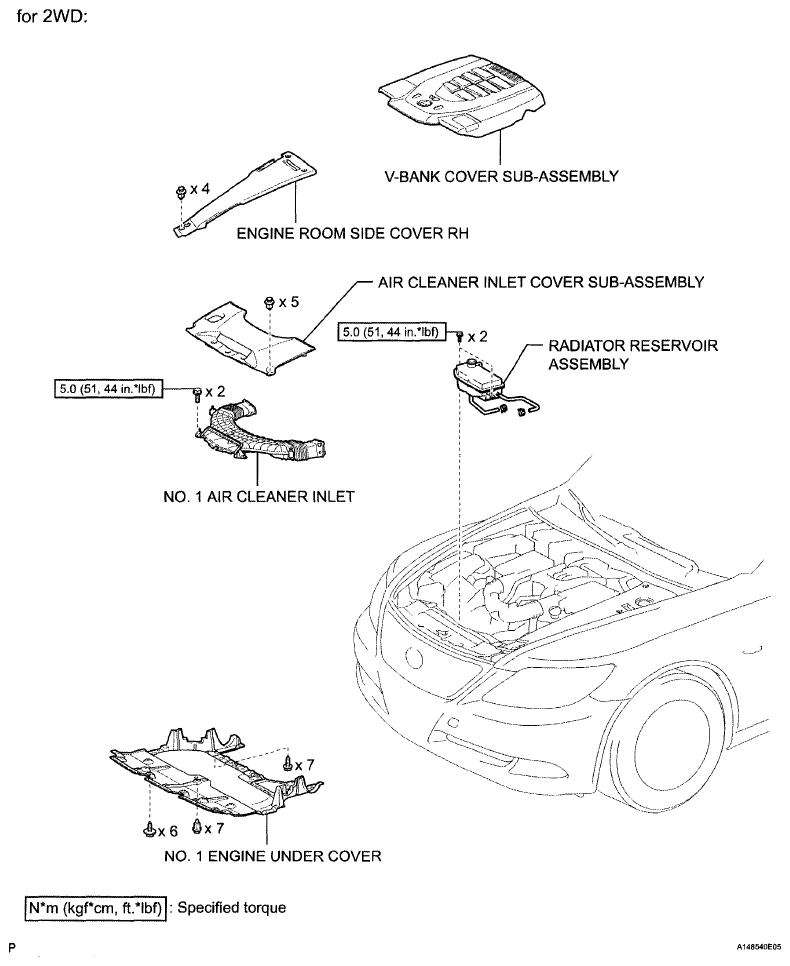

Fig 1: Air Cleaner And Engine Under Cover Replacement Components With Torque Specifications (2WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

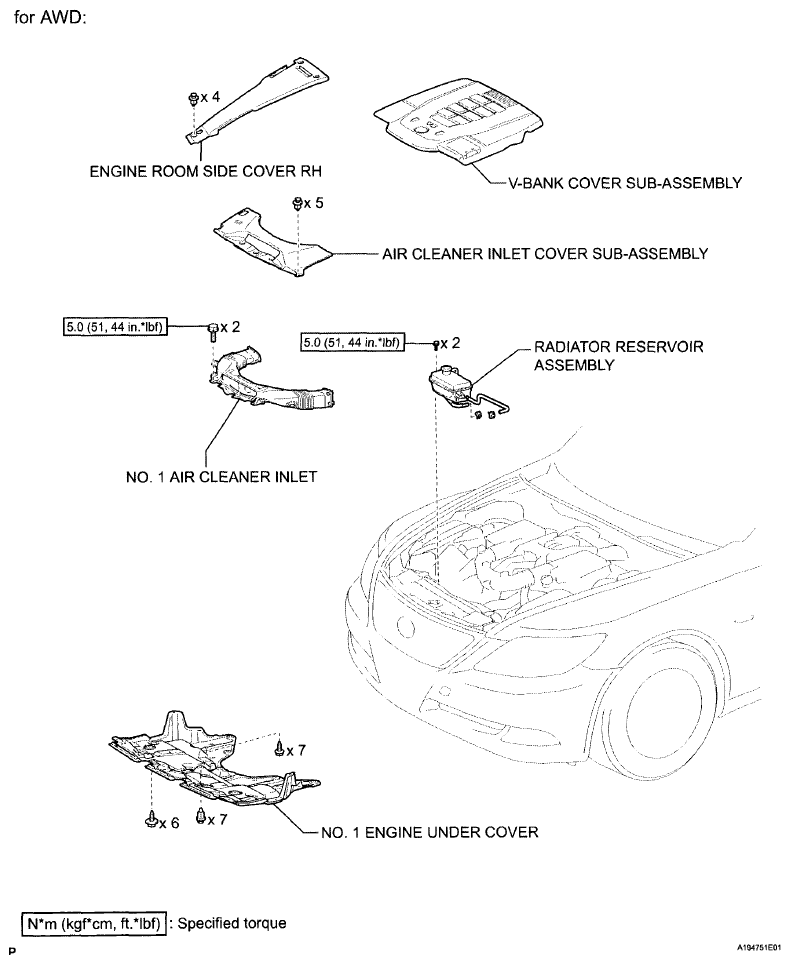

Fig 2: Air Cleaner And Engine Under Cover Replacement Components With Torque Specifications (AWD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Thermostat Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
