Engine Control System - System Testing; Component Inspection, Removal & Installation
›
HEATED OXYGEN SENSOR (for 2WD)
›
Components
HEATED OXYGEN SENSOR (for 2WD): Components

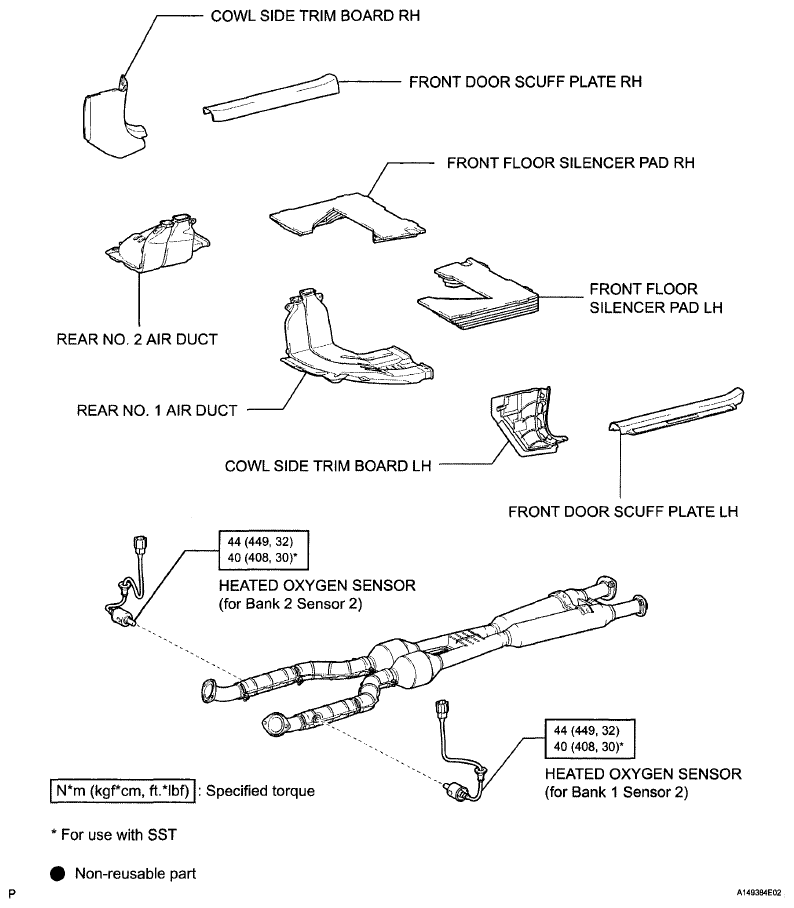

Fig 1: Heated Oxygen Sensor (2WD) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
