AIR FUEL RATIO SENSOR (for AWD)
›
Components
AIR FUEL RATIO SENSOR (for AWD): Components

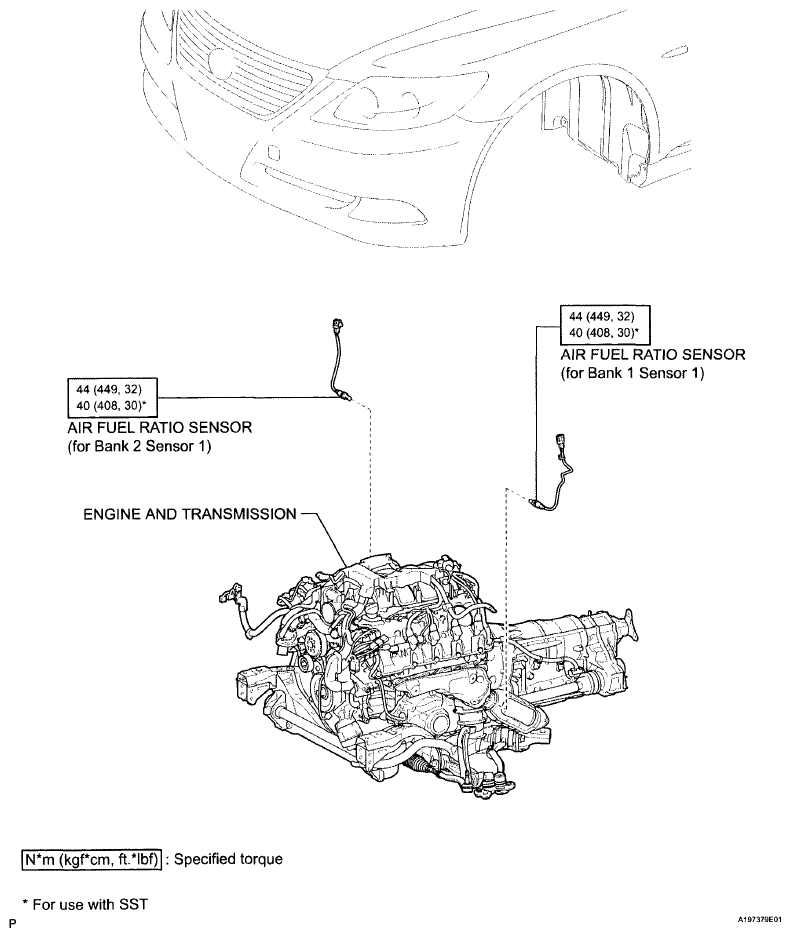

Fig 1: Air Fuel Ratio Sensor (AWD) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
