Height Control Sensor: Components: Illustration

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

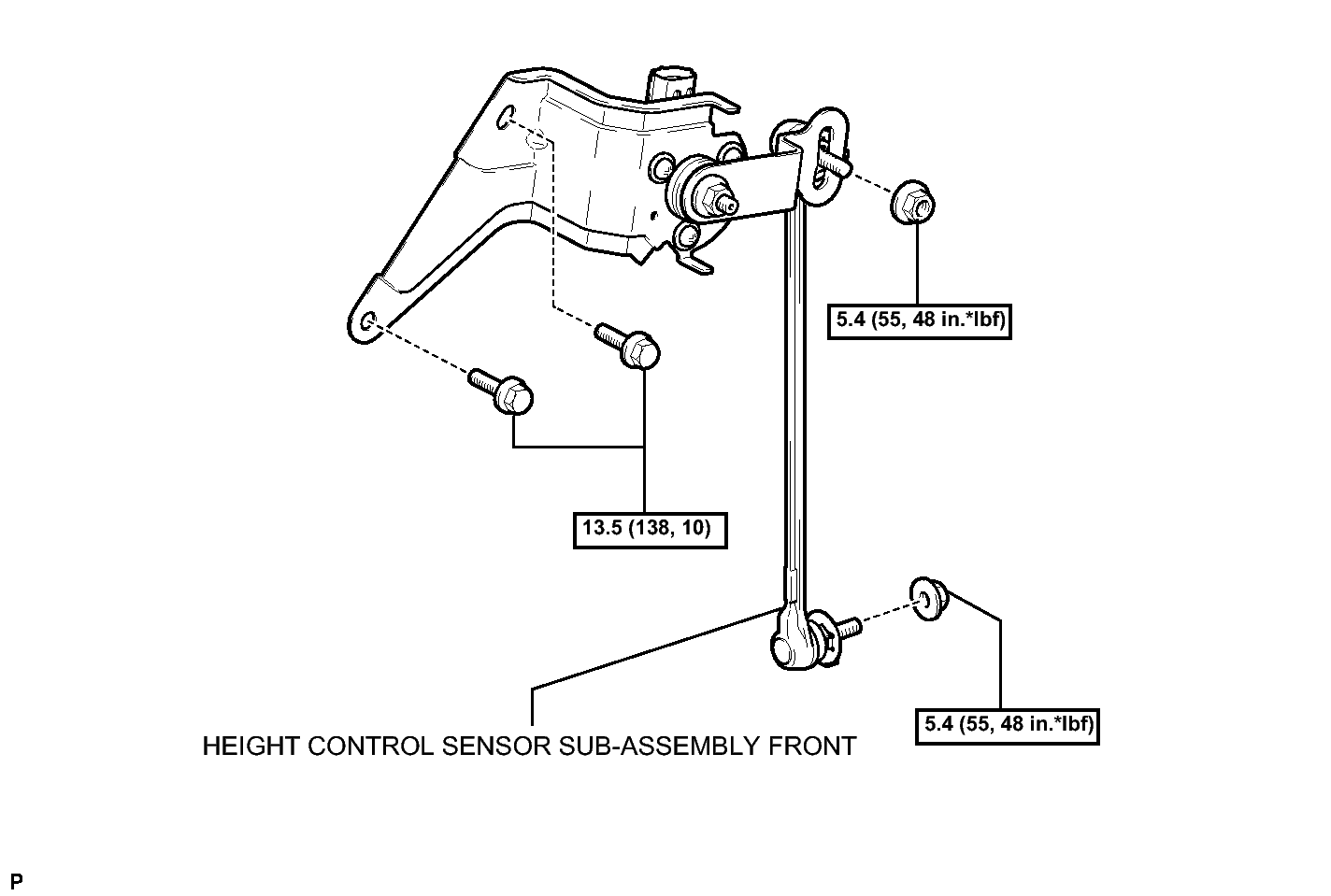

Fig 1: Identifying Height Control Sensor Replacement Components With Torque Specification (1 Of 2)
GTY117804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

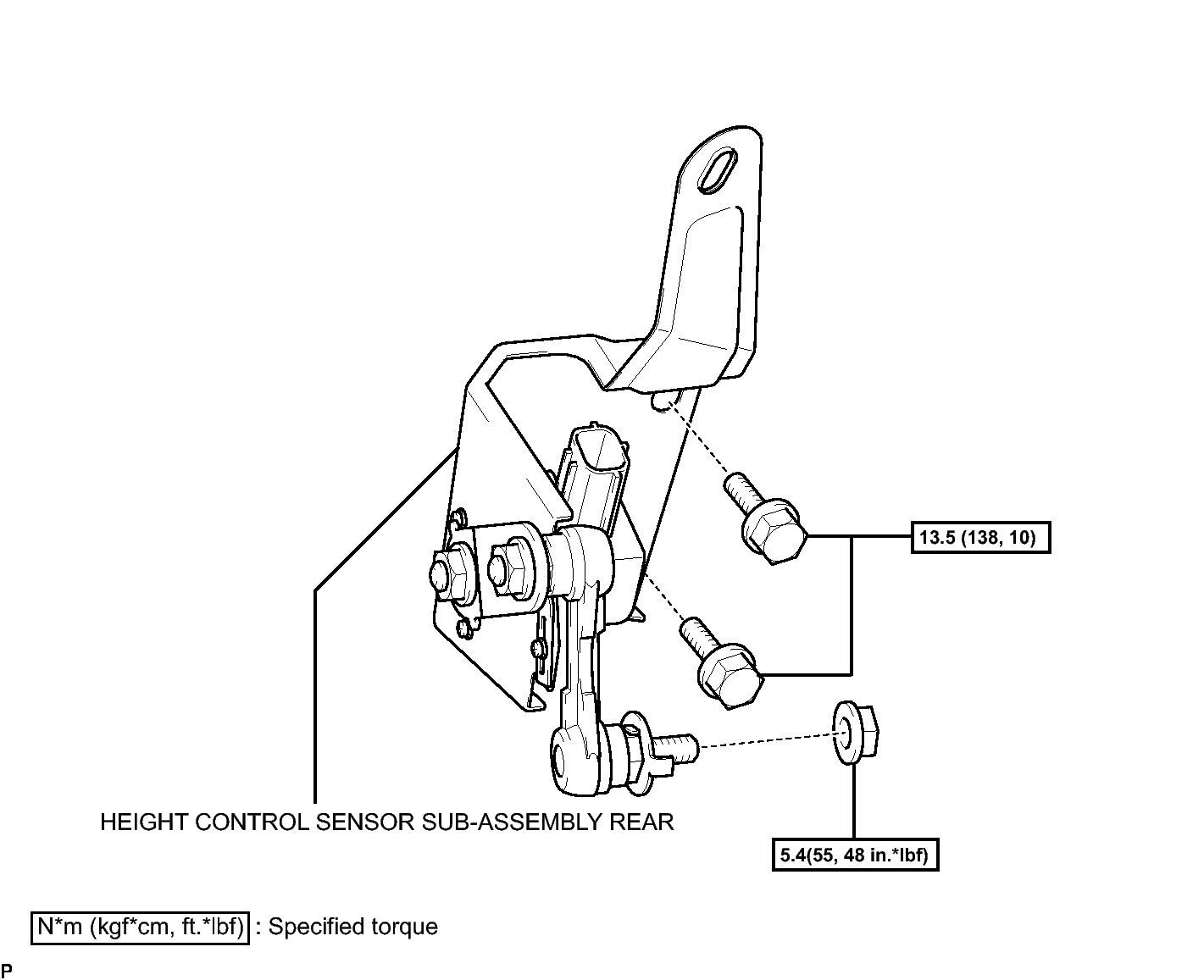

Fig 1: Identifying Height Control Sensor Replacement Components With Torque Specification (2 Of 2)
GTY114273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
