Front Evaporator Temperature Sensor: Components

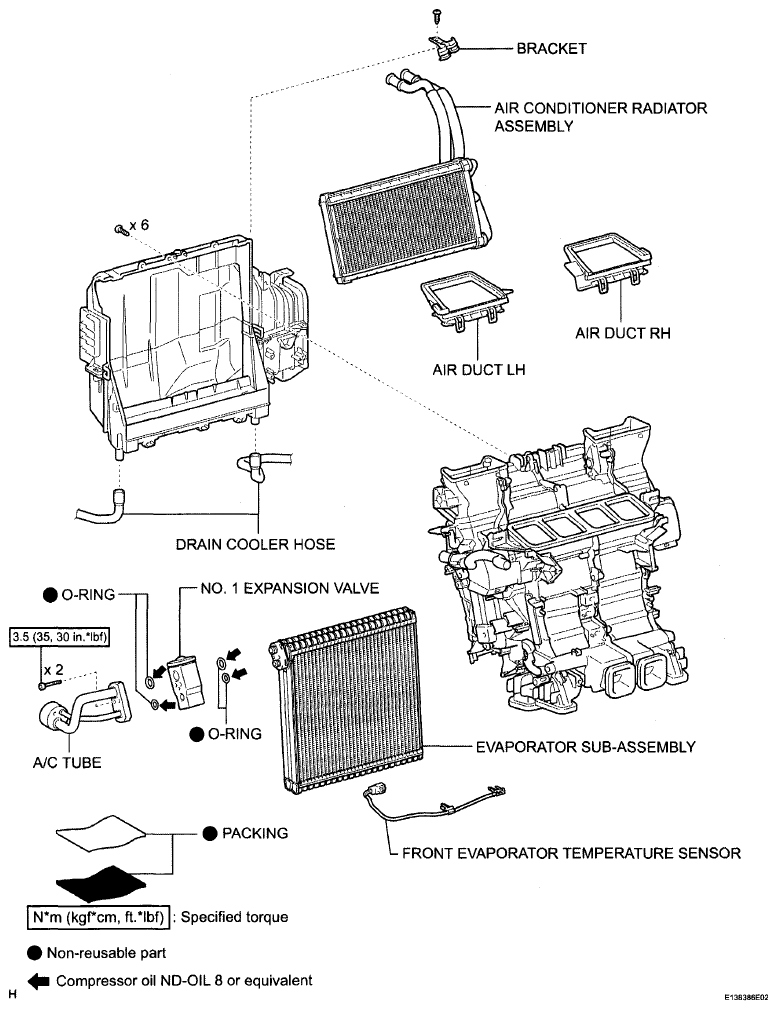

Fig 1: Identifying Front Evaporator Temperature Sensor Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Front Evaporator Temperature Sensor Replacement Components (2 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
