Steering Pad: Components

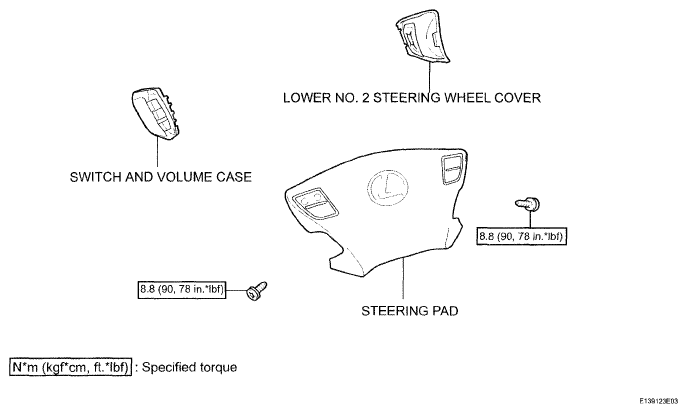

Fig 1: Steering Pad Replacement Components With Torque Specifications
G04951145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
