Front Seat Inner Belt Assembly: Components

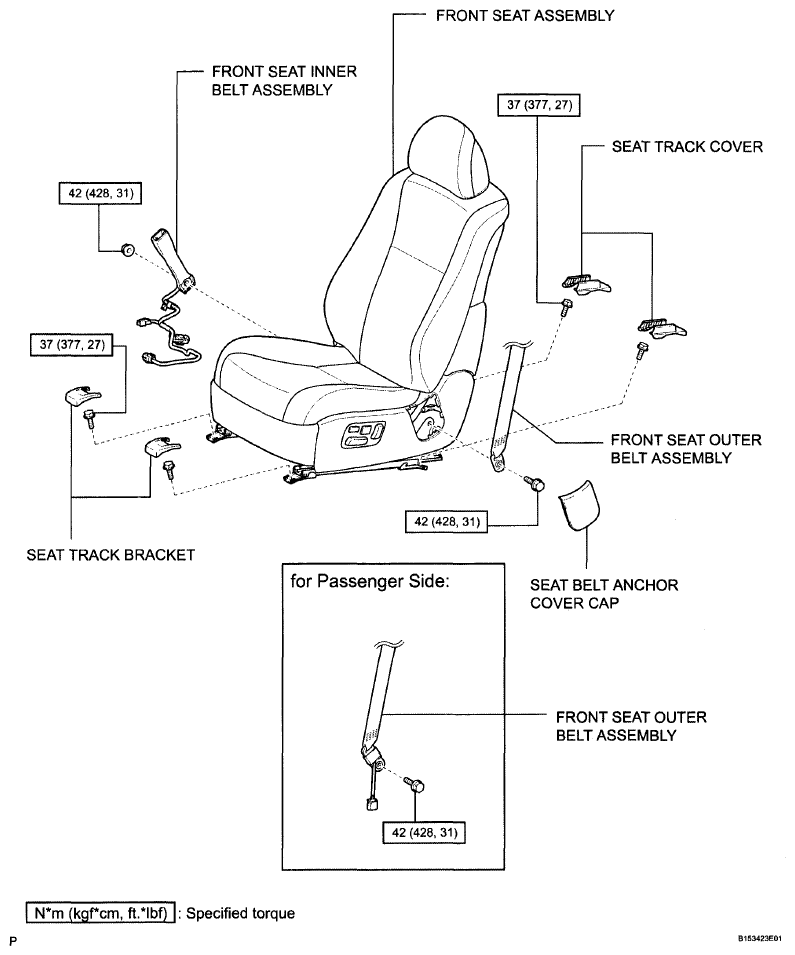

Fig 1: Front Seat Inner Belt Assembly Replacement Components With Torque Specifications
G06188669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
