Suspension - Service Information
›
Rear Lower Arm
›
Components
Rear Lower Arm: Components

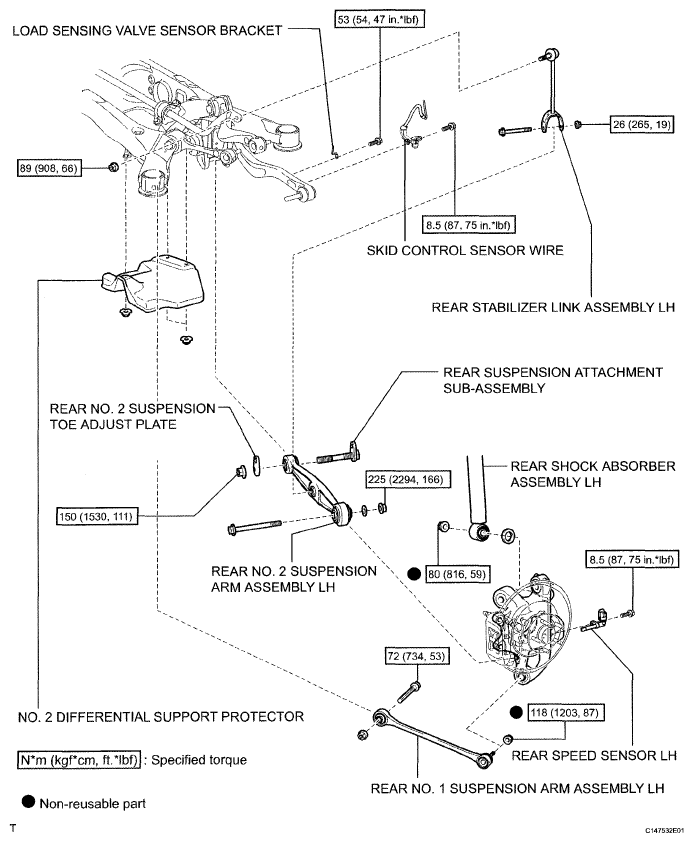

Fig 1: Rear Lower Arm Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
