Rear Upper Arm
›
Components
Rear Upper Arm: Components

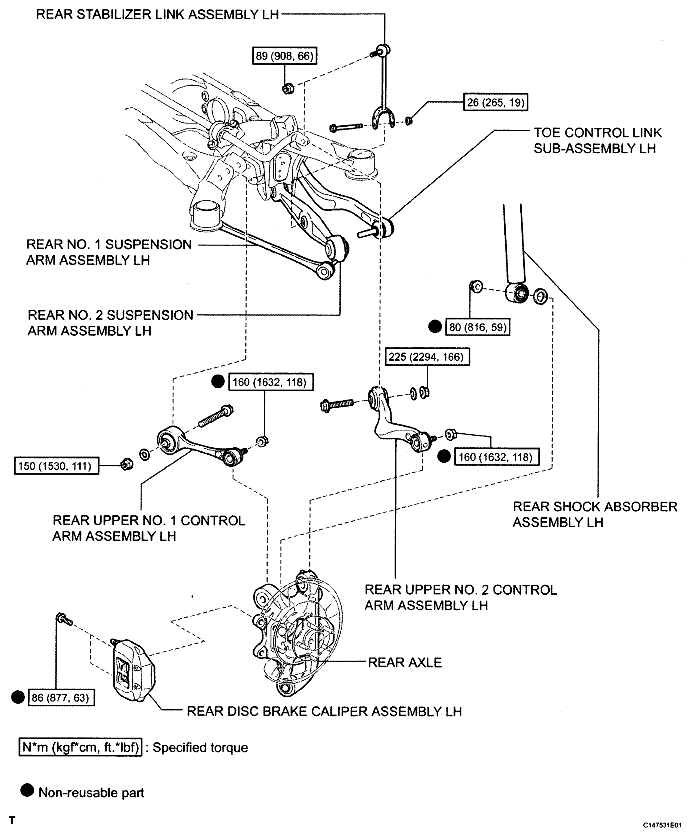

Fig 1: Rear Upper Arm Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
