Exhaust Pipe: Components

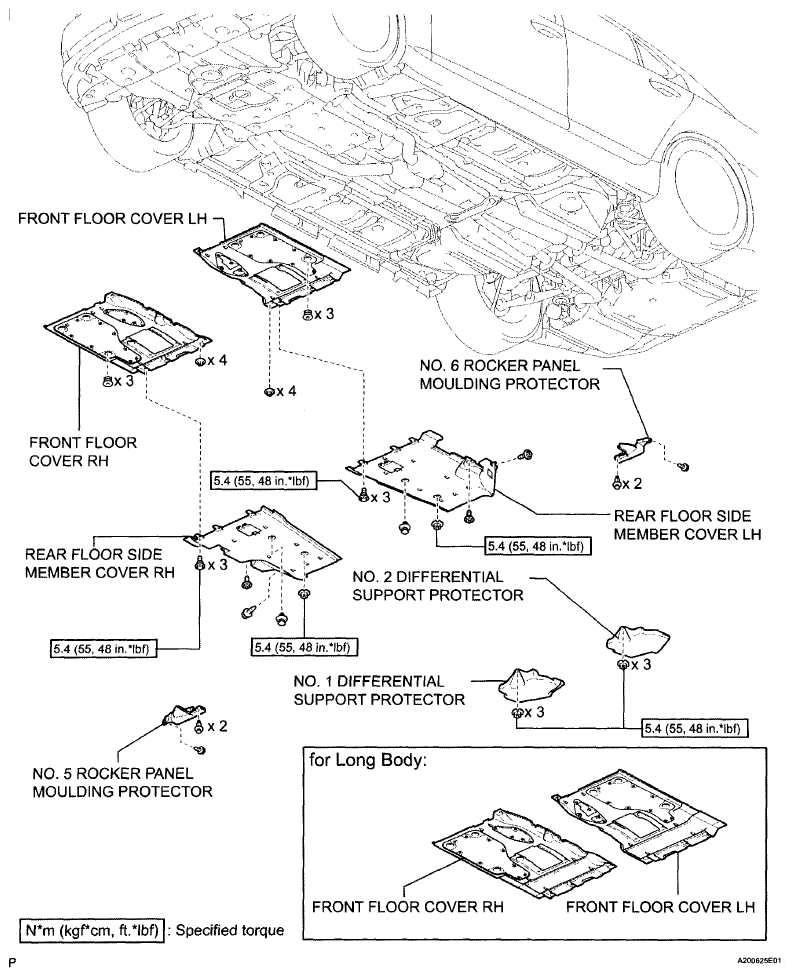

Fig 1: Floor Cover Replacement Components With Torque Specifications
G06196302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (1 Of 2)
G06196303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Exhaust Pipe Replacement Components With Torque Specifications (2 Of 2)
G06196304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
