Engine Control System - System Testing; Component Inspection, Removal & Installation
›
Accelerator Pedal
›
Components
Accelerator Pedal: Components

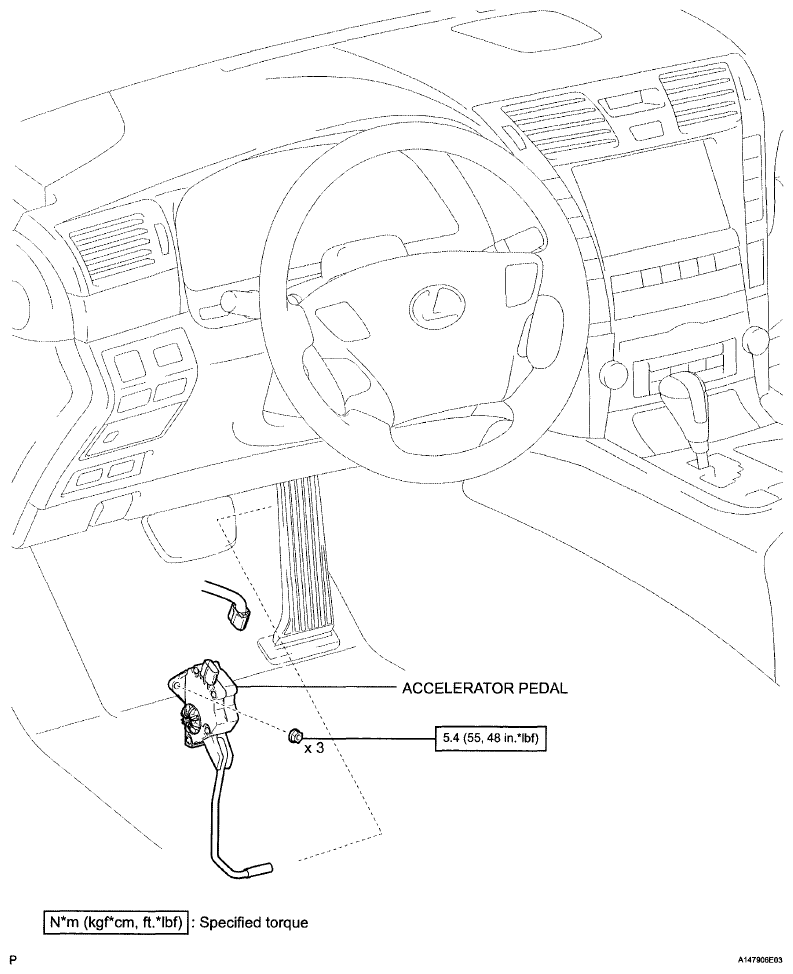

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
