VVT Sensor: Components: Illustration

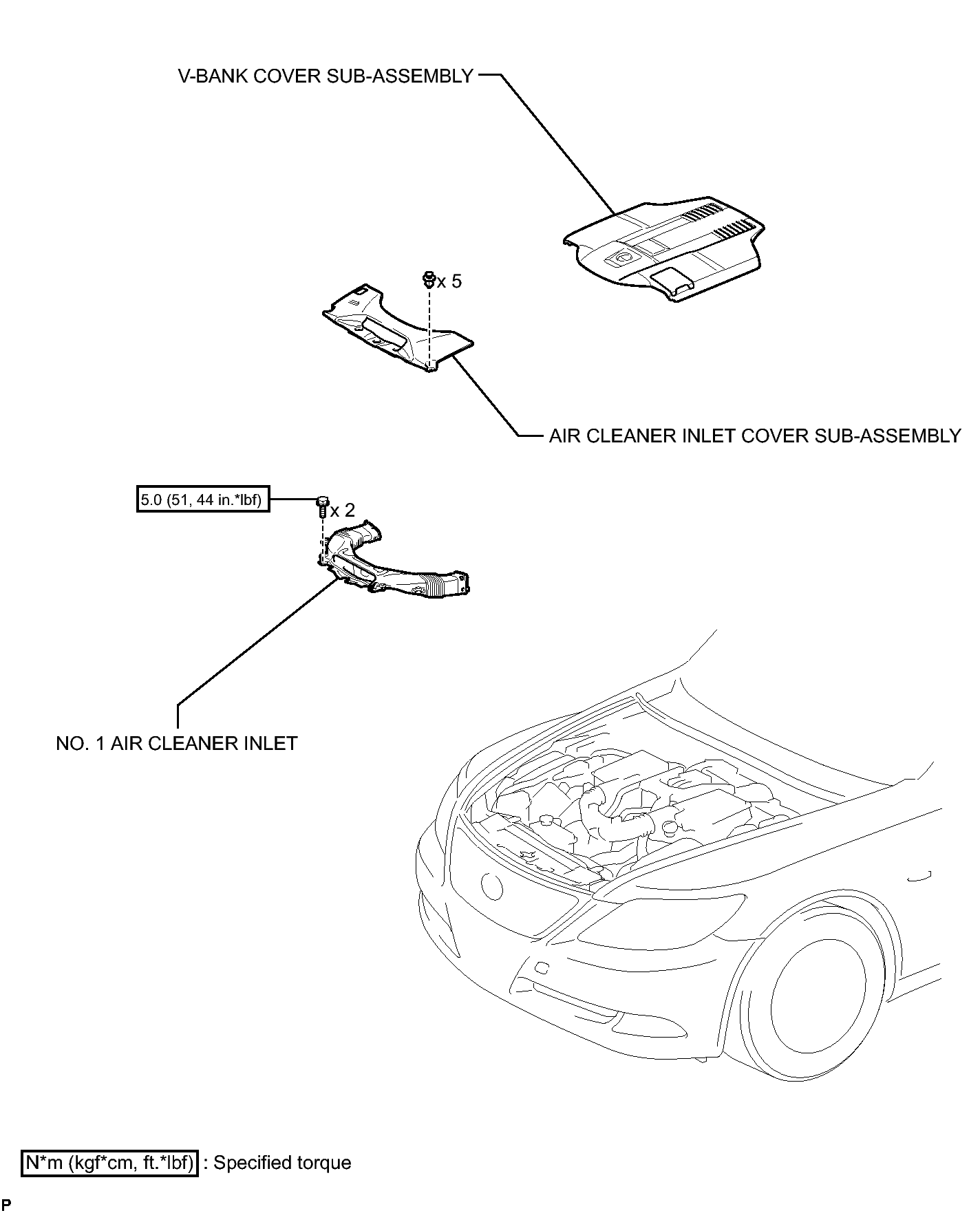

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY147892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

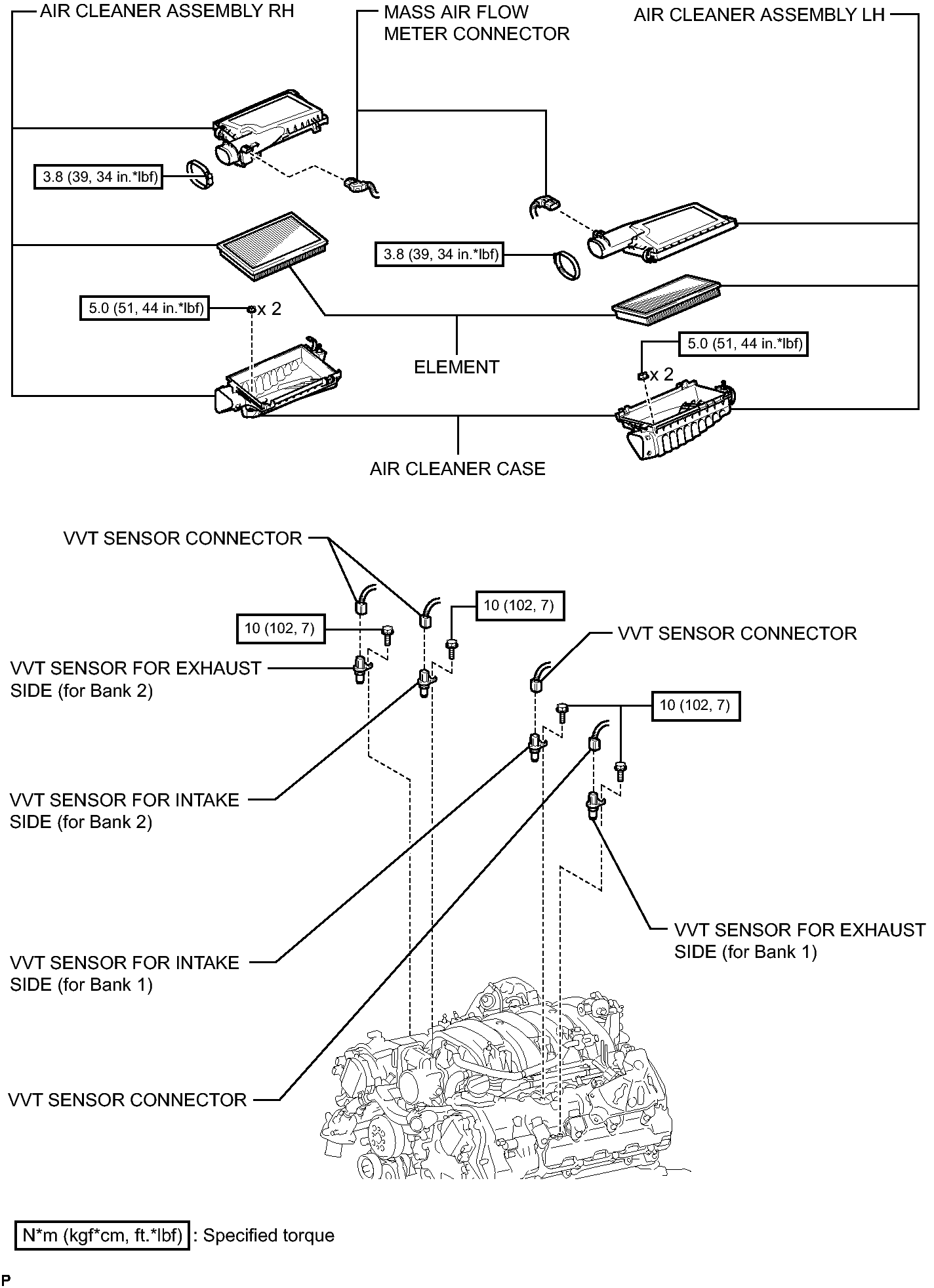

Fig 1: Identifying VVT Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY124723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
