Rear View Monitor System (Diagnostics)
›
Rear View Monitor System
›
System Diagram
›
System Diagram
System Diagram

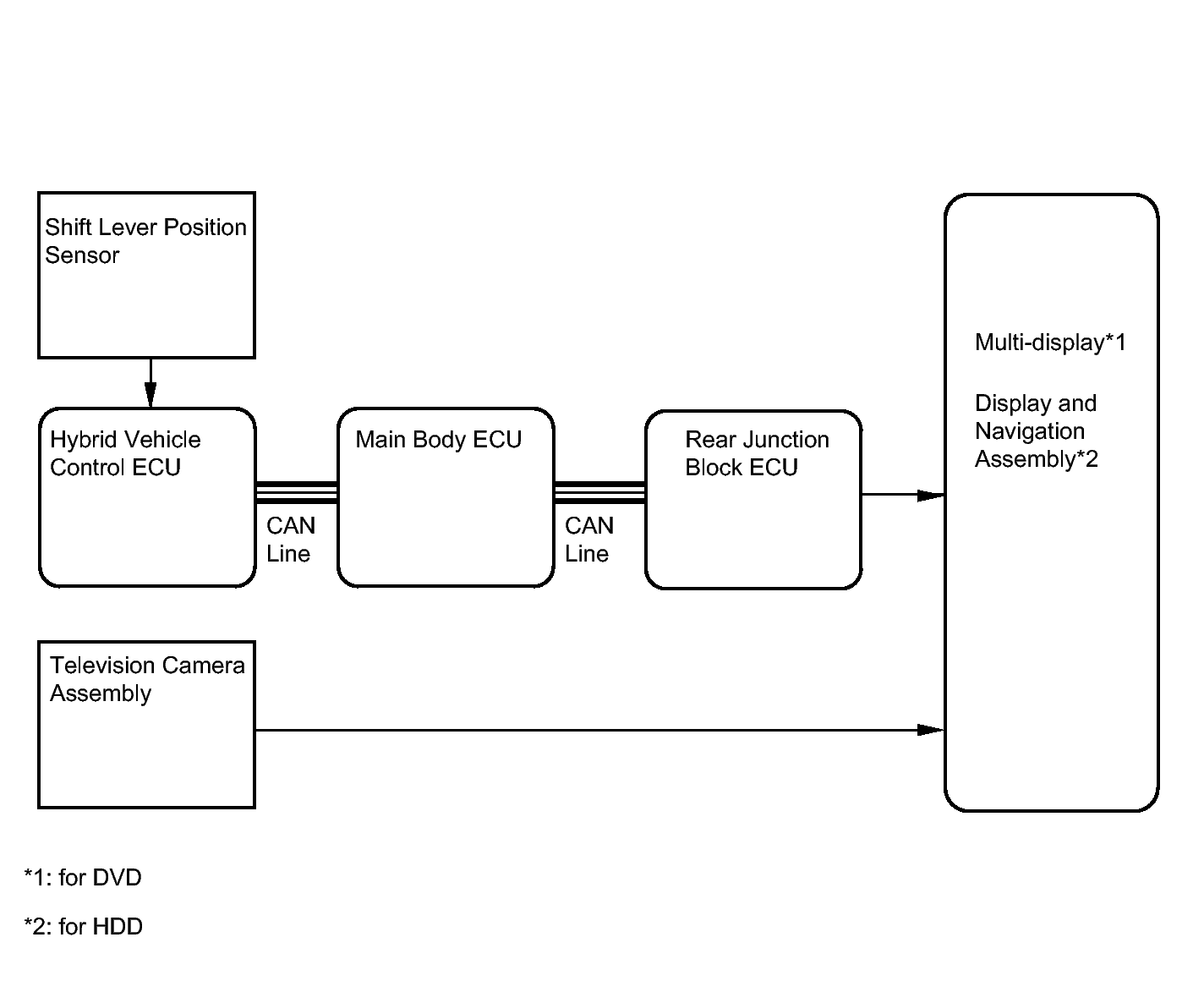

Fig 1: Rear View Monitor - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE
Sender
Receiver
Signal
Line
Hybrid vehicle control ECU
Rear junction block ECU
Shift position switch signal
CAN
